Product Details:
Payment & Shipping Terms:
|
| Package Style: | ABS Box,Mini Steel Tube,LGX Cassette,Rack Mounted Type | Configuration Type: | 1x2,1x4,1x8,1x16,1x32,1x64 |
|---|---|---|---|
| Connector: | SC,LC,FC,ST Or Customzied | Fiber Type: | G657A1 Or G657A2 |
| Cassette Material: | ABS Or PC+ABS | Operation Wavelength: | 1260nm~1650nm |
| Highlight: | fiber optic plc splitter,fiber optic cable splitter |
||

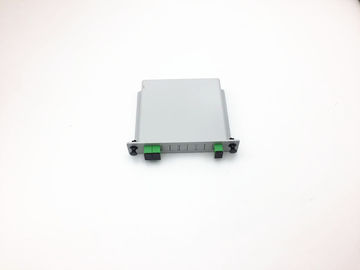

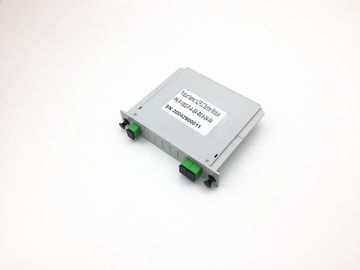

Plug-in Type PLC Splitter Cassette 1x2 optical fiber splitter SC/APC connector,China PLC splitter manufacture | UNIFIBER
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products different package of 250um bare fiber type,0.9mm MINI steel tube type, ABS box type, Rack Mounted type, Cassette type for options.
FEATURES
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
APPLICATION
FTTX (FTTH, FTTB,FTTU and more) Network
Access Network,EPON,GPON or WDM-PON
Optical communication systems
CATV system
Specification
| Items | Value |
| Fiber type | G657A or G652 |
| Connector type | SC / FC / LC |
| Size | 130*100*25mm |
| Working wavelength | 1260*1650nm |
| Test wavelength | 1310&1490&1550nm |
| Insertion loss | ≤10.5dB |
| Channel uniformity | ≤0.8dB |
| Polarization dependent loss (PDL) | ≤0.2dB |
| Directivity | ≥55dB |
| Return loss | ≥55dB(APC);≥50dB(UPC) |
| Repeatability | ≤0.1dB |
| Interchangeability | ≤0.2dB |
| Operating temperature | -40 to 85 degree |
