Product Details:
Payment & Shipping Terms:
|
| Package Style: | ABS Box,Mini Steel Tube,LGX Cassette,Rack Mounted Type | Configuration Type: | 1x2,1x4,1x8,1x16,1x32,1x64 |
|---|---|---|---|
| Connector: | SC,LC,FC,ST Or Customzied | Fiber Type: | G657A1 Or G657A2 |
| Cassette Material: | ABS Or PC+ABS | Operation Wavelength: | 1260nm~1650nm |
| High Light: | fiber optic plc splitter,fiber optic cable splitter |
||

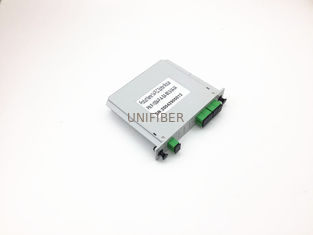

Cassette PLC Splitter 1x4 Card Inserting LGX module with SC/APC connector, China optical splitter supplier | UNIFIBER
UNIFIBER provides whole series of 1xN and 2xN Planar lightwave circuit (PLC) splitter with different package of 250um bare fiber type,0.9mm MINI steel tube type, ABS box type, Rack Mounted type, Cassette type for options.it is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
FEATURES
High reliability
Excellent environmental stability
Compact size and various package
Low Insertion loss and Low PDL
Uniform power splitting
APPLICATION
Optical communication systems
CATV system
FTTX (FTTH, FTTB,FTTU and more) Network
Access Network,EPON,GPON or WDM-PON
Specification
| Items | Value |
| Fiber type | G657A or G652 |
| Connector type | SC / FC / LC |
| Size | 130*100*25mm |
| Working wavelength | 1260*1650nm |
| Test wavelength | 1310&1490&1550nm |
| Insertion loss | ≤10.5dB |
| Channel uniformity | ≤0.8dB |
| Polarization dependent loss (PDL) | ≤0.2dB |
| Directivity | ≥55dB |
| Return loss | ≥55dB(APC);≥50dB(UPC) |
| Repeatability | ≤0.1dB |
| Interchangeability | ≤0.2dB |
| Operating temperature | -40 to 85 degree |
