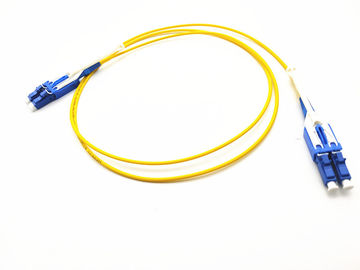

Polarity Reverse LC Uniboot Patch Cord Fiber Optic Single Mode With Push - Pull Tab

Name: Polarity Reverse LC Uniboot Patch Cord Fiber Optic Single Mode With Push - Pull Tab
Brand: UNIFIBER or OEM
SKU: Uniboot LC
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (100 reviews)

Large Image : Polarity Reverse LC Uniboot Patch Cord Fiber Optic Single Mode With Push - Pull Tab

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER or OEM
Certification:	ROHS
Model Number:	Uniboot LC

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3-5days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Connector:	Uniboot LC	Fiber Mode:	Single Mode, OM3, OM4,OM5
Fiber:	G652D G657A	Jacket:	PVC,LSZH,OFNR
Length:	1,3,5..Customized	Application:	High Density Cabling
High Light:	fiber optic jumper cables , fiber optic network cable

Polarity Reverse LC Uniboot Patch Cords with push-pull tab,Uniboot duplex LC connector | UNIFIBER data center solution

The LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.In UNIFIBER, all sorts of uniboot LC cables are available. It can be customized with fiber types and cable diameters.

Features:
optional push/pull tab
Flexible plenum rated jacket
Bend insensitive fiber on all Multimode fibers, optional for Single Mode fibers
Available in OM3, OM4 and OS2
Custom lengths, jacket colors and labeling optionsUniboot (one boot) design

Easily switch polarity without tools or damage to fiber

Application:

Data center ultra high-density cabling

Fiber optic communication networks

Optical access network

Telecommunication networks

Connector	LC to LC Uniboot Polarity Reversible	Jacket OD	3.0mm
Fiber Mode	OS2 9/125um	Jacket Color	Yellow/Aqua / Violet / Purple
Polish	UPC to UPC	Wavelength	1310/1550nm or 850/1300nm
Fiber Type	Duplex	Jacket Material	LSZH / PVC / OFNP
Insertion loss	≤0.3dB	Attenuation at 850nm	3.0 dB/km
Return loss	≥30dB	Attenuation at 1300nm	1.0 dB/km
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Polarity	A(Tx) to B(Rx)	Minimum Bend Radius	30 mm

Polarity Reverse LC Uniboot Patch Cord Fiber Optic Single Mode With Push - Pull Tab 0
