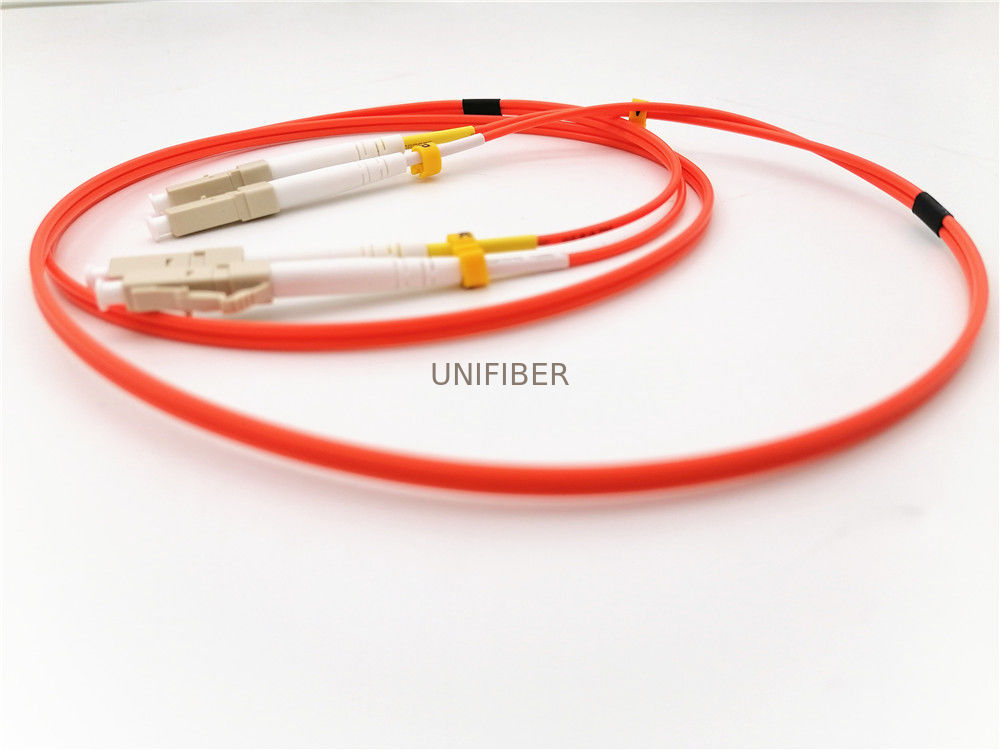

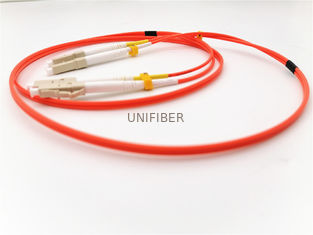

Duplex LC To LC Multimode 50/125um Fiber Patch Cable

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

Duplex LC To LC Multimode 50/125um Fiber Patch Cable

Duplex LC To LC Multimode 50/125um Fiber Patch Cable
Duplex LC To LC Multimode 50/125um Fiber Patch Cable Duplex LC To LC Multimode 50/125um Fiber Patch Cable

Large Image :  Duplex LC To LC Multimode 50/125um Fiber Patch Cable

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: Duplex LC To LC Multimode 50/125um Fiber Patch Cable
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3-5days
Payment Terms: Western Union, T/T
Supply Ability: 10000PCS/DAY
Detailed Product Description
Connector: LC SC FC ST Fiber Count: Simplex Or Duplex
Cable Jacket: PVC/LSZH/OFNR/OFNP Cable Diameter: 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Fiber: OM1(62.5/125um) Or OM2(50/125um) Color: Orange
Product: Duplex LC To LC Multimode 50/125um Fiber Patch Cable Length: 1m 2m 3m 4m 5m Or Others
High Light:

2.0mm fiber optic cable patch cord

,

5 meters fiber optic patch cord

LC to LC multimode duplex fibre patch leads OM1(62.5/125) 2.0mm PVC/OFNR/LSZH orange color 1/3/5 meters

The OM1(62.5/125) and OM2(50/125) multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.



FEATURES

Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Excellent mechanical endurance
Good in repeatability
Good in exchange
Green Production, CE, RoHS Standard


APPLICATION

CATV

Active dvice termination

Telecommunication networks

Metro

Local Area Networks(LANs)

Data Processing networks

Test Equipment

Premise installations.

Wide Area Networks(WANs)





Parameters

Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -25℃ to +70℃
Storage Temp. -40 to +85
