Product Details:
Payment & Shipping Terms:
|
| Fiber Count: | Simplex | Cable Jacket: | PVC/LSZH/OFNR |
|---|---|---|---|
| Connector Type: | FC/SC/LC/ST | Cable Color: | Yellow/Orange/Aqua Or Customized |
| Diameter: | 1.2/1.6/2.0/3.0mm | Fiber: | G652D G657A |
| High Light: | 1.6mm fiber optic patch leads,aqua G657A1 optical patch cord |
||

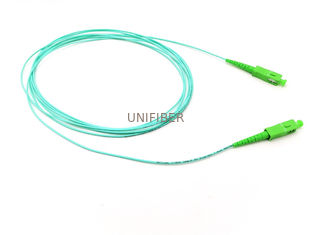

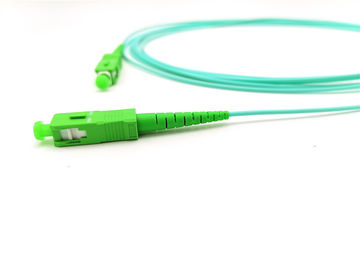

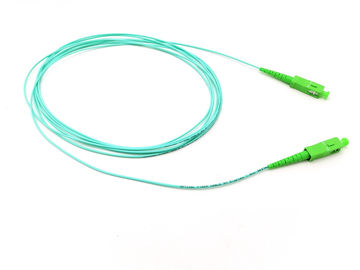

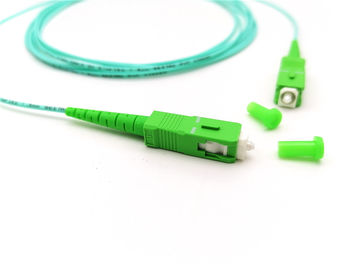

1.6mm OD SC/APC to SC/APC patch cords aqua G657A1 single mode simplex 3 mtrs for data center high density cabling
The 1.2mm/1.6mm patch cord normally to be used where is limited space, it as other standard patch cable jacketed with PVC/LSZH and then completed with SC. ST. FC or LC connectors. It provides a stable and reliable connection both SM or MM and single or dual fiber. PC, UPC and APC is optional.any color would be ok.
Features
Low Insertion Loss
High return Loss
High stability and reliability
Superior quality standard PC/UPC/APC polishing;
100% factory test (Insertion Loss & Return Loss);
0.9mm,1.2mm,1.6mm, 2.0mm and 3.0mm cable optional.
Application:
Data Center hight density cabling
Optical Fiber Communication System
FTTH,LAN,PON & Optical CATV.Telecom
Optical Fiber Test Equipment
Technical Parameters:
| Mode | Singlemode |
| Connection Style | Simplex |
| Connectors | SC APC to SC APC |
| Diameter | 1.2/1.6/2.0/3.0mm |
| Fiber | 9/125um |
| Polish Type | APC |
| Typical Insertion Loss | ≤ 0.20 dB |
| Maximum Insertion Loss | ≤ 0.30 dB |
