Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: 1X2FBT+1x4PLC
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Individual blister Case or Carton Box
Delivery Time: 5~8 business days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Package Style: ABS Box,Mini Steel Tube,LGX Cassette Configuration Type: 1x2,1x4,1x8,1x16,1x32,1x64
Connector: SC,LC,FC,ST Or Customzied Pigtail Length: Customized
FIber Type: G657A1 Wavelength: 1260~1650nm
High Light:

SC/APC Optical Splitter

,

1x4 Optical Splitter

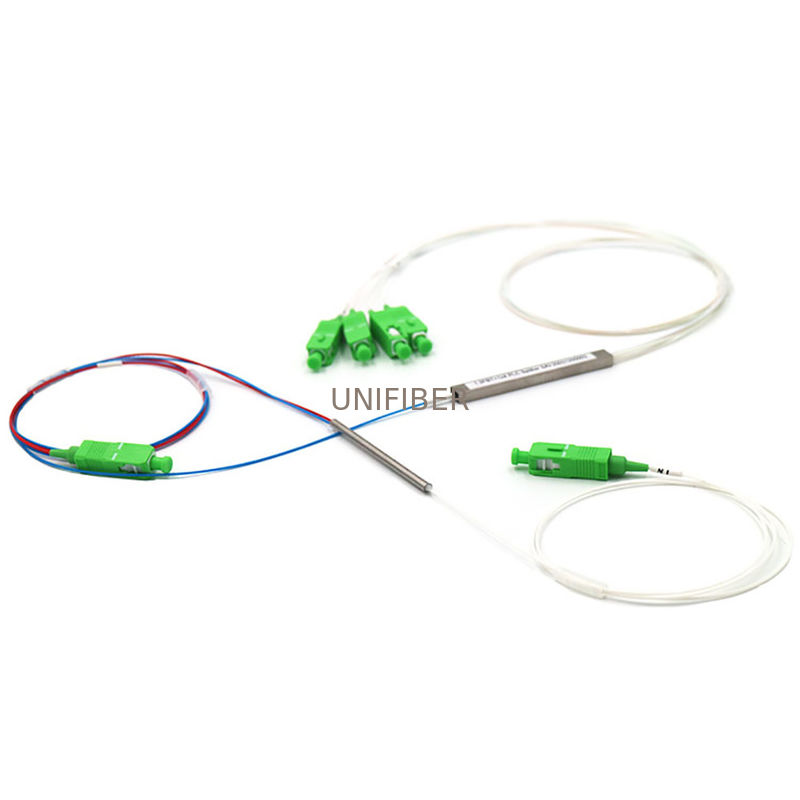

1X2 FBT coupler 50/50 splitting ratio + 1x4 optical splitter PLC SC/APC

The unbalanced 1x2 FBT coupler + 1x4 balanced steel tube PLC splitter Hybrid type major for using in the FTTA applications, it can be much commercial and affordable solution for unblance light divide.The PLC splitter we offer are:1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x4, 2x8, 2x16, 2x32, 2x64 PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.



FEATURES

Excellent Environmental Stability
Excellent Mechanical

Good uniformity and low insertion loss
Low Polarization Dependent Loss
Stability Telcordia GR-1221 and GR-1209



APPLICATION

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Local area networks (LAN)

Passive optical networks(PON)

Cable television (CATV)





Specification

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x4 1x8 1x16 2x4 2x8 2x16 1x32 2x32 1x64
Insertion Loss (dB) Max. * <7.3 <10.4 <13.5 <7.6 <11.2 <14.5 <16.2 <18.2 <20.5
Uniformity (dB) Max.* <0.8 <1.0 <1.5 <1.0 <1.5 <2.0 <2.0 <2.5 <2.5
PDL(dB)Max.* <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.3
Directivity (dB) Min * 55
Return Loss (dB) Min * 55(50)
Operating Temperature (°C) -5~ +75
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or custom length
Fiber Type Corning SMF-28e fiber
Connector Type Custom specified
Power Handling (mW) 300
