Product Details:
Payment & Shipping Terms:
|
| Fiber Counts: | 2~48core | Fiber Mode: | Singlemode/multimode/OM2/OM3/OM4 |
|---|---|---|---|
| Cable Structure: | 0.9mm Tight Buffer Distribution Cable | Application: | Indoor Multi Purpose Distribution |
| Materiail: | PVC/LSZH/PE | Color: | Yellow/Orange/Aqua |
| High Light: | G657A1 Optical Distribution Fiber Cable,GJFJV Buffered Single Mode Cable |
||

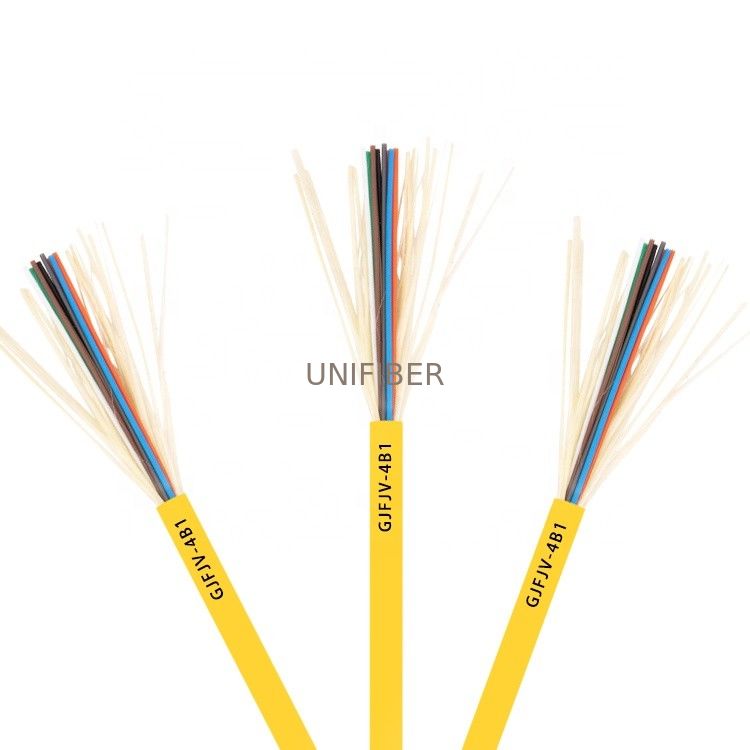

Optical distribution fiber cable 4/6/8/10 core, G657A1 single mode indoor GJFJV tight buffered aramid yarn LSZH jacket
GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Features:
Good mechanical and environmental characteristics
Soft,flexible,easy to lay and splice,and with big capacity data transmission
The mechanical characteristics of jacked meet the requirements of relevant standards
Meet various requirements of market and clients.
Flame retardant characteristics meet the requirements of relevant standards
Application:
Used in pigtails and patch cords
Used in indoor cabling,especially used as distribution cable
Used as interconnect lines of equipments,
used in optical connections in optical communication rooms and optical distribution frames
| Technical parameters | |||||||||||
| cable count | out sheath diameter | Tight buffer diameter | Weight | Minimum allowable Tensile strength(N) |
Minimum allowable Crush load(N/100mm) |
Min bending radius(MM) |
Suitable temperature |
||||
| (core) | (MM) | (MM) | (KG) | short term |
long term |
short term |
long term |
short term |
long term |
(℃) | |
| 02 | 3.0 | 0.9 | 15.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 04 | 4.0 | 0.9 | 22.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 06 | 4.0 | 0.9 | 23.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 08 | 5.0 | 0.9 | 27.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 10 | 5.5 | 0.9 | 30.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 12 | 6.0 | 0.9 | 35.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 24 | 7.0 | 0.9 | 40.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 48 | 8.5 | 0.9 | 48.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
