5.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable

China Shenzhen Unifiber Technology Co.,Ltd certification
China Shenzhen Unifiber Technology Co.,Ltd certification
I'm Online Chat Now

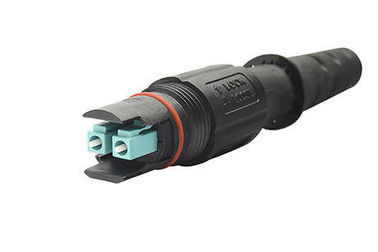

5.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable

5.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable
5.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable 5.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable 5.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable

Large Image :  5.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: mini IP LC
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs/day
Detailed Product Description
Cable Diameter: 4.8mm/7.0mm Cable Jacket: LSZH,PE,TPU,UV Resistance
Cable Length: 1/3/5/10m Or Customized Fiber Count: 2
Fiber: G657A Connectors: Mini IP LC
High Light:

LSZH Patch Cord Optical Fiber

,

Duplex LC Patch Cord

Optitap compatible mini IP LC duplex waterproof fiber optic patch cord 5.0/7.0mm round cable LSZH

Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The end incorporates an Duplex LC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The Duplex LC connectors mate to a standard adapter providing a common interface for FTTX applications.





Feature
Costeffective solution for in house termination.
Low insertion loss and added loss.
Height of attenuation
IP-68 water and dust protection;
The material in the jumpel cable are all-weather and UV-resistant.
Mechanical performance: IEC61754-20
RoHS and REACH materials compliant.Low profile in-line receptacle available;
No installation tools requires;
Factory terminated for high performance;
Accepts 2.0mm to 7.0mm cable diameters;

Application
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
Suitable for FTTA and outdoor temperature extremes;
Ensures functionality in harsh weather environments ;
Can be installs without special tooling;
Provides bend protection for installation and long term use.



Type
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥30dB
≥30dB
Durability
500 mating cycles
Working temperature
-40 to + 85℃

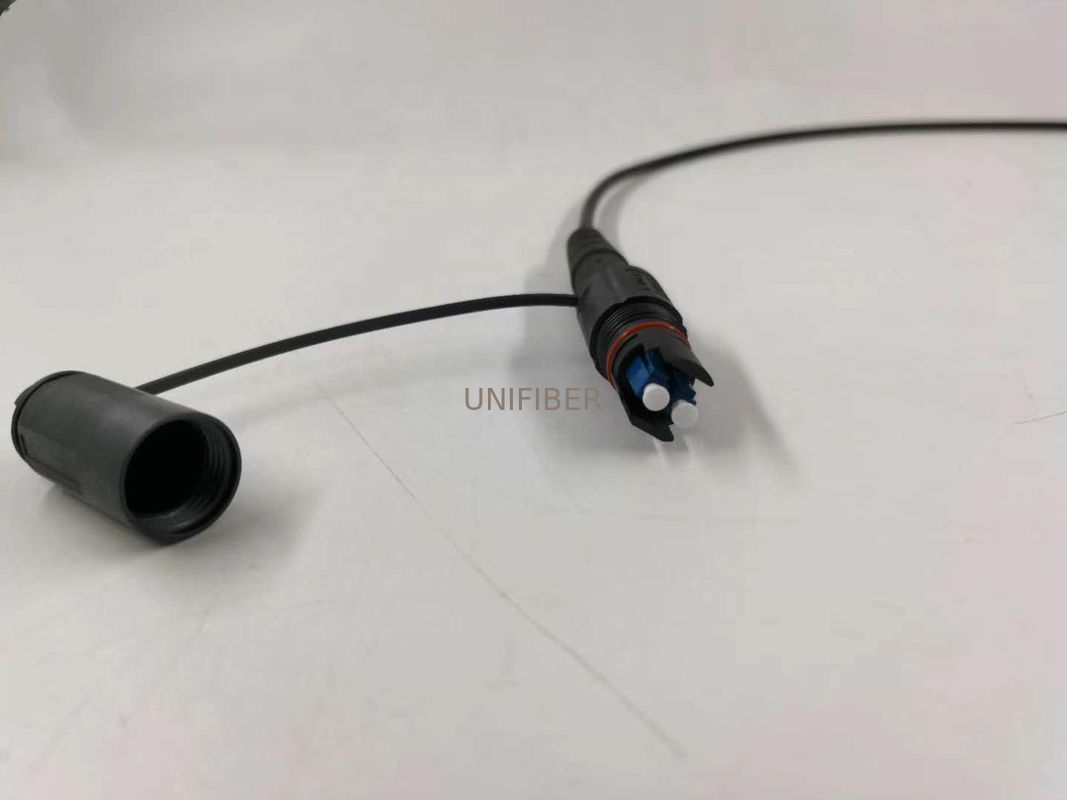

5.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable 05.0/7.0mm LC Duplex LSZH Fiber Optic Patch Cable 1
