| Fiber Count: | 8/12/24/48/72/96/144 | Fiber Type: | SM/MM/OM3/OM4 |
|---|---|---|---|
| Cable Length: | 0.5/1/2/3m Or Customized | Cable Jacket: | PVC,LSZH,Plenum (OFNP) |

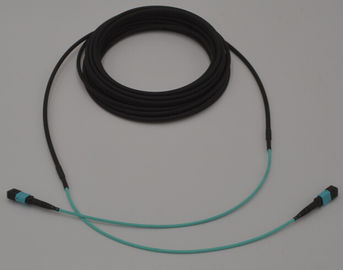

| Highlight: | 5.5mm Double Sheath Trunk Cable,MPO MTP Patch Cable |
||
MTP to MTP patch cable,mtp to mtp cable with mtp apc connector 12 24 strand fo patch cord, data center solution provider
Data communication network
Optical System Access network
High density architectures
Parameters
| MPO Connector | Standard SM MT Ferrule | Low Loss SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |||
| Polish | APC | PC | APC | PC | PC | PC | |
| Insertion Loss(dB) | Typical | 0.5 | 0.5 | 0.3 | 0.3 | 0.5 | 0.3 |
| Maximun | 0.7 | 0.7 | 0.5 | 0.5 | 0.7 | 0.5 | |
| Return Loss(dB) | 60 | 45 | 60 | 45 | 20 | 20 | |
| Exchangeability(dB) | ≤0.3 | ||||||
| Durability(dB) | ≤0.2dB (500 Matings,per EIA-455-21A) | ||||||
| Tensile Strength(dB) | ≤0.3dB (Max 66N) | ||||||
| Operating temperature(℃) | -20~+60 | ||||||
| Storage temperature(℃) | -40~+80 | ||||||
