Product Details:
Payment & Shipping Terms:
|
| Connector: | AARC | Fiber Count: | 2/4 |
|---|---|---|---|
| Jacket: | Blue/black TPU | Waterproof Grade: | IP68 |
| Fiber Mode: | SM/MM | Application: | FTTA |
| Highlight: | FTTA Optical Fiber Patch Cord,AARC Connector Optical Patch Leads |
||

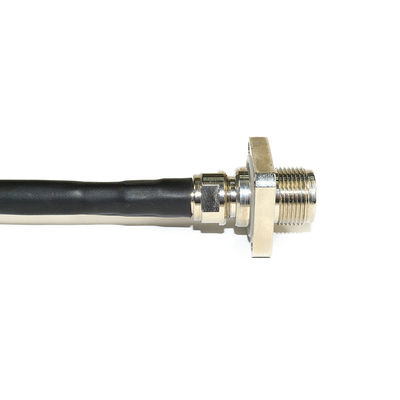

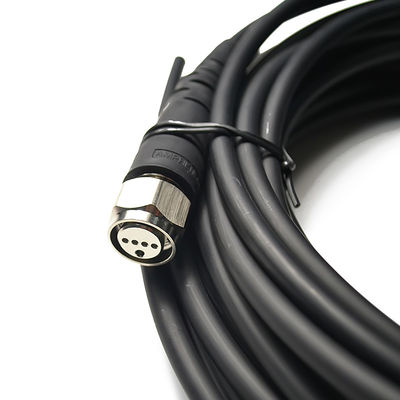

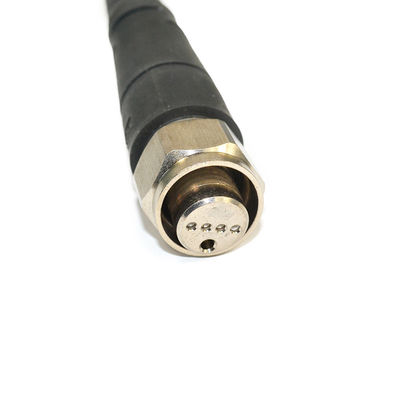

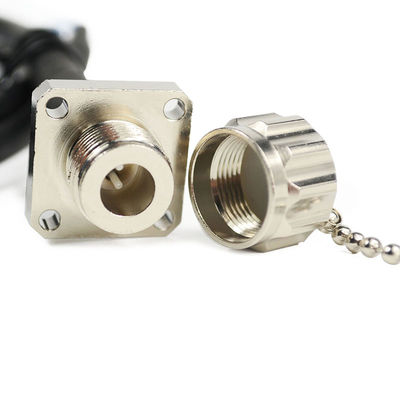

FTTA outdoor waterproof AARC 2/4 fiber plug and receptacle fiber jumper cable
ODC is compatible with most ODC connectors of other brands, it's housing is pure copper and electroplated, rubber or copper boot is optional. It's available for 2cores and 4cores, and the ferrules ports are located with plastic modules technology. The ODC A Cable assemblies have passed testes like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense applications.
Features
Broad temperature range and wide range of indoor and outdoor cables
Bird proof and rodent resistant IP67 water and dust protection
IP68 protection, salt-mist proof and EMI protection
Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
Easy, reliable and cost-effective installation.
High shock, vibration, and mechanical resistance
Application
Intelligent substation
Railway signal control
Outdoor & Military communication equipment connection.
Oil field, mine communication connection.
Far transmission wireless base station.
Video Surveillance system
Optical fiber sensor.
Parameters
| Fiber Core | 2,4 | |||
| Mode | Singlemode | Multimode | ||
| Operating Wavelength(nm) | 1310/1550 | 850/1310 | ||
| Polishment | UPC | APC | UPC | |
| Insertion Loss(Max.dB) | 0.7 | 0.6 | ||
| Return Loss(Min.dB) | 55 | 60 | 35 | |
| Mating times | 500 Min | |||
| Durability(Max.dB) | 0.2 | |||
| Reaptability(Max.dB) | 0.5 | |||
| Operating Temperature(℃) | -40~+85 | |||
| Storage Temperature(℃) | -40~+85 | |||
