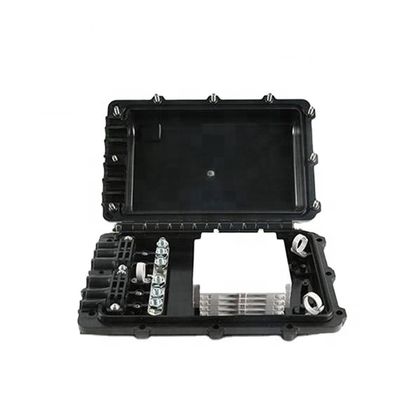

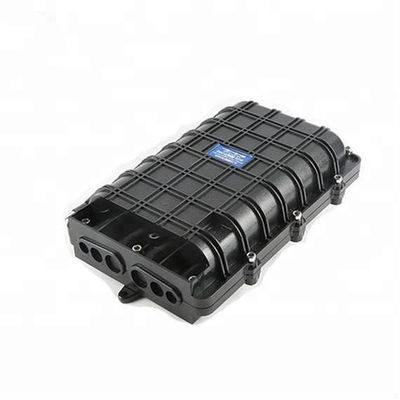

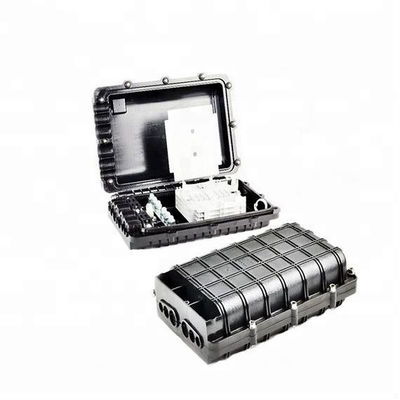

Detailed Product Description
Material: ABS+PC Capacity: 12~120F
Number Of Inlet/outlet Ports: 3 (pieces) On Each Side Performance: Anti-UV, Ultra Violet Resistant And Rainfall Resistant
Outside Dimension (LxWxH): 320×210×85 (mm) Diameter Of Fiber Cable: Φ8—Φ20 (mm)
High Light:

ABS Fiber Optic Joint Closure

,

Aerial Fiber Optic Splice Closure

GJS-H002 Aerial Fiber Optic Joint Closure 12/24 cores

Scope of application

This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.the scope of application is: aerial, underground, pipeline, handhole. The ambient temperature ranges from -40 to 65.



Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (LxWxH) 320×210×85 (mm)
Weight (excluding outside box) 2650g 2800g
Number of inlet/outlet ports 3 (pieces) on each side
Diameter of fiber cable Φ8—Φ20 (mm)
Capacity of FOSC Bunchy: 12120 (Cores)



2.2 Main components

No. Name of components Quantity Usage Remarks
1 Housing 1 set Protecting fiber cable splices in whole

Internal diameter:

240x148x76(mm)

2

Fiber optic splice tray

(FOST)

Max 8 pieces (bunchy)



Fixing heat shrinkable protective sleeve and holding fibers

Suitable for:

Bunchy: 12,24, (cores)

3 Seal fitting 1 set Sealing between FOSC cover and FOSC bottom
4 Port plug 6 pieces Sealing empty ports
6

Pressure

testing valve

1 set After injecting air, it is used for pressure testing and sealing testing Configuration as per requirement
7 Earthing deriving device 1 set Deriving metallic components of fiber cable in FOSC for earthing connection Configuration as per requirement







2.3 Main accessories and special tools

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Desiccant 1 bag Put into FOSC before sealing for desiccating air.
5 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
6 Hanging hook 1 set For aerial use
7 Earthing wire 1 piece Putting through between earthing devices
8 Abrasive cloth 1 piece Scratching fiber cable
9 Labeling paper 1 piece Labeling fiber
10 Special wrench 2 pieces Fixing bolts, tightening nut of reinforced core
11 Measuring paper 1 piece To measure circle, of which its diameter is enlarged with seal tape
12

Buffer tube



To be decided by customers Hitched to fibers and fixed with FOST, managing buffer Configuration as per requirement



Necessary tools for installation

3.1 Supplementary materials (to be provided by operator)

Name of materials Usage
Scotch tape Labeling, temporarily fixing
Ethyl alcohol Cleaning
Gauze Cleaning

3.2 Special tools (to be provided by operator)

Name of tools Usage
Fiber cutter Cutting off fibers
Fiber stripper Strip off protective coat of fiber cable
Combo tools Assembling FOSC

3.3 Universal tools (to be provided by operator)

Name of tools Usage and specification
Band tape Measuring fiber cable
Pipe cutter Cutting fiber cable
Electrical cutter Take off protective coat of fiber cable
Combination pliers Cutting off reinforced core
Screwdriver Crossing/Paralleling screwdriver
Scissor
Waterproof cover Waterproof, dustproof
Metal wrench Tightening nut of reinforced core



3.4 Splicing and testing instruments (to be provided by operator)

Name of instruments Usage and specification
Fusion Splicing Machine Fiber splicing
OT DR Splicing testing
Provisional splicing tools Provisional testing



Notice: The above-mentioned tools and testing instruments should be provided by the operators themselves.
