Product Details:
Payment & Shipping Terms:
|
| Material: | ABS+PC | Capacity: | Bunchy: 12-96 (cores), Ribbon: 144 (cores) |
|---|---|---|---|
| Number Of Inlet/outlet Ports: | 4 Pieces | Performance: | Anti-UV, Ultra Violet Resistant And Rainfall Resistant |
| Outside Dimension (LxWxH): | 320×210×85 (mm) | Diameter Of Fiber Cable: | 8mm~16mm |
| Highlight: | Dome Fiber Optic Splice Closure,FOSC Fiber Optic Closure |
||

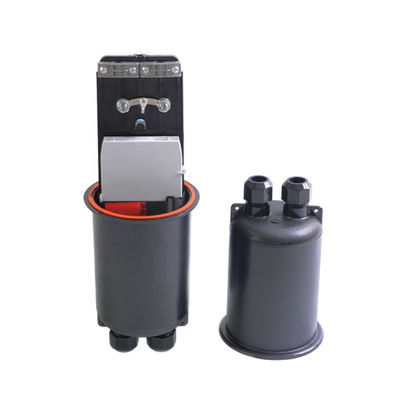

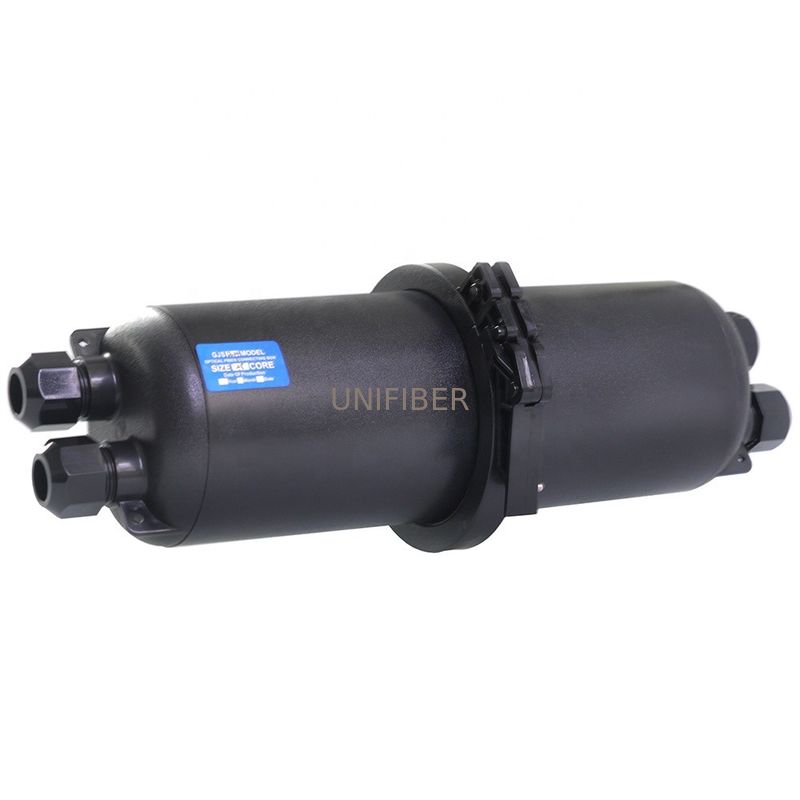

Dome Type FOSC fiber optic closure(GJS-D014)
1. Scope of application
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation. The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40 to 65℃.
2. Basic structure and configuration
2.1 Dimension and capacity
| Outside dimension (Height x Diameter) | 460mm×190mm |
| Weight (excluding outside box) | 2050g—2500g |
| Number of inlet/outlet ports | 4 pieces |
| Diameter of fiber cable | 8mm~16 mm |
| Capacity of FOSC | Bunchy: 12-96 (cores), Ribbon: 144 (cores) |
2.2 Main components
| No. |
Name of components |
Quantity | Usage | Remarks |
| 1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole | Height x Diameter 400mm x 220mm |
| 2 |

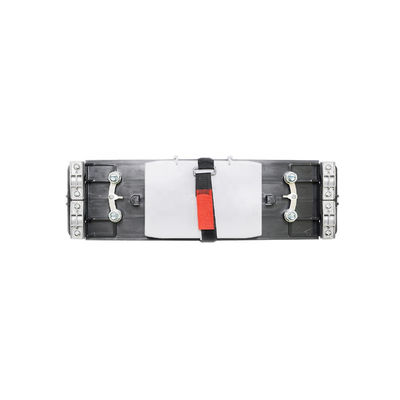

Fiber optic splice tray (FOST) |
Max.:5 trays (bunchy) Max.: 5 trays (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy: 48(cores) Ribbon: 24 (pieces) |
| 3 |
Base |
1set |
Fixing internal and external structure | |
| 4 |
Plastic hoop |
1 set |
Fixing between FOSC cover and base | |
| 5 |
Seal fitting |
1 piece |
Sealing between FOSC cover and base |
2.3 Main accessories and special tools
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 |
Heat shrinkable fixing sleeve (single)
|
Fixing and sealing single fiber cable | Configuration as per requirement | |
| 4 |
Heat shrinkable fixing sleeve (mass)
|
Fixing and sealing mass of fiber cable |
Configuration as per requirement |
|
| 5 | Branching clip | Branching fiber cables |
Configuration as per requirement |
|
| 6 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 7 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. | |
| 8 | Labeling paper | 1 piece | Labeling fibers |
|
