Product Details:
Payment & Shipping Terms:
|
| Material: | ABS+PC | Capacity: | 60F |
|---|---|---|---|
| Entrances: | 5 | Performance: | Anti-UV, Ultra Violet Resistant And Rainfall Resistant |
| Outside Dimension (LxWxH): | 300×220×100 | Diameter Of Fiber Cable: | 8~15 (mm) |
| High Light: | FTTH Wall Mount Fiber Enclosure,60 Core Optical Fiber Closure |
||

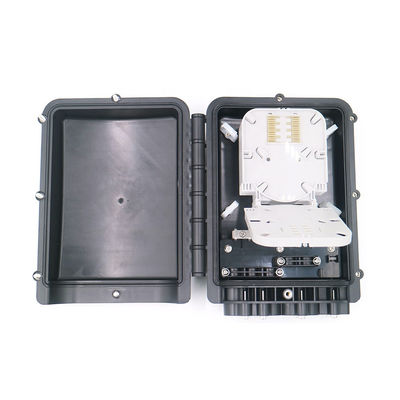

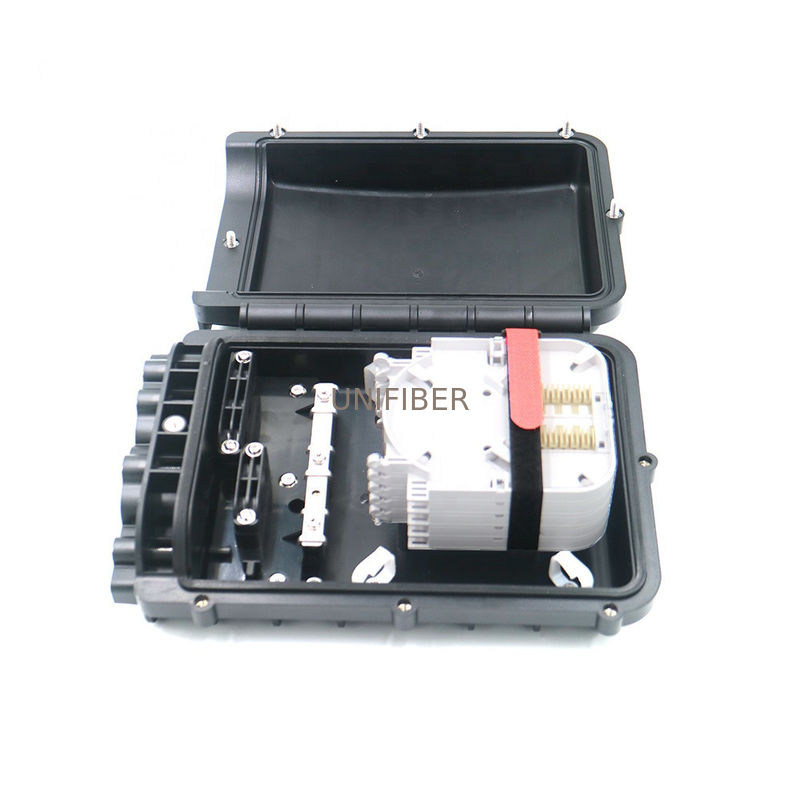

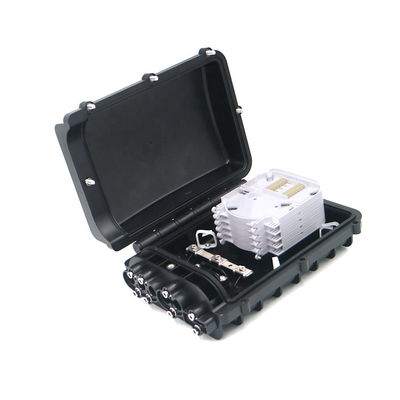

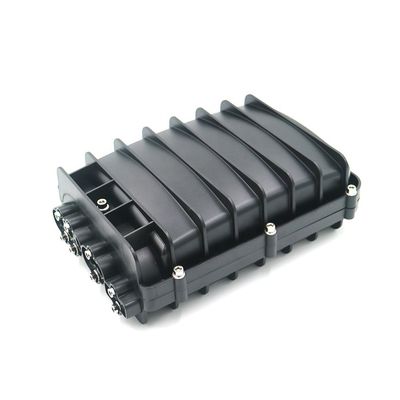

FTTH wall mount optical fiber closure mechanical sealing 60 core
GPJ09-8201 inline closure features 5 branch ports, 1 test port, and 4 drop ports. The patented mechanical sealing method for this joint closure reduces the installation cost and increases the sealing stability. In PON solutions, this horizontal enclosure can be applied to the entrance of up to 24 uncut figure-8 or round cables. 1 piece of 1:8 mini PLC splitter can be installed on each splice tray.
Features:
Small size with numeral cable ports and various functions.
5 regular cable ports, 1 testing port, 4 pigtail outlets.
Unique sealing method obtained the national patent, which greatly reduce operation cost improve the sealing performance and could be reused many times.
Aerial, pole-mounting, Direct buried, and wall-mouing and pipe-lined applications.
| Model No. | GPJ09-8201 | |||
| Style | Hinged | |||
| Dimensions (L×W×H) | 300×220×100 mm | |||
| Material | PP+GF | |||
| Sealing Type | Mechanical Seal | |||
| Protection Grade | IP68 | |||
| Cable Ports | Branch | 5 | Φ8 - Φ15 mm | |
| Test | 1 | Φ6 mm | ||
| Drop | 4 | Φ2 mm | ||
| Fiber Splice Capacity | 60 | |||
| Tray Capacity | 12 | |||
| Tray Count | 5 | |||
| Splitter | 1:8 Mini PLC/ Tray | |||
| Weight | 2.4 - 2.7 kg | |||
| Application | Wall Mounting/ Aerial/ Manhole | |||
| Packing Type | Inner Carton | - | ||
| Outer Carton | 540×340×720 mm (10 PCS) | |||
