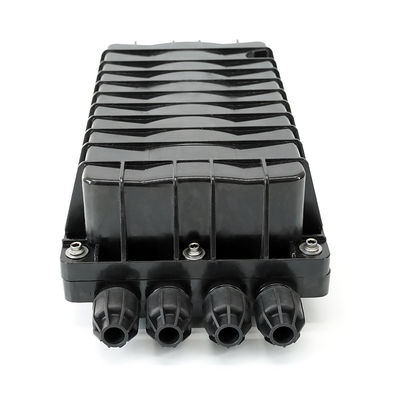

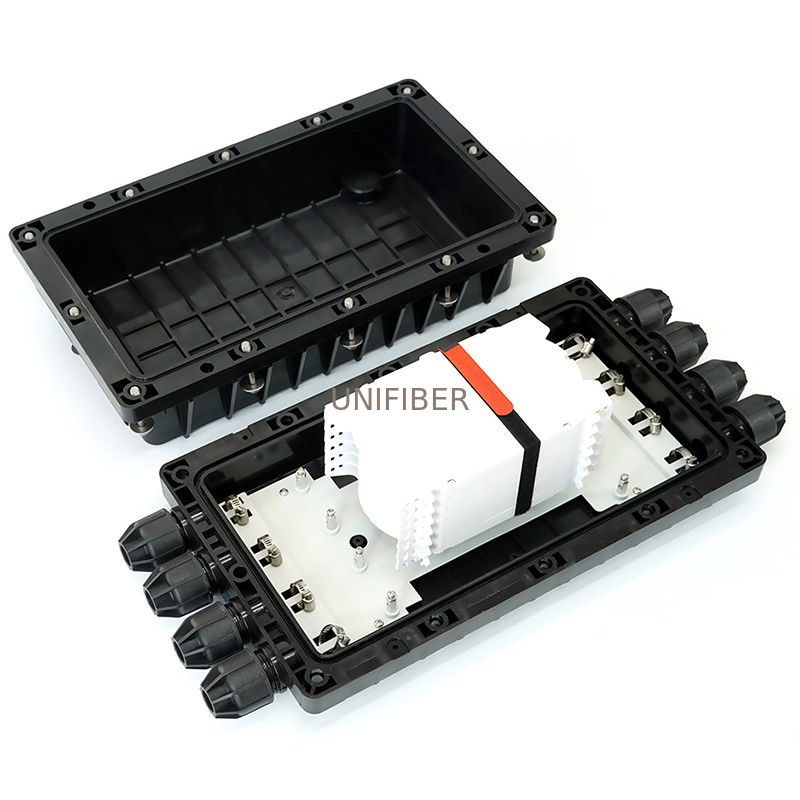

IP68 Mechanical Sealing 288 Core Fiber Optic Splice Closure

IP68 Mechanical Sealing 288 Core Fiber Optic Splice Closure
IP68 Mechanical Sealing 288 Core Fiber Optic Splice Closure IP68 Mechanical Sealing 288 Core Fiber Optic Splice Closure IP68 Mechanical Sealing 288 Core Fiber Optic Splice Closure

Large Image :  IP68 Mechanical Sealing 288 Core Fiber Optic Splice Closure

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER
Certification: ROHS
Model Number: GPJ09-6815-B
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-8days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/day
Detailed Product Description
Material: Polymer Modified Plastics Capacity: 288
Entrances: 4 In 4 Out Performance: Anti-UV, Ultra Violet Resistant And Rainfall Resistant
Outside Dimension (LxWxH): 556×258×156 Mm Diameter Of Fiber Cable: φ9-17mm
High Light:

IP68 Fiber Optic Splice Closure

,

288 Core Fiber Optic Enclosures

288 Core Inline fiber optic enclosures outdoor IP68 mechanical sealing, 4 inlets+4 outlets

GPJ09-6815-B inline closure is versatile field equipment designed for the mid-span access, fiber branching and splicing. The entries/exits apply to φ9-17mm cables. The box material is high quality Polymer Modified Plastics. It's an ideal choice for ODN solutions.



Features:

Ports: 4 inlets and 4 outlets, applicable to φ9-17 mm cables.
Capacity: 24F/48F tray capacity, max 6 splice trays
Fusion Splice Capacity: minimum 24F, maximum 288F
Sealing: bolt mechanical structure, silicone rubber for squeezing seal, IP68
Installation: wall mounting, aerial, duct mounting, direct burial
Performance: meet all the industry standard performance tests from YD/T 814.1-2013 Closure for Optical Fiber Cables (ICS 33.180.99), and strict tests like IK9.
Satisfactory space for the placement of fiber joints and fiber storage, preventing the joints from being influenced by the external environment.



Model No. GPJ09-6815-B
Style In-line/ Horizontal
Dimensions (L×W×H) 556×258×156 mm
Material Polymer Modified Plastics
Sealing Type Mechanical Seal
Protection Grade IP68
Cable Ports Inlet 4 φ9-17mm
Outlet 4
Fiber Splice Capacity Min 24, Max 288
Tray Capacity 24/ 48
Tray Count 6
Weight 3.5 - 4.0 kg
Application Wall Mounting/Aerial/Duct Mounting/Direct Burial
Packing Type Inner Carton 580×280×190 mm (1 PCS)
Outer Carton 600×580×410 mm (4 PCS)
