Product Details:
Payment & Shipping Terms:
|
Connector: | CS To LC | Fiber: | G657A2 |
---|---|---|---|
Fiber Counts: | 2 Fiber | Cable Jacket: | PVC/OFNR)/LSZH |
Color: | Yellow | Length: | Customized |
High Light: | 2.0mm Fiber Optic Patch Leads,PVC Fiber Optic Patch Cable |

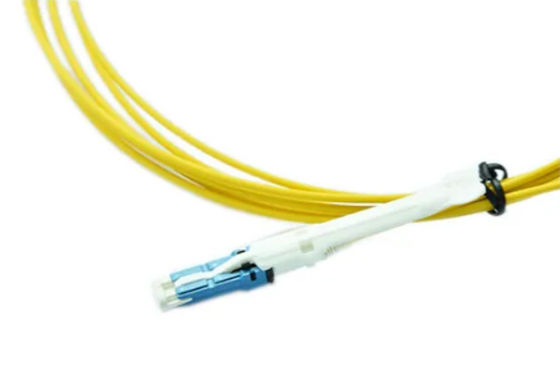

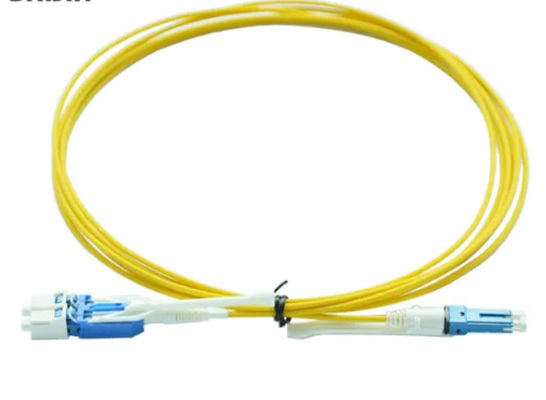

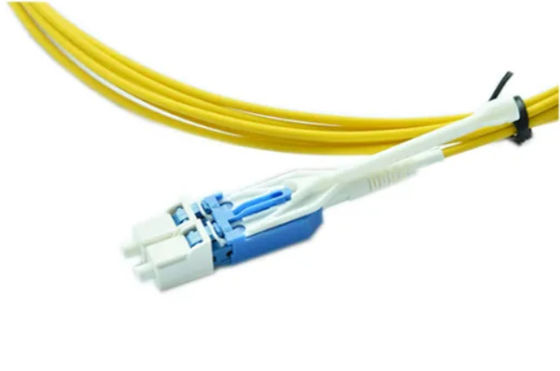

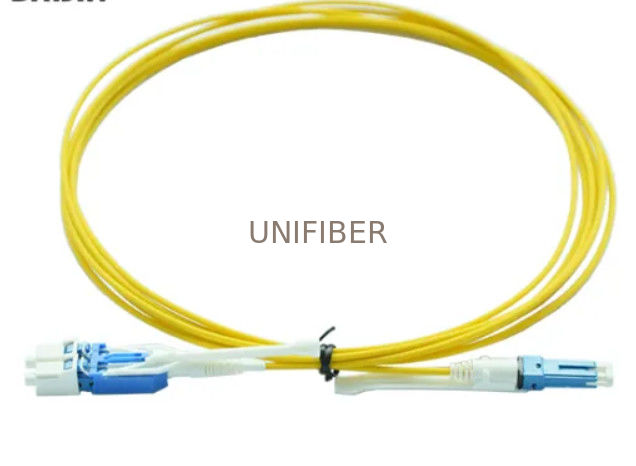

CS to LC Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
Senko CS™ connector is designed for next generation 200/400G transceiver QSFP-DD and OSFP, meeting the requirement for CWDM4, FR4, LR4 and SR2.The reduced size CS™ connector is not only capable of delivering low insertion and high return loss comparable to existing LC connectors, but it does so with a reduced footprint. Working with the QSFP-DD and OSFP pluggable form factors, the CS™ connector accentuates ease of fiber breakout.
Features:
40% size reduction compared to LC Duplex
Connector adopted by QSFP-DD, OSFP and COBO
Performance exceeds LC
Push/Pull tab for a better usability in high density applications
for a better usability in high density applications
Double the density in patch panel compared to LC
IEC random mating Grade B
Connector Type | Senko CS™ to LC | Polish Type | UPC to UPC |
Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
400G Ethernet Distance | 2km with OSFP-400G-2FR4 | Glass Fiber | Corning Fiber |
Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
Fiber Grade | G.657.A1 (Compatible with G.652.D) | Minimum Bend Radius | 10mm |
Attenuation at 1310 nm | 0.4 dB/km | Attenuation at 1550 nm | 0.22 dB/km |
Fiber Count | Duplex | Cable Diameter | 2.0mm |
Cable Jacket | PVC | Polarity | A(Tx) to B(Rx) |
Operating Temperature | -10~60°C | Storage Temperature | -20~70°C |
