5G Telecom 7.0mm IP68 LSZH Female Optical Connector

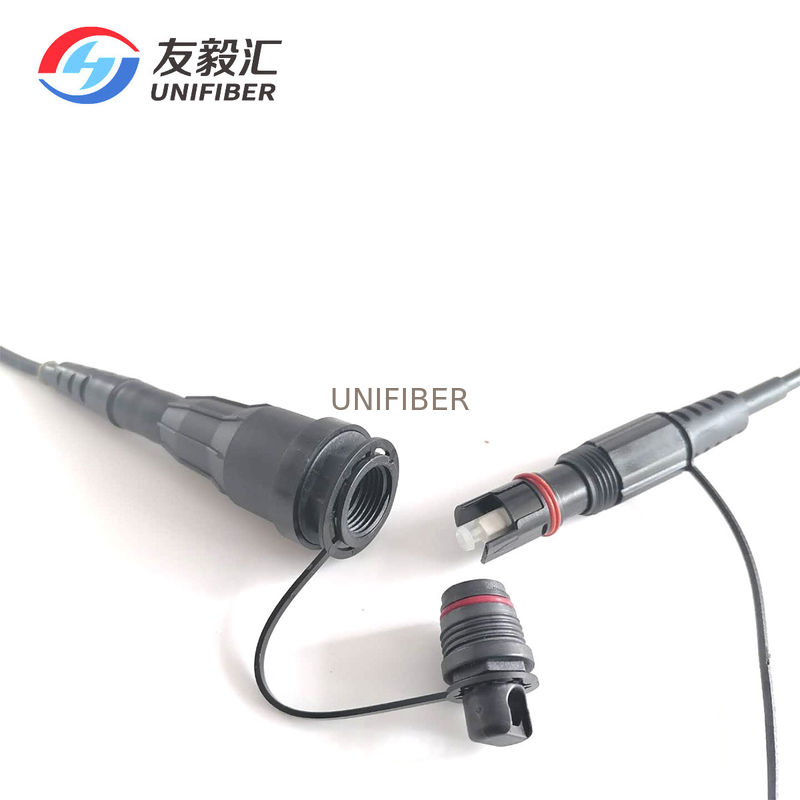

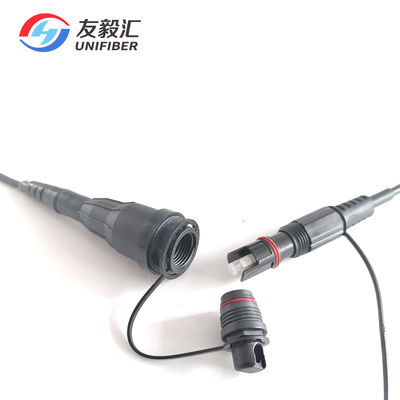

Large Image : 5G Telecom 7.0mm IP68 LSZH Female Optical Connector

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	H Connector-Female

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Cable Diameter:	3.0mm/4.8mm/7.0mm	Cable Jacket:	LSZH,PE,TPU,UV Resistance
Cable Length:	1/3/5/10m Or Customized	Compatible:	Corning Optitap
Water Proof Grade:	IP68	Connector Type:	H-connector Female
High Light:	5G Telecom Female Optical Connector , IP68 Female Optical Connector , LSZH Fiber Optic Connector

FTTH pre connectorized drop cable patch cords waterproof mini SC/APC to SC/APC compatiable to Corning optitap connector

The H OptiTap connector end incorporates an SC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptacle.The SC connectors mate to a standard adapter providing a common interface for FTTX applications.

LC/ SC/ MPO are optional.

Feature

Low profile in-line receptacle available;

No installation tools requires;

IP-68 water and dust protection;

Factory terminated for high performance;

Accepts 2.0mm to 7.0mm cable diameters;

Application
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;

Suitable for FTTA and outdoor temperature extremes;

Ensures functionality in harsh weather environments ;

Can be installs without special tooling;

Provides bend protection for installation and long term use.

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥30dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

5G Telecom 7.0mm IP68 LSZH Female Optical Connector 0
