Product Details:
Payment & Shipping Terms:
|
| Cable Counts: | 2 Counts Or 4 Counts | Cable Jacket: | LSZH,TPU,PE |
|---|---|---|---|
| Cable Diameter: | 4.8mm Or 7mm | Cable Mode: | GJFJH |
| Cable Length: | 1/3/5/10m Or Customized | Fiber: | G657A |
| Highlight: | LSZH CPRI Patch Cord,FTTA CPRI Patch Cord,FC- SC Singlemode Cable Assembly |
||

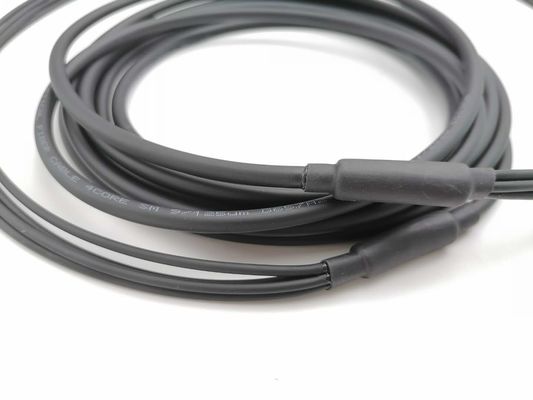

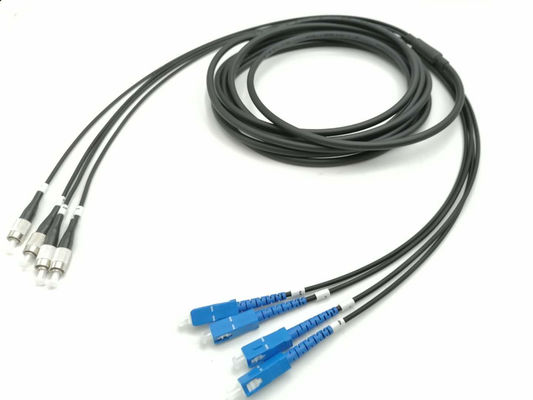

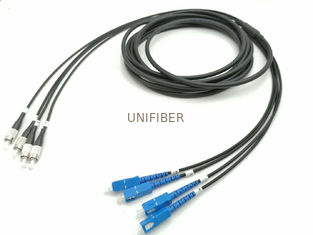

FTTA CPRI Patch Cord 4 core FC SC Singlemode G657A1 4.8/7.0mm LSZH
The CPRI patch cords are standard size widely used in FTTA, Base station, and the outdoor waterproof condition. Spring supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.
The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
500cycles Mechanical life
Easily add/install jumper cables for a future expansion
Factory-assembled cables for a fast on-site installation
Flexibility with small bending radius and excellent cable routing properties
Equipped with customer specific power and fiber-optic connectors
Multi-purpose Outdoor
Cable Parameters
| Fiber Count | Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 or 4 | 4.8/7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -40 ~ 85°C |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
| CableModel | GYFJH-4B1 /GYFJH-2B1 / GYFJH-2A1, |
| Fiber Count | 2, 4 Fibers |
| Fiber Type | SM G652D, SM G657A, or MM 50/125 or MM 62.5/125 |
| Buffer Diameter | 900um±10um Material LSZH |
| Simplex cable Diameter | 2.0mm±0.1mm Material LSZH |
| Color | Orange or grey or customized |
| Filler Diameter | 2.0mm±0.1mm |
| Material LSZH | Color Black |
| Strength Member | Kevlar |
| Jacket Diameter | 7.0±0.1mm |
| material PE | Color Black |
