Product Details:
Payment & Shipping Terms:
|
| Connector: | SC/apc | Fiber: | G657B |
|---|---|---|---|
| Jacket: | LSZH | OD: | 3.5mm/4.0mm |
| Color: | Black | Application: | FTTH/CATV |
| High Light: | FTTH Fiber Optic Drop Cable,LSZH Fiber Optic Drop Cable,3.5mm Optical Fiber Patch Cord |
||

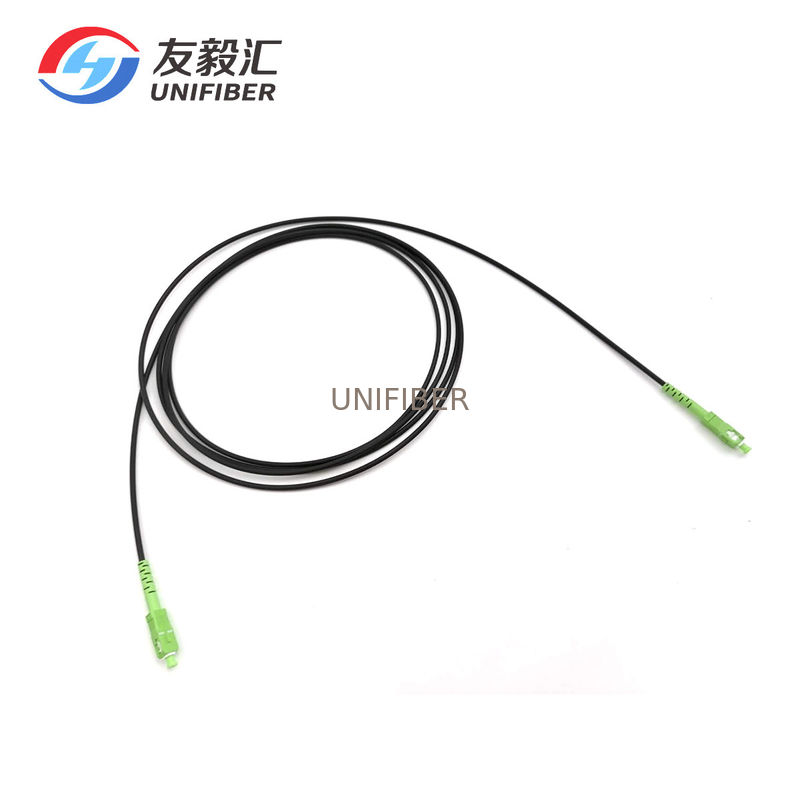

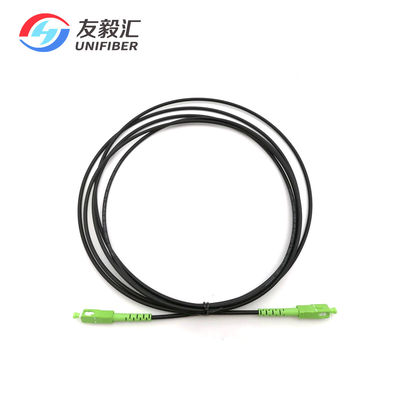

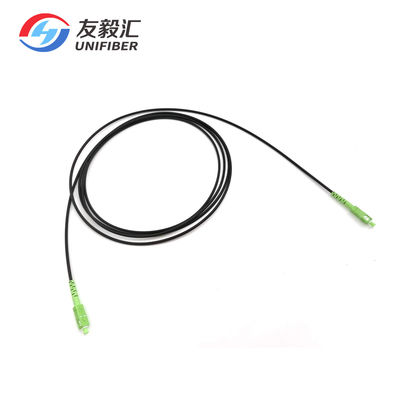

G657B3 patch cord sc apc-sc apc single mode simplex 3.5mm lszh black ftth fiber optic drop cable
This is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunicationequipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.It include 3pcs 4.0mm transparent sleeves, and 3pcs 5.0mm sticky tube, also with 3pcs cable ties. It's better for fusion and fixing better.
Features
Use G657B3 fiber.

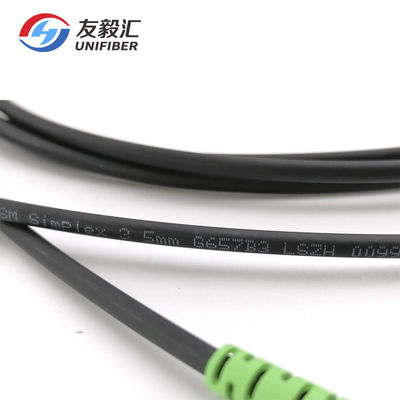

Outer black 3.5mm jacket can be stripped more easily if customer need use inside 1.9mm cable to connector with patch panels, terminal box and make splicing installation.
Outdoor Exterior fiber optic patch cables, inside 1.9mm inner white LSZH sheath, outer jacket is PE Material. It can be used indoor and outdoor.
For this type pigtail or patch cable length always 20M, 30M, 40M, 60M, 80M, 100M, 120M, 2KM to use for long distance connecting.
Application
FTTH (Fiber to The Home)
CATV (Cable Television)
Fiber Optic Communication System
Telecommunication networks
LAN (Local Area Network)
Optical fiber connected and transmitted equipment
Parameters
| Item | SingleMode | MultiMode |
| Insertion loss | ≤0.2dB | ≤0.3dB |
| Return loss | PC≥50dB, APC≥55dB, UPC≥60dB | |
| Insert-pull test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10kg | |
| Operating temperature | -40℃~ +85℃ | |
| Ceramic ferrule spec | 125.5um concentricity deviations:≤1μm | 127um concentricity deviations:≤3μm |
| Suitable fiber | 9/125μm | 50/125μm, 62.5/125μm |
