Product Details:
Payment & Shipping Terms:
|
| Cable Diameter: | 4.8mm/7.0mm | Cable Jacket: | LSZH,PE,TPU,UV Resistance |
|---|---|---|---|
| Cable Length: | 1/3/5/10m Or Customized | Fiber Count: | 2 |
| Fiber: | G657A | Connectors: | Mini IP LC |
| High Light: | 7.0mm Fiber Patch Cord,G657A Fiber Patch Cord,FTTA Cpri Optitap Patch Cable |
||

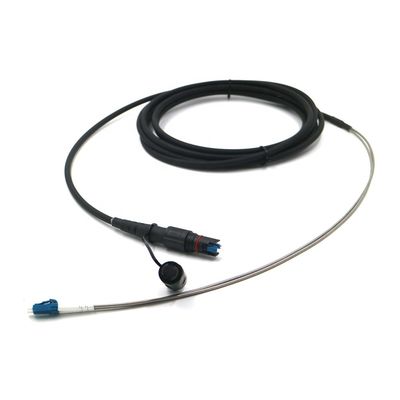

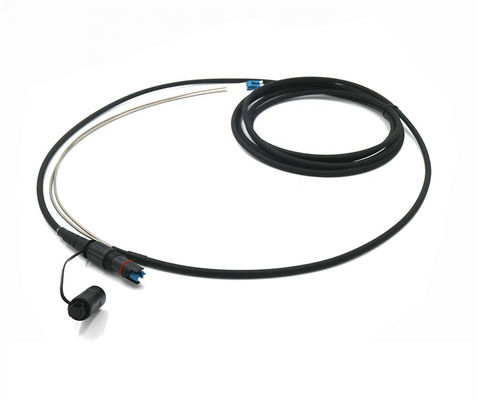

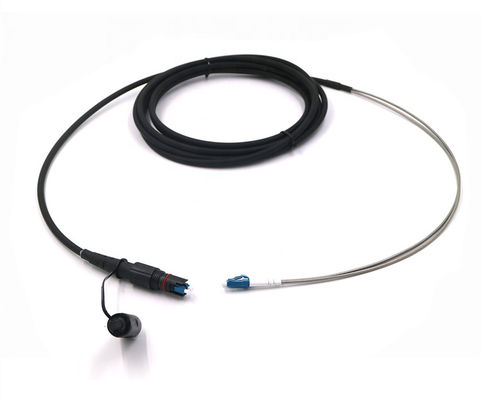

FTTA Cpri Optitap H-Connector Duplex LC Drop Fiber Patch Cord RRU RRH
Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The end incorporates an Duplex LC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The Duplex LC connectors mate to a standard adapter providing a common interface for FTTX applications.
Features:
1. The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
2. Standard Duplex LC connector, well connected with standard LC adaptor
3. Available Single mode and Multimode
4. IP67 protection, salt-mist proof, humidity proof, dust proof
5. Low insertion/return loss, steady optical transmitting.
6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
7. 500cycles Mechanical life
8. Easily add/install jumper cables for a future expansion
9. Factory-assembled cables for a fast on-site installation
10. Flexibility with small bending radius and excellent cable routing properties
11. Equipped with customer specific power and fiber-optic connectors
Applications:
1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH.
3.Deployment in Remote Radio Head cell tower
Specification:
| Item | Data |
| fiber | Single mode G.657A2 |
| Fiber diameter | 7.0mm |
| Material & color for jacket | LSZH black |
| Tension member | Aramid fiber |
| Max. attenuation |
≤ 0.4dB/km at 1310nm ≤0.3dB/km at 1550nm |
| Tensile resistance(short term) | 500N(no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| inflaming retarding | IEC 60332-3 |
| Temperature | -40~+70°C |
| Uvioresistant | PASS |
| Authentication | Meet with RoHS &UL |
