Product Details:
Payment & Shipping Terms:
|
| Cable Counts: | 2 Counts Or 4 Counts | Cable Jacket: | LSZH,TPU,PE |
|---|---|---|---|
| Cable Diameter: | 4.5mm Or 7mm | Cable Mode: | GJFJH |
| Cable Length: | 1/3/5/10m Or Customized | Application: | FTTA |
| High Light: | 7.0mm Optical Fiber Patch Cord,GYFJH Optical Fiber Patch Cord,FTTA Optical Fiber Cable |
||

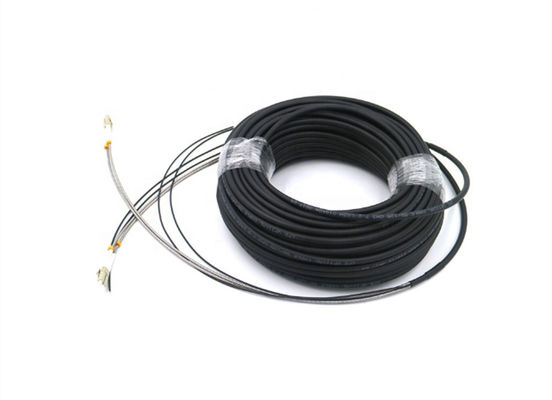

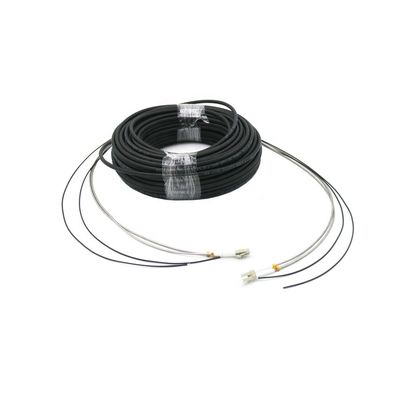

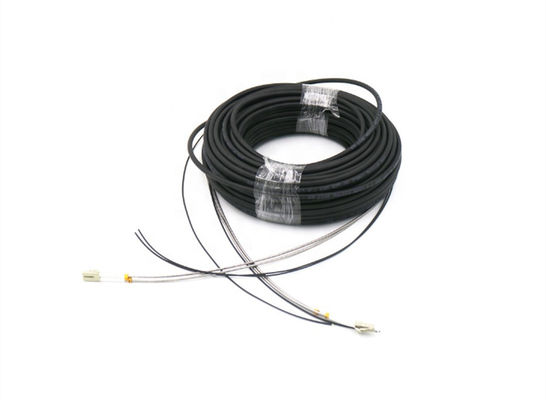

GYFJH LSZH FTTA CPRI Armored 7.0mm Optical Fiber Patch Cord
The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. UNIFIBER supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.
Features:
1. The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
2. Standard Duplex LC connector, well connected with standard LC adaptor
3. Available Single mode and Multimode
4. IP67 protection, salt-mist proof, humidity proof, dust proof
5. Low insertion/return loss, steady optical transmitting.
6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
7. 500cycles Mechanical life
8. Easily add/install jumper cables for a future expansion
9. Factory-assembled cables for a fast on-site installation
10. Flexibility with small bending radius and excellent cable routing properties
11. Equipped with customer specific power and fiber-optic connectors
Applications:
1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH.
3.Deployment in Remote Radio Head cell tower
PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
