Product Details:
Payment & Shipping Terms:
|
| Connector: | Mini SC | Cable Jacket: | LSZH,TPU,PE |
|---|---|---|---|
| Cable Diameter: | 4.8mm Or 7mm | Cable Mode: | GJFJH |
| Cable Length: | 1/3/5/10m Or Customized | Application: | FTTH |
| High Light: | Ftth Fiber Optic Drop Cable,4.8mm Fiber Optic Drop Cable,Pre Connectorized Fiber Optic Accessories |
||

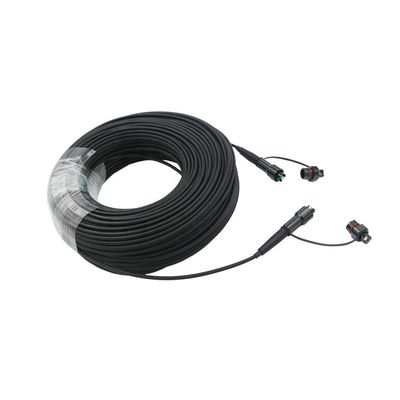

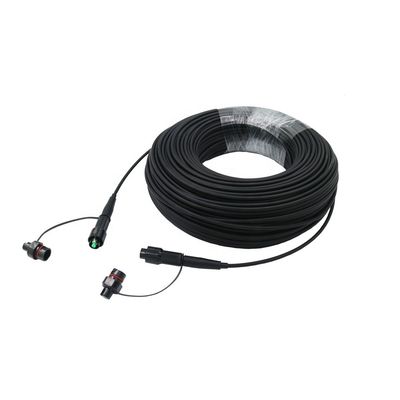

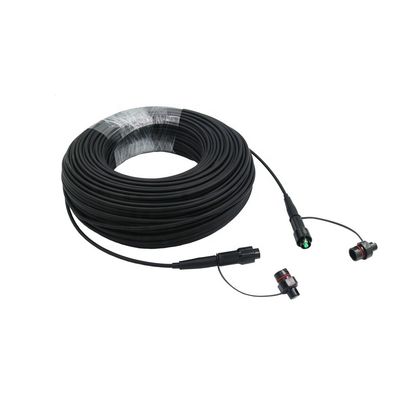

Outdoor Waterproof ftth fiber optic drop cable patch cord pre connectorized with huawei mini SC connector
Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
Spring Huawei Compatible Mini SC pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.
Features
IP67 water and dust protection
Seal design: It is waterproof, dust-proof, anti-corrosion and so on.
Easy connection to hardened adapters on terminals or closures
Reduce welding, connect directly to achieve interconnection
Spiral clamping mechanism ensures long-term reliable connection
Compact size, easy to operate, durable
Guide mechanism, can be blinded with one hand, simple and quick, connect and install
APPLICATION
FTTx wiring project
Fiber optic communications in harsh outdoor environments
waterproof fiber equipment SC port
Outdoor communication equipment connection
Remote wireless base station
| ype | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1dB | ≤0.3dB | ≤0.15dB | ≤0.3dB | ≤0.05dB | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
