Product Details:
Payment & Shipping Terms:
|
| Cable Diameter: | 7.0mm | Cable Jacket: | LSZH,PE,TPU,UV Resistance |
|---|---|---|---|
| Cable Length: | 1/3/5/10m Or Customized | Connector: | PDLC |
| Fiber: | Single Mode | Application: | FTTA FTTH FTTX |
| High Light: | FTTA CPRI Patch Cable Assembly,G657A2 CPRI Patch Cable Assembly,PDLC To DLC Fiber Optic Assembly |
||

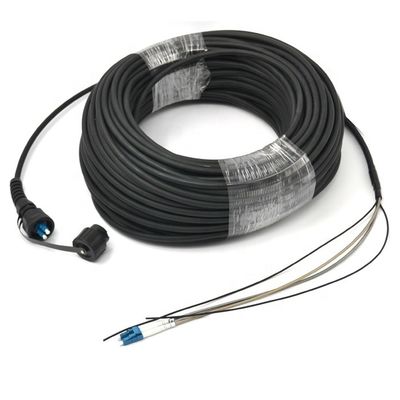

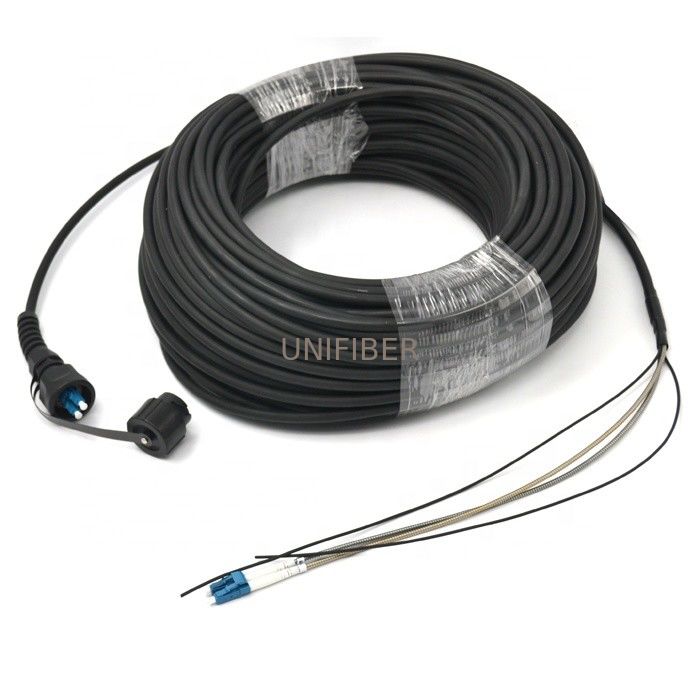

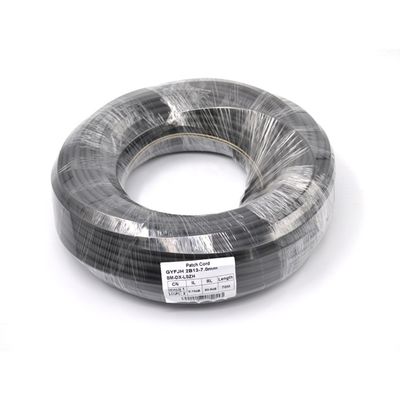

PDLC to PDLC duplex single mode waterproof fiber optic patch cord for wireless base station BBU/RRU cabling solution

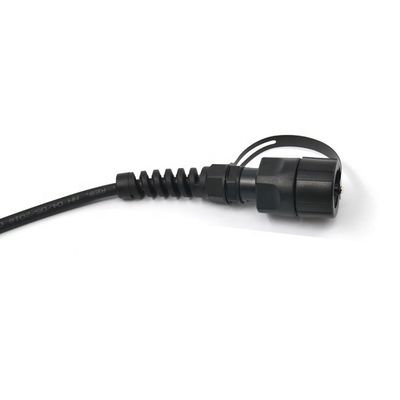

PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device. Also they meet with the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber feeder etc.
Features

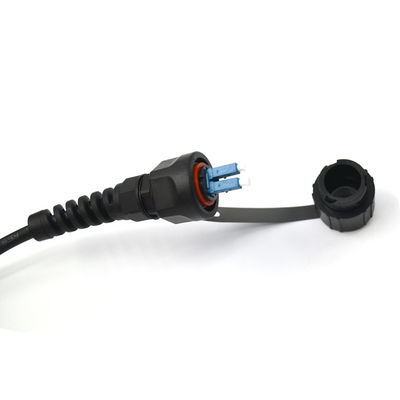

Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof,dust proof
Broad temperature range and wide range of indoor and outdoor cables
Easy Operation, reliable and cost-effective Installation
7Low insertion/return loss, steady optical transmitting.
Applications
Telecommunication networks
CATV, LAN, MAN, WAN, Test &Measurement
Optical access network,Used for 3G 4G base station
Fiber optic communication networks
BBU, RRU, RRH, LTE,FTTH,FTTA
Specification
| tem | Data |
| fiber | Single mode G.657A2 |
| Fiber diameter | 7.0mm |
| Material & color for jacket | LSZH black |
| Tension member | Aramid fiber |
| Max. attenuation |
≤ 0.4dB/km at 1310nm ≤0.3dB/km at 1550nm |
| Tensile resistance(short term) | 500N(no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| inflaming retarding | IEC 60332-3 |
| Temperature | -40~+70°C |
| Uvioresistant | PASS |
| Authentication | Meet with RoHS &UL |
| Item | Data |
| Connector | LC, DLC, (PC/APC) |
| Insertion Loss | ≤0.3dB (PC/APC) |
| Return Loss | PC≥45dB, APC≥60dB |
| Operating temperature | -10°C~+50°C |
| Working temperature | -40°C~+70°C |
| Mechanical life | 500cycles |
