Product Details:
Payment & Shipping Terms:
|
| Fiber Type: | SM/MM/OM3/OM4 | Cable Length: | 0.5/1/2/3m Or Customized |
|---|---|---|---|
| Cable Jacket: | PVC,LSZH,Plenum (OFNP) | Jacket Colors: | Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
| Fiber Count: | 8/12/24 | Key Words: | MPO Trunk Cable,MPO Patch Cord |
| High Light: | LSZH MPO MTP Trunk Cable,144 Core MPO MTP Trunk Cable,OM4 Fibre Optic Patch Cord |
||

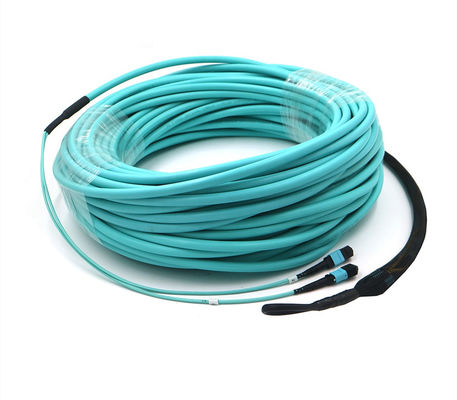

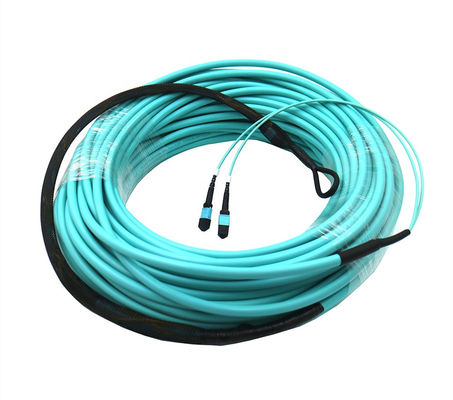

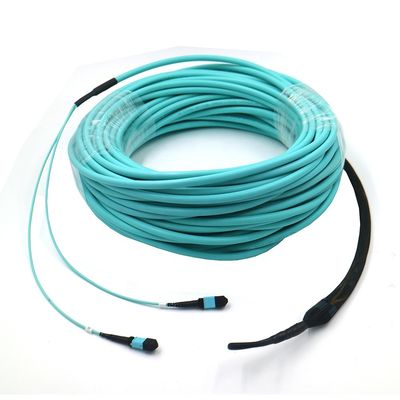

Customized 24~144 Core MPO MTP trunk cable with pulling eyes,50/125um OM3/OM4,Type B, LSZH
MPO/MTP Trun cable patch cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel
FEATURES
Supports 40G and 100G network applications
100% pre-terminated and tested in factory to ensure transfer performance
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F
Rapid configuration and networking, reduce installation time
APPLICATION
High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel
Parameters
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |
| Mechanical Properties | |||
| Item | Criteria | Conformance | |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | ||
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) | ||
| Environment Conditions | ||
| Item | Criteria | Conformance |
| Operation Temperature | -40~60 |
IEC 61753-1
|
| Storage Temperature | -45~85 | |
