Product Details:
Payment & Shipping Terms:
|
| Fiber Count: | 8/12/24 | Fiber Type: | SM/MM/OM3/OM4/OM5 |
|---|---|---|---|
| Cable Length: | 0.5m Or Customized | Cable Jacket: | PVC,LSZH |
| Fan-out Diameter: | 0.9mm | Keywords: | MPO To Lc Fiber Cable,mpo To Lc Patch Cord |
| High Light: | 12F Multimode Patch Cord,MPO/Male To LC Multimode Patch Cord,OM4 Optical Patch Cord |
||

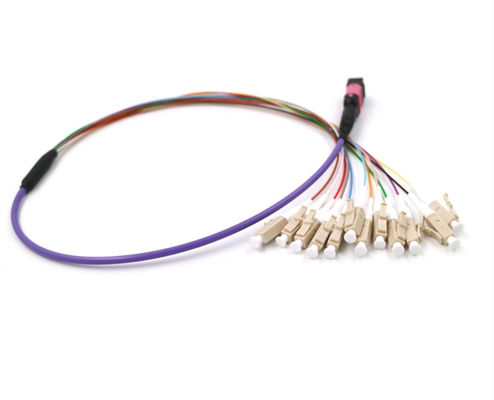

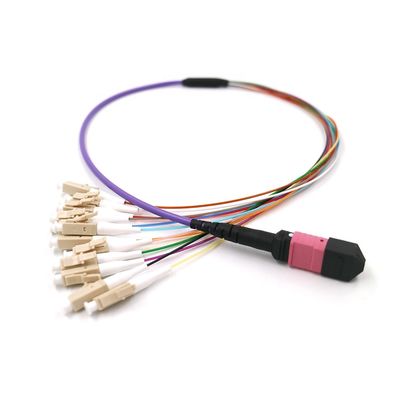

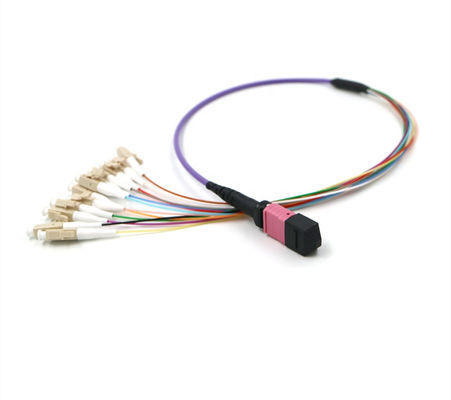

12F MPO/male to LC patch cord, Multimode OM4, with colored 0.9mm breakout cables
UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel.
The MPO/MTP breakout fan-out patch cord is a multi-fiber jumpers which is used in high density fiber networks. It's specifically designed for fast ethernet, data center, fiber channel and gigabit ethernet applications.MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Applications:
High Density Cabling Solution
MPO/MTP cassette
Telecom system
Data Center
FEATURES
Fiber type available in SM (G652D, G657A1, G657A2), MM (OM1, OM2, OM3, OM4)
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
Single-fiber connector type available in LC, SC with APC or UPC polishing type
Fiber count available in 8, 12, 24
Fanout length available in 0.5m, 1m, etc.
MTP/MPO connector type available in Male, Female
Insertion loss type available in Standard, Elite / Low Loss
Cable jacket type available in OFNR, LSZH, OFNP
Parameters
| MPO/MTP Termination | ||||
| Type | Single mode(APC polish) | Multi mode(PC polish) | ||
| Fiber count | 8,12,24,etc. | 8,12,24,etc. | ||
| Fiber type | G652D,G657A1 etc. | OM1,OM2,OM3,OM4 etc. | ||
| Maximum Insertion Loss | Standard | Elite Low Loss | Standard | Elite Low Loss |
| ≤0.75dB | ≤0.35dB | ≤0.75dB | ≤0.35dB | |
| Return Loss | ≥55dB | N/A | ||
| Working Temperature | -40℃～80℃ | -40℃～80℃ | ||
| Test Wavelength | 1310nm | 850nm | ||
| Generic Connector Termination | ||||
| Type | Single mode | Multimode | ||
| UPC | APC | PC | ||
| Max,Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | |
| Typical Insertion Loss | 0.2dB | 0.2dB | 0.2dB | |
| Return Loss | ≥55dB | ≥65dB | ≥25dB | |
| Working Temperature | -40℃～80℃ | |||
| Test Wavelength | 1310nm | 850nm | ||
| All MM SM shall be tested for IL | ||||
