ABS Module 1.5m Pigtail G657A 1x4 Fiber Optic Splitter

Name: ABS Module 1.5m Pigtail G657A 1x4 Fiber Optic Splitter
Brand: UNIFIBER-OEM
SKU: 1x4 Optical PLC Splitter
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (197 reviews)

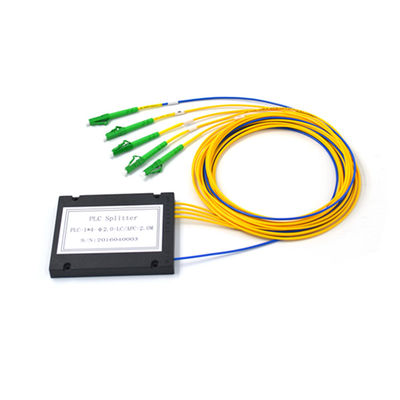

Large Image : ABS Module 1.5m Pigtail G657A 1x4 Fiber Optic Splitter

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	1x4 Optical PLC Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Blister Case
Delivery Time:	5~7 Business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	1x4 Optical PLC Splitter	Configuration:	1 In 4 Out
Package:	ABS Box	Fiber Type:	G657A1 Or G657A2
Connector:	SC/APC LC/APC	Pigtail Length:	1m/1.5m
High Light:	G657A Fiber Optic Splitter , 1x4 Fiber Optic Splitter , 1.5m Pigtail Optical PLC Splitter

ABS module G657A1 1x4 Optical PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features

Low insertion loss and low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Application

FTTX systems(FTTP, FTTH, FTTN, FTTC...
Passive Optical Networks (PON)
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems

Specification

Parameters
Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformit(dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss(dB)(P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity(dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Device Dimension(mm)	40×4×4	40×4×4	40×4×4	50×7×4	50×7×4	60×12×4	N/A
Module Dimension(mm)	100×80×10			120×80×18	141×115×18
Mini-Module Dimension(mm)	50×7×4			60×12×4	80×20×6	100×40×6	N/A
Storage Temperature(℃)		-40~+85
Package dimension(mm)		Φ5.5x34 (L38 for 900um Loose tube)

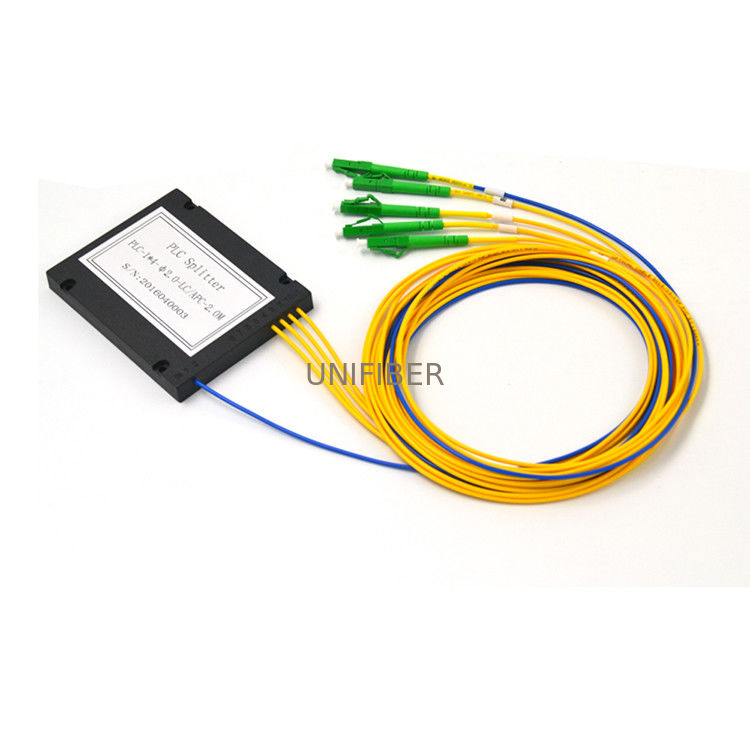

ABS Module 1.5m Pigtail G657A 1x4 Fiber Optic Splitter 0

Tag:

Contact Person: Kerry Sun

Tel: +86-135-9019-2305

Other Products

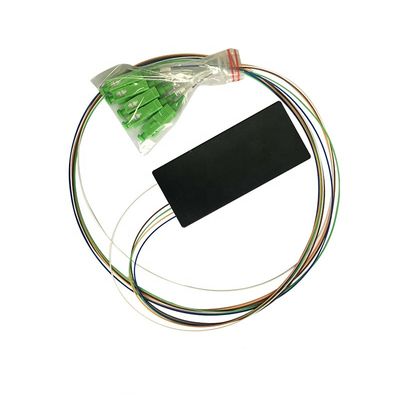

ABS Box SC/APC G657A1 Singlemode PLC Fiber Optic Splitter
