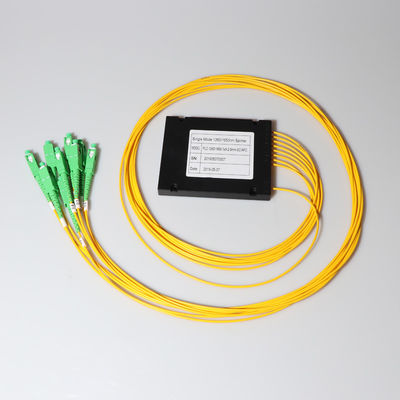

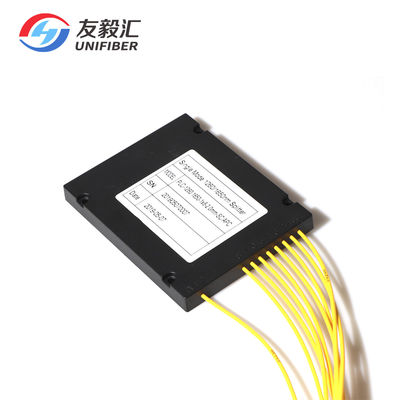

FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter

Name: FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter
Brand: UNIFIBER-OEM
SKU: 8 Way Passive Optical Splitter
Price: 1.00 USD
Availability: InStock
Rating: 5 (102 reviews)

Large Image : FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	8 Way Passive Optical Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable

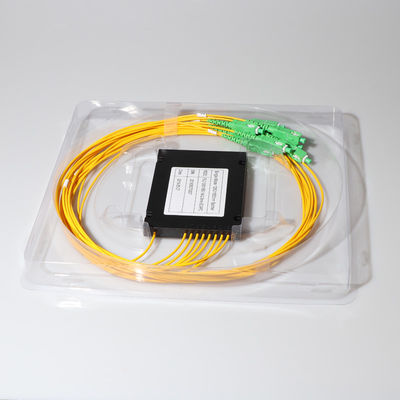

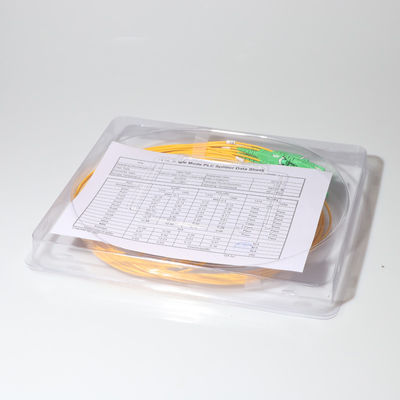

Packaging Details:	Blister Case
Delivery Time:	5~7 Business days
Payment Terms:	L/C, T/T
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	8 Way Passive Optical Splitter	Configuration:	1 In 8 Out
Package:	ABS Module	Fiber Type:	G657A1 Or G657A2
Connector:	SC/APC LC/APC	Pigtail Length:	1m/1.5m
High Light:	1.5m Pigtail Passive Optical Splitter , FTTH Passive Optical Splitter , 1x8 PLC Fiber Splitter

FTTH 8 Way Passive Optical Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features

Uniform power splitting

Compact size and various package

High reliability

Low insertion loss and low PDL
Excellent environmental stability

Application

FTTX Solutions & CATV systems
Passive Optical Networks (PON)
LAN,WAN and Metro Networks

Specification

Parameters
Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformit(dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss(dB)(P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity(dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Device Dimension(mm)	40×4×4	40×4×4	40×4×4	50×7×4	50×7×4	60×12×4	N/A
Module Dimension(mm)	100×80×10			120×80×18	141×115×18
Mini-Module Dimension(mm)	50×7×4			60×12×4	80×20×6	100×40×6	N/A
Storage Temperature(℃)		-40~+85
Package dimension(mm)		Φ5.5x34 (L38 for 900um Loose tube)

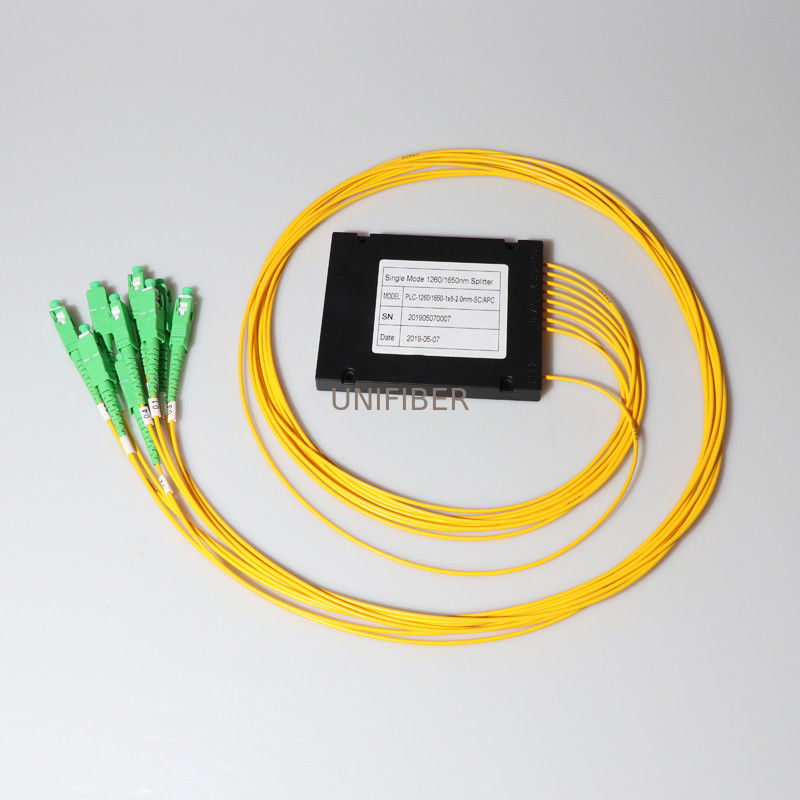

FTTH 1.5m Pigtail 8 Way 1x8 SC/APC Passive Optical Splitter 0
