Product Details:
Payment & Shipping Terms:
|
| Product: | MPO/MTP Trunk Cable | Polarity: | Type B |
|---|---|---|---|
| Connector: | MPO/MTP Female | Fiber Count: | 8/12/24 |
| Fiber Type: | SM/MM/OM3/OM4 | Cable Length: | 0.5/1/2/3m Or Customized |
| Cable Jacket: | PVC,LSZH,Plenum (OFNP) | Jacket Colors: | Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
| Application: | 10G/40G/100G/400G Data Center Solution | ||
| High Light: | OM4 MPO MTP Trunk Cable,1M MPO MTP Trunk Cable,Plenum OFNP MTP Patch Cable |
||

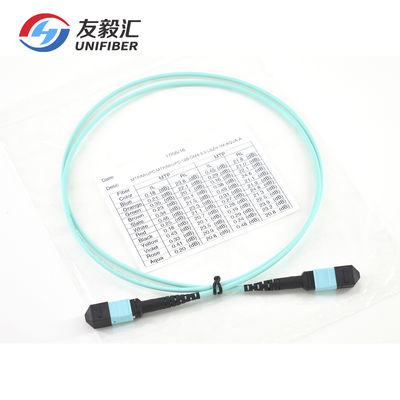

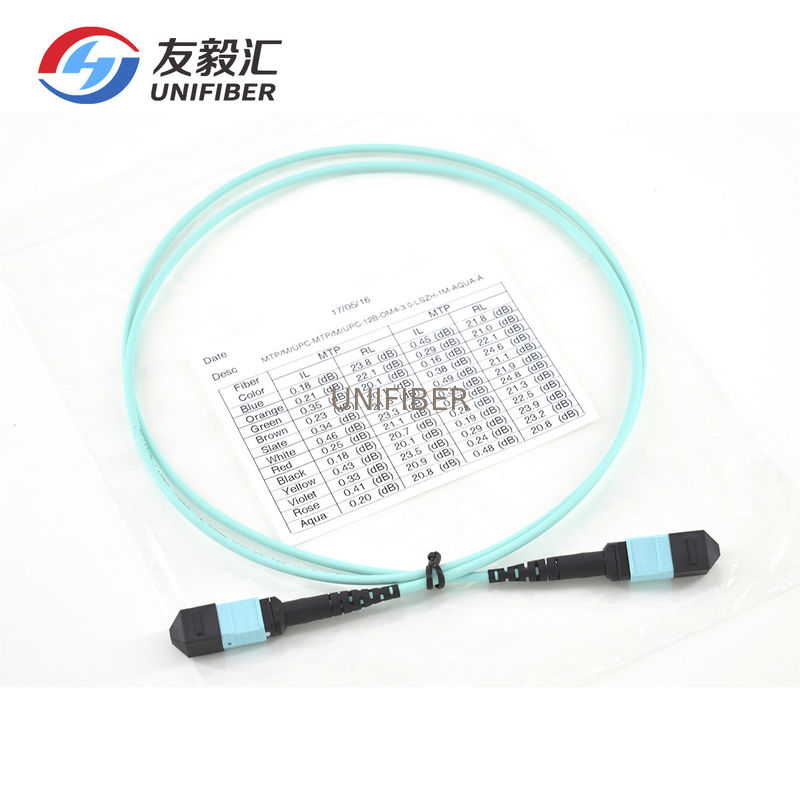

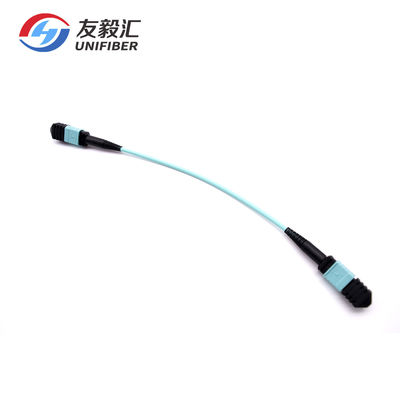

1M OM3/OM4 8/12/24 Fiber Multimode Elite MPO/MTP Trunk Cable, Female,Type B, Plenum (OFNP)
UNIFIBER provide complete solution for your data center interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out 0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch Cords ,MPO/MTP Loopback ,MT Patch Cords ,MPO/MTP Cassettes ,MPO/MTP Fiber Optic Patch Panel.it is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics direct connection and high-density data center applications.
FEATURES
Supports 40G and 100G network applications
MPO/MTP connector with Male or Female type
Polarity A/B/C for options
Supports up to 8F 12F, 24F, 48F, 72F, 96F, 144F
Jacket material: LSZH, OFNR, OFNP available
100% pre-terminated and tested in factory to ensure transfer performance
APPLICATION
High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel
Parameters
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |
| Mechanical Properties | |||
| Item | Criteria | Conformance | |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | ||
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) | ||
| Environment Conditions | ||
| Item | Criteria | Conformance |
| Operation Temperature | -40~60 |
IEC 61753-1
|
| Storage Temperature | -45~85 | |
