Product Details:
Payment & Shipping Terms:
|
| Product: | Mpo To Lc Duplex Breakout Cable | Polarity: | Type B |
|---|---|---|---|
| Connector: | MPO/MTP Female | Fiber Count: | 8/12/24 |
| Fiber Type: | SM/MM/OM3/OM4 | Cable Length: | 0.5/1/2/3m Or Customized |
| Cable Jacket: | PVC,LSZH,Plenum (OFNP) | Jacket Colors: | Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow |
| Application: | 10G/40G/100G/400G Data Center Solution | ||
| Highlight: | OM3 MPO Patch Cable,3m MPO Patch Cable,Mpo To Lc Duplex Breakout Cable |
||

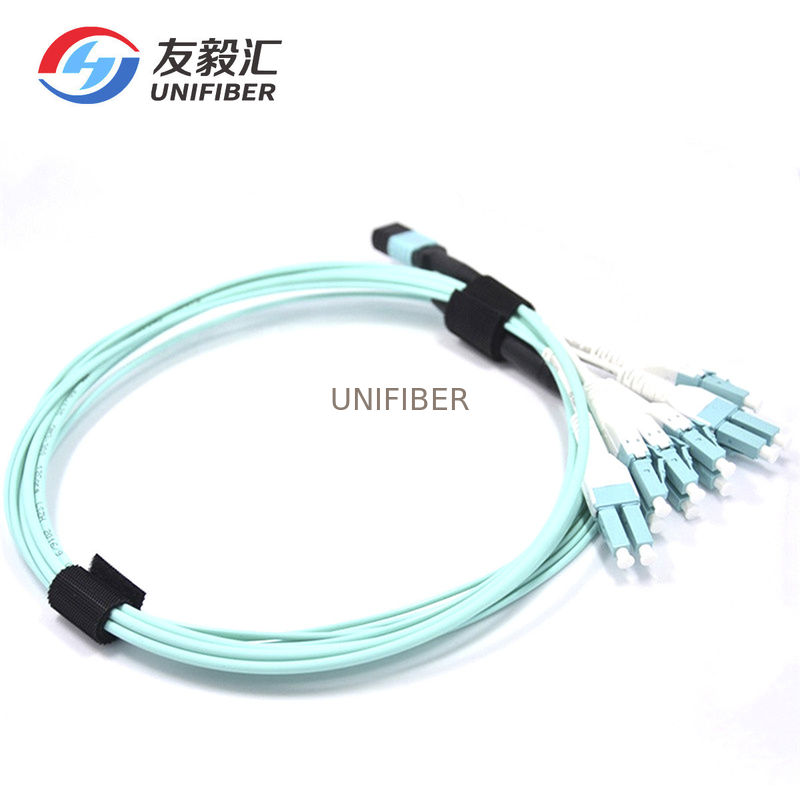

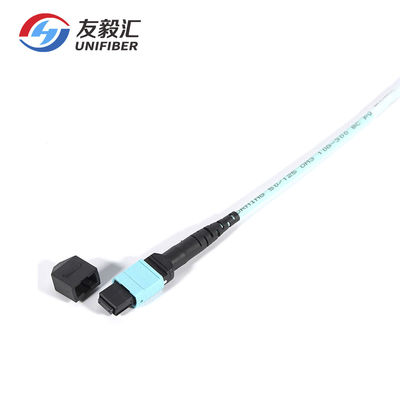

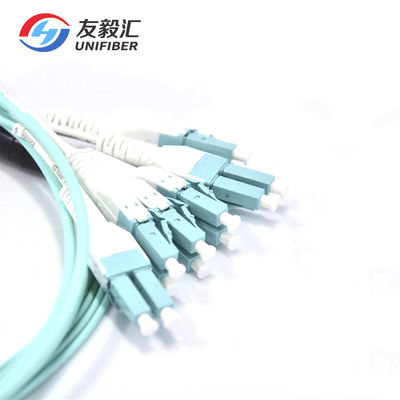

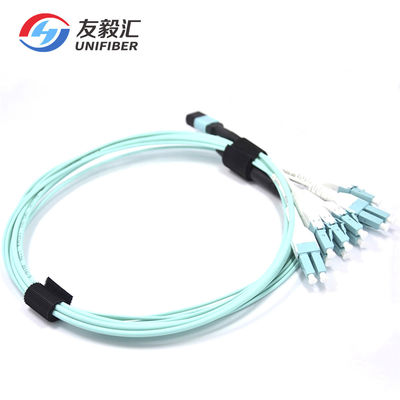

10G OM3 multimode Female (Pinless) mpo to lc duplex breakout cable
MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.
FEATURES
Insertion loss type available in Standard, Elite / Low Loss
Fiber count available in 6, 8, 12, and 24
MTP/MPO connector type available in Male and Female
Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
Fanout length available in 0.5m, 1m, etc.
Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
Single-fiber connector type available in LC, SC with APC or UPC polishing type
Factory terminated & tested with guaranteed quality
High density to dramatically save space
APPLICATION
High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel
MTP/MPO Specifications:
| Type | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
