Product Details:
Payment & Shipping Terms:
|
| Product: | FTTA CPRI Fiber Optic Patch Cable | Cable Counts: | 2 Counts Or 4 Counts |
|---|---|---|---|
| Cable Diameter: | 4.8mm Or 7mm | Cable Length: | 1~150m Or Others |
| Fiber: | Single Mode G657A1 | Cable Jacket: | LSZH,TPU,PE |
| Cable Mode: | GJFJH | Connector: | Duplex LC |
| High Light: | CPRI Fiber Optic Patch Cable,FTTA Fiber Optic Patch Cable,LSZH Optical Cable Assembly |
||

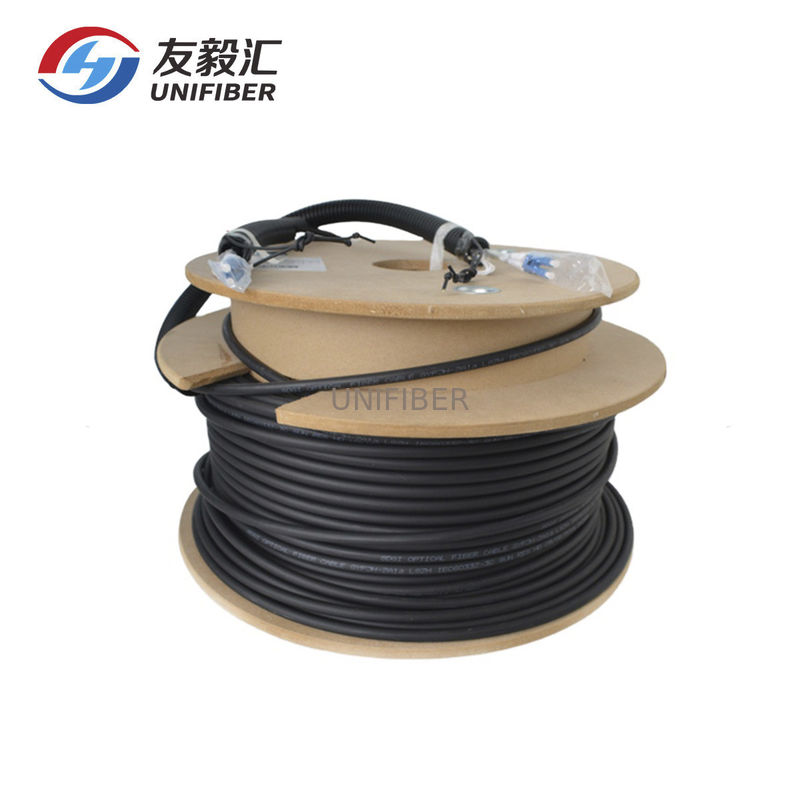

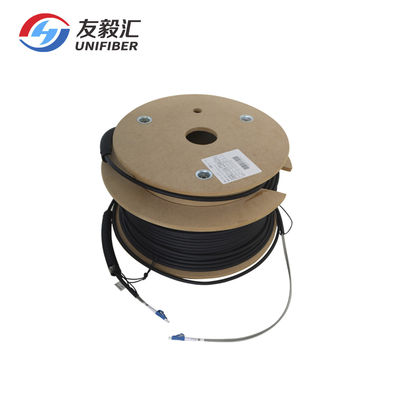

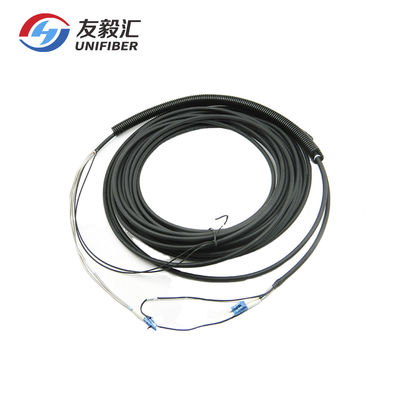

1~150m FTTA CPRI Fiber Optic Patch Cable 2 Core, G657A1, Single Mode, GYFJH, 4.8/7.0mm, Duplex LC/UPC LSZH
The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder,it with standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.
Cable Parameters
| Fiber Count | Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Temperature | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2 or 4 | 4.8/7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -40 ~ 85°C |
| Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
| CableModel | GYFJH-4B1 /GYFJH-2B1 / GYFJH-2A1, |
| Fiber Count | 2, 4 Fibers |
| Fiber Type | SM G652D, SM G657A, or MM 50/125 or MM 62.5/125 |
| Buffer Diameter | 900um±10um Material LSZH |
| Simplex cable Diameter | 2.0mm±0.1mm Material LSZH |
| Color | Orange or grey or customized |
| Filler Diameter | 2.0mm±0.1mm |
| Material LSZH | Color Black |
| Strength Member | Kevlar |
| Jacket Diameter | 7.0±0.1mm |
| material PE | Color Black |
