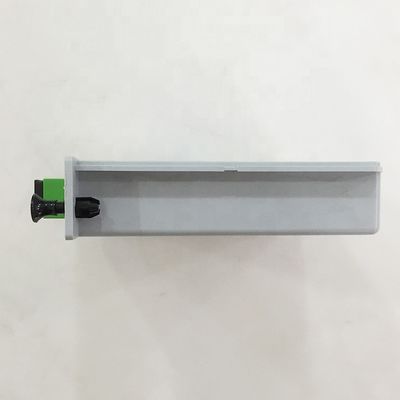

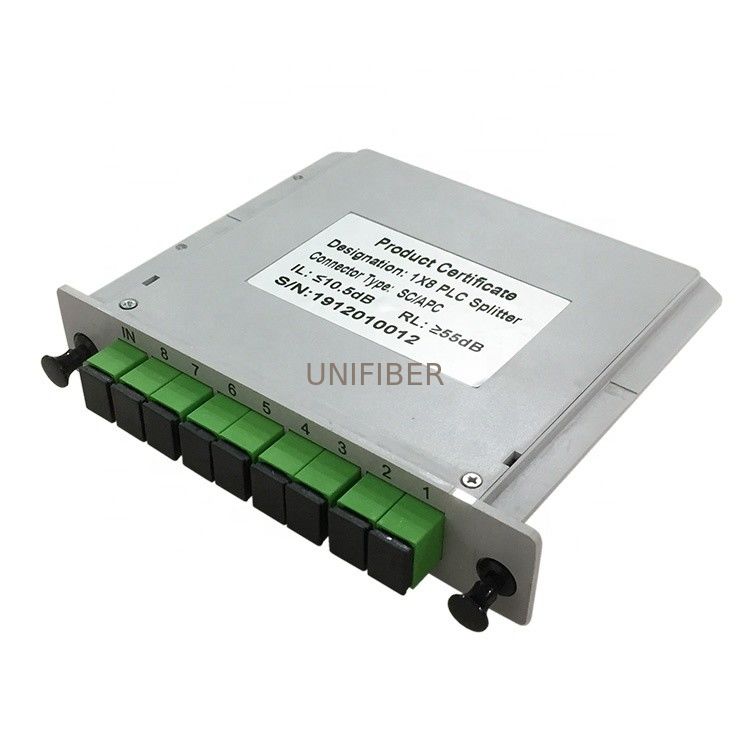

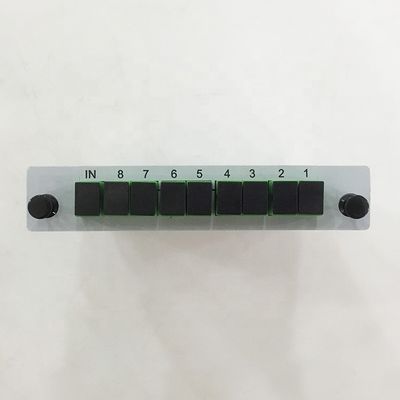

SC/APC G657A1 FTTH 1x8 PLC Splitter LGX Cassette Box

Name: SC/APC G657A1 FTTH 1x8 PLC Splitter LGX Cassette Box
Brand: UNIFIBER
SKU: 1x8 PLC Splitter LGX Cassette Box SC/APC
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (141 reviews)

Large Image : SC/APC G657A1 FTTH 1x8 PLC Splitter LGX Cassette Box

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER
Certification:	ROHS
Model Number:	1x8 PLC Splitter LGX Cassette Box SC/APC

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	5~8 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	1x8 PLC Splitter LGX Cassette Box SC/APC	Operation Wavelength:	1260nm~1650nm
Package Style:	LGX Cassette	Connector:	SC/APC
Configuration Type:	1X8	Fiber Type:	G657A1
Application:	FTTH Solution
High Light:	PLC Splitter LGX Cassette Box , 1x8 LGX Cassette Box , FTTH Fiber Optic Cassette Box

FTTH 1x8 PLC Splitter LGX Cassette Box SC/APC
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

FEATURES

Low insertion loss and low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

APPLICATION

FTTH Solution
CATV systems

Passive Optical Networks (PON)
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems

Specification

Parameters
Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformit(dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss(dB)(P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity(dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Device Dimension(mm)	40×4×4	40×4×4	40×4×4	50×7×4	50×7×4	60×12×4	N/A
Module Dimension(mm)	100×80×10			120×80×18	141×115×18
Mini-Module Dimension(mm)	50×7×4			60×12×4	80×20×6	100×40×6	N/A

SC/APC G657A1 FTTH 1x8 PLC Splitter LGX Cassette Box 0
