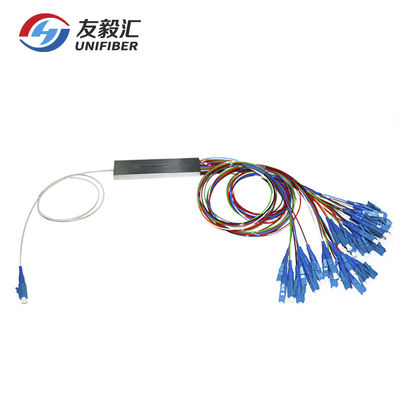

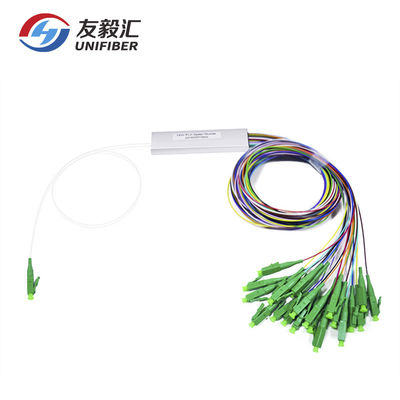

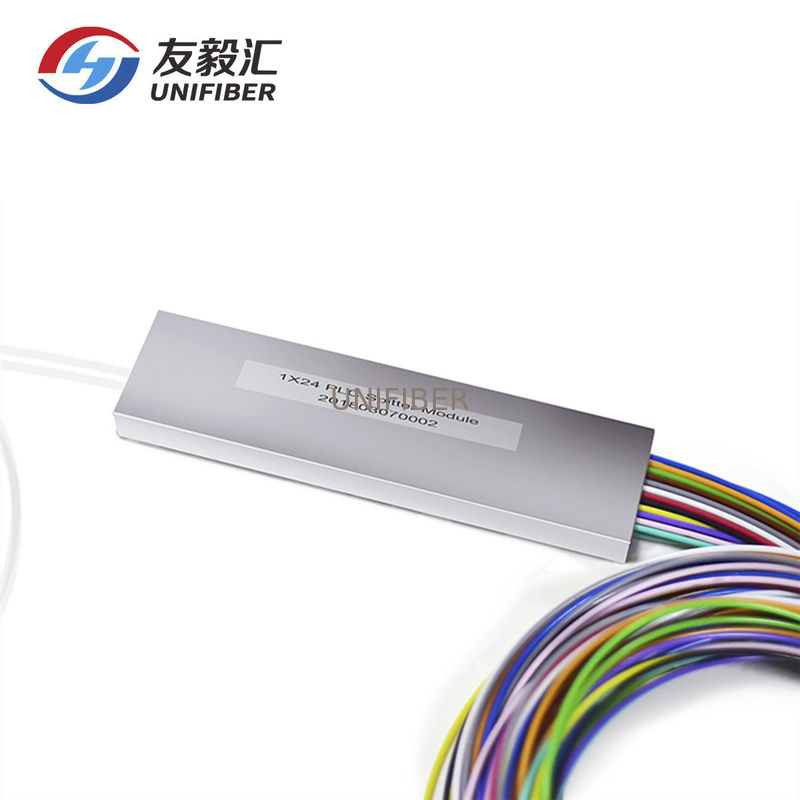

G657A1 900um Single Mode 1x24 PLC Optical Splitter

Large Image : G657A1 900um Single Mode 1x24 PLC Optical Splitter

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER
Certification:	ROHS
Model Number:	1x24 Mini Type PLC Optical Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Carton Box
Delivery Time:	5~8 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	1x24 Mini Type PLC Optical Splitter	Operation Wavelength:	1260nm~1650nm
Package Style:	Mini Steel Tube	Connector:	SC/APC
Configuration Type:	1X24	Fiber Type:	G657A1
Application:	FTTH Solution
Highlight:	1x24 PLC Optical Splitter , 900um PLC Optical Splitter , G657A1 Single Mode Optical Splitter

Mini Type PLC Optical Splitter 1x24 Single Mode G657A1 900um Color Coded Pigtail

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

FEATURES

Low insertion loss and low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

APPLICATION

FTTH Solution
CATV systems

Passive Optical Networks (PON)
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems

Specification

Parameters	1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Packaging Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	40×4×4	50×7×4	60×12×4

G657A1 900um Single Mode 1x24 PLC Optical Splitter 0
