Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler

Name: Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler
Brand: UNIFIBER
SKU: 1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (169 reviews)

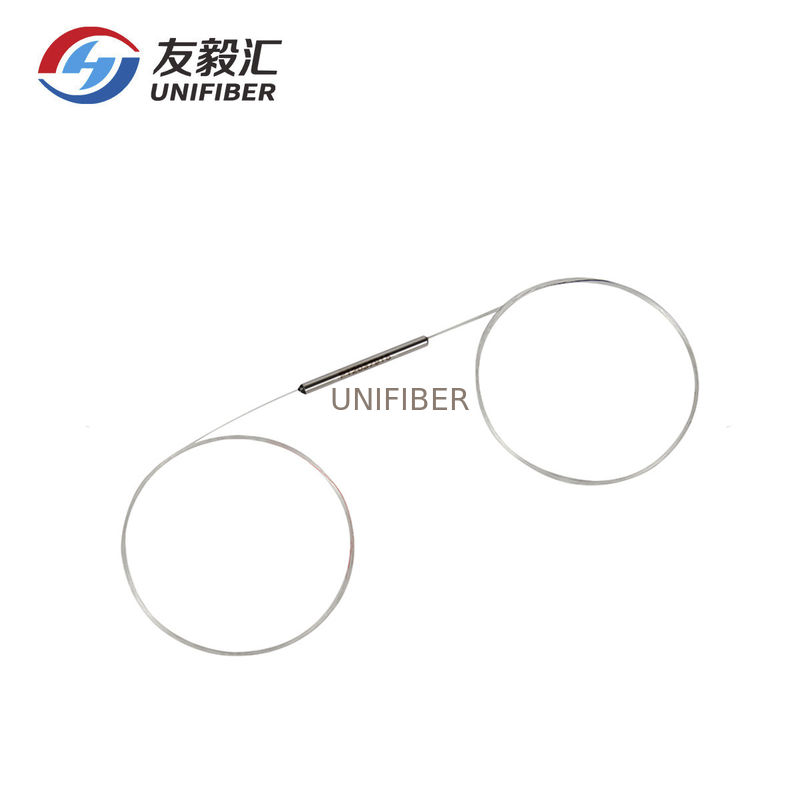

Large Image : Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER
Certification:	ROHS
Model Number:	1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Blister case
Delivery Time:	5~7 Business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	1x2 1310 Or 1550 Single Mode Standard Fiber Optic Coupler (SSC)	Wavelength:	1310nm Or 1550nm
Package:	Steel Tube	Size:	Standard Size Or Mini Size
Coupling Ratio:	50/50,40/60,30/70...5/95,1/99 Or Customized	Grade:	P Grade Or A Grade
Connector:	FC,SC,LC,ST Or Customized	Pigtail Type:	250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm
Fiber:	Corning G.657 A1 Fiber
High Light:	SSC Fiber Optic Coupler , 1x2 Fiber Optic Coupler , 1550nm Single Mode Optic Splitter

1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)

1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC) features low excess loss, high stability and reliability. It is widely used for optical fiber communication systems and CATV systems.

Features
Low excess

loss Low PDL

High stability and reliability

Application
CATV
Optical communication systems
Testing instruments

Specifications

Grade		P	A
Parameter		P	A
Operating wavelength (nm)		1310 or 1550, others on request
Operating bandwidth (nm)		± 15
Typical excess loss (dB)		0.07	0.1
Insertion loss (dB)	50/50	≤3.4	≤3.6
	45/55	≤4.1/3.1	≤4.3/3.3
	40/60	≤4.4/2.6	≤4.7/2.8
	35/65	≤5.2/2.3	≤5.5/2.5
	33/67	≤5.4/2.2	≤5.7/2.3
	30/70	≤5.7/1.9	≤6.0/2.0
	25/75	≤6.6/1.7	≤7.0/1.8
	20/80	≤7.6/1.25	≤8.0/1.35
	15/85	≤9.2/1.0	≤9.6/1.2
	10/90	9.2~11.0/≤0.65	9.0~11.2/≤0.8
	5/95	12.0~14.2 /≤0.4	11.75~14.45/≤0.5
	3/97	14.05~16.55/≤0.3	13.75~16.85/≤0.4
	2/98	15.7~18.5/≤0.25	15.35~18.85/≤0.35
	1/99	18.55~21.5/≤0.2	18.15~22.0/≤0.3
PDL (dB)		≤0.10	≤0.15
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85

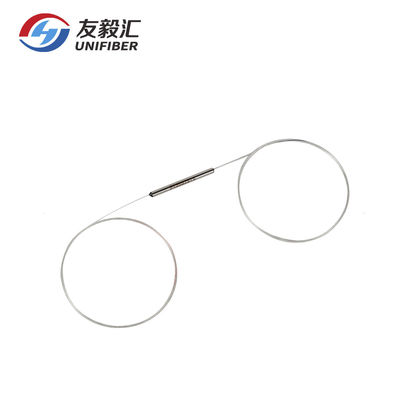

Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler 0
