1310nm 1550nm 1x2 Single Mode WBC Fiber Optic Splitter

Name: 1310nm 1550nm 1x2 Single Mode WBC Fiber Optic Splitter
Brand: UNIFIBER
SKU: 1x2 Single Mode 1310nm 1550nm or C+L Band Wide Band Coupler (WBC)
Price: 1.00 USD
Availability: InStock
Rating: 5 (128 reviews)

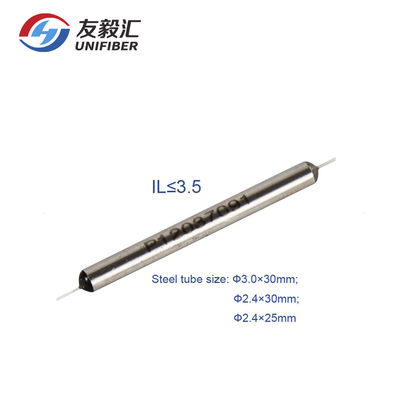

Large Image : 1310nm 1550nm 1x2 Single Mode WBC Fiber Optic Splitter

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER
Certification:	ROHS
Model Number:	1x2 Single Mode 1310nm 1550nm or C+L Band Wide Band Coupler (WBC)

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Blister case
Delivery Time:	5~7 Business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	1x2 Single Mode 1310nm 1550nm Or C+L Band Wide Band Coupler (WBC)	Wavelength:	1310nm Or 1550nm
Package:	Steel Tube	Size:	Standard Size Or Mini Size
Coupling Ratio:	50/50,40/60,30/70...5/95,1/99 Or Customized	Grade:	P Grade Or A Grade
Connector:	FC,SC,LC,ST Or Customized	Pigtail Type:	250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm
Fiber:	Corning G.657 A1 Fiber
High Light:	WBC Fiber Optic Splitter , 1310nm Fiber Optic Splitter , 1x2 Single Mode Optic Splitter

1x2 Single Mode 1310nm 1550nm or C+L Band Wide Band Coupler (WBC)

1x2 Single Mode 1310nm 1550nm or C+L Band Wide Band Coupler (WBC) uses unique bandwidth expanding techniques (asymmetric techniques) to build the wide band coupler (WBC). The WBC has an operating bandwidth of ± 40nm or EDFA C band or L band, and it features low excess loss and low wavelength depend loss (WDL).

Features
Low excess

loss Low PDL

High stability and reliability

Application
CATV
Optical communication systems
Testing instruments

Specifications

Grade		P	A		P	A
Parameter
Operating wavelength (nm)		1310 ,1550 or C+L Band			C Band or L Band
Operating bandwidth (nm)		± 40			1528 ~1565 or 1570 ~1605
Typical excess loss (dB)		0.07		0.1	0.07		0.1
Insertion loss (dB)	50/50	≤3.4		≤3.6	≤3.35		≤3.5
	45/55	≤4.1/3.1		≤4.3/3.3	≤4.0/3.0		≤4.2/3.2
	40/60	≤4.4/2.6		≤4.7/2.8	≤4.4/2.55		≤4.6/2.7
	35/65	≤5.2/2.3		≤5.5/2.5	≤5.1/2.2		≤5.3/2.4
	33/67	≤5.4/2.2		≤5.7/2.3	≤5.3/2.1		≤5.5/2.25
	30/70	≤5.7/1.9		≤6.0/2.0	≤5.7/1.85		≤5.9/1.95
	25/75	≤6.6/1.7		≤7.0/1.8	≤6.5/1.65		≤6.8/1.75
	20/80	≤7.6/1.25		≤8.0/1.3	≤7.55/1.25		≤7.8/1.3
	15/85	≤9.2/1.0		≤9.6/1.2	≤9.0/1.0		≤9.3/1.1
	10/90	9.55~10.65/≤0.65		9.3~10.9/≤0.8	9.55~10.60/≤0.65		9.35~10.85/≤0.8
	5/95	12.40~13.80/≤0.4		12.10~14.10/≤0.5	12.45~13.75/≤0.4		12.15~14.05/≤0.45
	3/97	14.50~16.15/≤0.3		14.15~16.50/≤0.4	14.55~16.10 /≤0.3		14.20~16.45/≤0.35
	2/98	16.10~18.05/≤0.25		15.70~18.45/≤0.35	16.2~17.95/≤0.25		15.80~18.35/≤0.3
	1/99	19.05~21.15/≤0.2		18.55~21.65/≤0.3	19.1~21.1 /≤0.2		18.65~21.55/≤0.3
PDL (dB)		≤0.10		≤0.15	≤0.10		≤0.15
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85

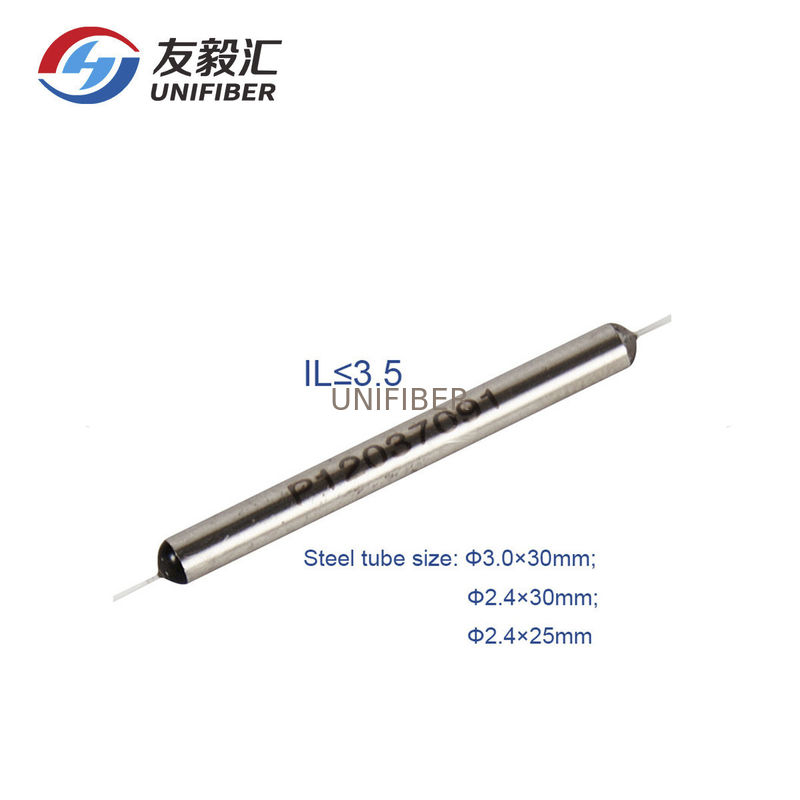

1310nm 1550nm 1x2 Single Mode WBC Fiber Optic Splitter 0
