1x3 1x4 Single Mode Optical Couplers 1310nm 1550nm

Name: 1x3 1x4 Single Mode Optical Couplers 1310nm 1550nm
Brand: UNIFIBER
SKU: 1x3 1x4 Monolithic Single Mode Optical Couplers 1310nm/1550nm
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (141 reviews)

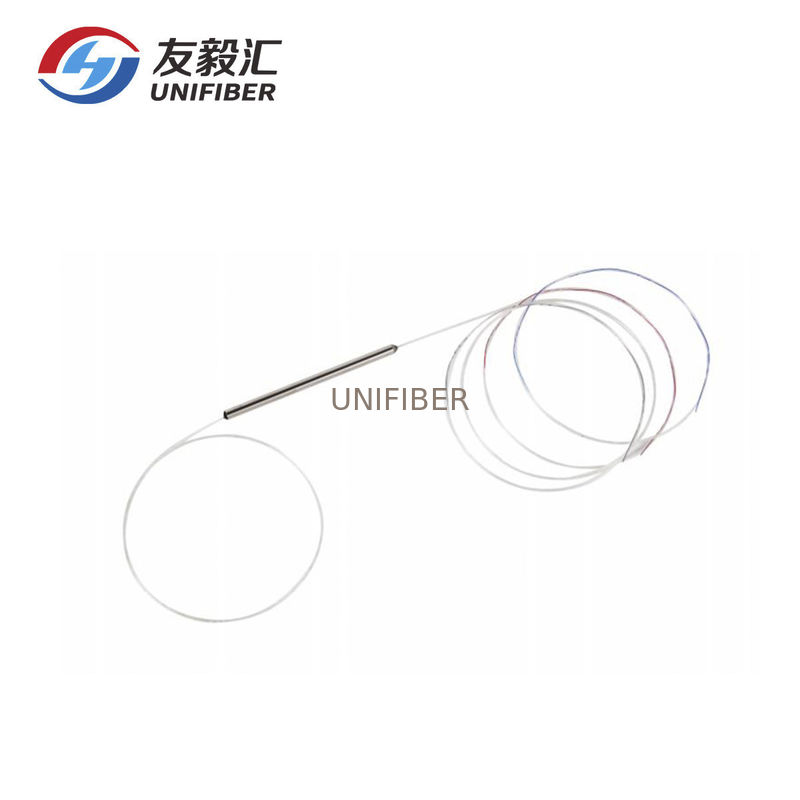

Large Image : 1x3 1x4 Single Mode Optical Couplers 1310nm 1550nm

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER
Certification:	ROHS
Model Number:	1x3 1x4 Monolithic Single Mode Optical Couplers 1310nm/1550nm

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable

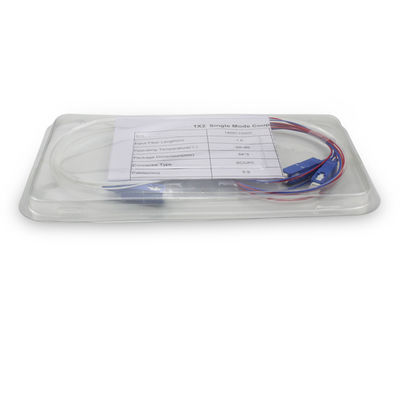

Packaging Details:	Blister case
Delivery Time:	5~7 Business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/day

Contact Now

Detailed Product Description

Product:	1x3 1x4 Monolithic Single Mode Optical Couplers 1310nm/1550nm	Wavelength:	1310nm/1550nm
Package:	Steel Tube	Size:	Standard Size Or Mini Size
Coupling Ratio:	50/50,40/60,30/70...5/95,1/99 Or Customized	Grade:	P Grade Or A Grade
Connector:	FC,SC,LC,ST Or Customized	Pigtail Type:	250um Bare Fiber,900um Loose Tube,2.0mm,3.0mm
Fiber:	Corning G.657 A1 Fiber
High Light:	1x4 Single Mode Optical Couplers , 1550nm Single Mode Optical Couplers , 1310nm Plc Splitter Cassette

Compact Size 1x3 1x4 Monolithic Single Mode Optical Couplers 1310nm/1550nm

1×3, 1×4 monolithic couplers have the compact package size, low insertion loss, and high reliability performance. These couplers were designed for optical modules, the fiber sensors and fiber testing instruments.

Features
Low excess

loss Low PDL

High stability and reliability

Application
CATV
Optical communication systems
Testing instruments

Specifications

Type		Normal		Ultra Broadband
Parameter		Normal		Ultra Broadband
Grade		P	A	P	A
Operating wavelength (nm)		1310 and 1550
Operating bandwidth (nm)		±40		±80
Typical excess loss (dB)		0.07	0.1	0.07	0.1
Insertion loss (dB)	50/50	≤3.6	≤3.8	≤3.8	≤4.0
	45/55	≤4.2/3.2	≤4.4/3.4	≤4.5/3.3	≤4.7/3.5
	40/60	≤4.7/2.7	≤4.9/2.9	≤5.0/2.8	≤5.2/3.0
	35/65	≤5.4/2.4	≤5.7/2.6	≤5.8/2.5	≤6.1/2.7
	33/67	≤5.7/2.2	≤6.0/2.4	≤6.1/2.3	≤6.4/2.5
	30/70	≤6.0/1.9	≤6.3/2.1	≤6.4/2.0	≤6.7/2.2
	25/75	≤7.0/1.7	≤7.3/1.9	≤7.3/1.7	≤7.7/1.9
	20/80	≤7.9/1.3	≤8.4/1.4	≤8.3/1.3	≤8.7/1.5
	15/85	≤9.5/1.0	≤10.0/1.2	≤9.6/1.0	≤10.1/1.2
	10/90	9.2~11.2/≤0.75	8.80~11.40 /≤0.8	9.15~11.05 /≤0.75	8.75~11.45/≤0.8
	5/95	12.05~14.15/≤0.4	11.60~14.60 /≤0.5	12.00~14.25/≤0.45	11.50~14.70/≤0.5
	3/97	14.1~16.5/≤0.35	13.60~17.05/≤0.45	14.00~16.60 /≤0.35	13.45~17.15/≤0.45
	2/98	15.75~18.45/≤0.3	15.15~19.00/≤0.4	15.60~18.60/≤0.3	14.95~19.20/≤0.4
	1/99	18.6~21.6 /≤0.25	17.95~22.25/≤0.35	18.35~21.85/≤0.25	17.60~22.55/≤0.35
PDL (dB)		≤0.15	≤0.2	≤0.15	≤0.2
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85

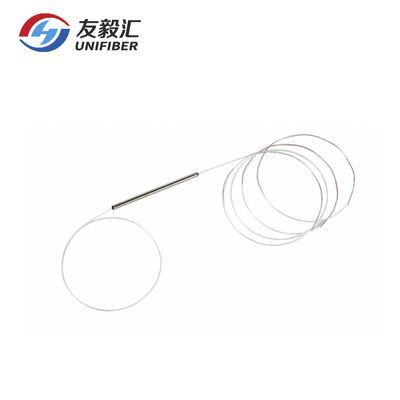

1x3 1x4 Single Mode Optical Couplers 1310nm 1550nm 0
