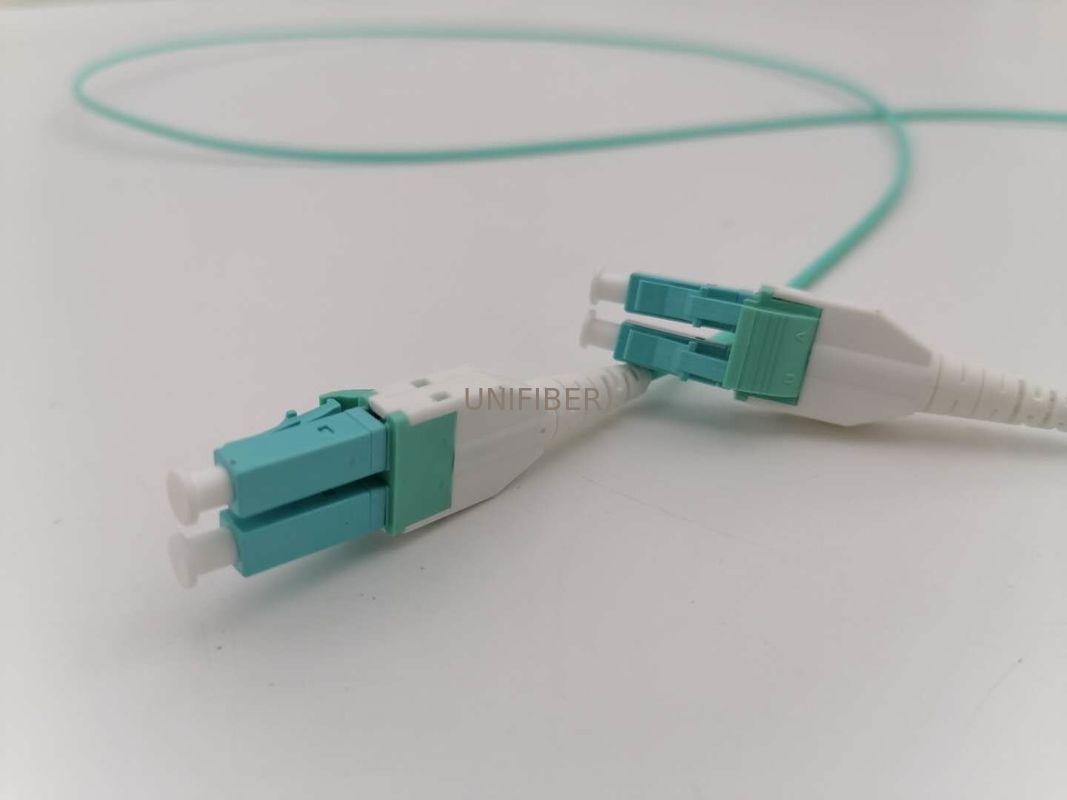

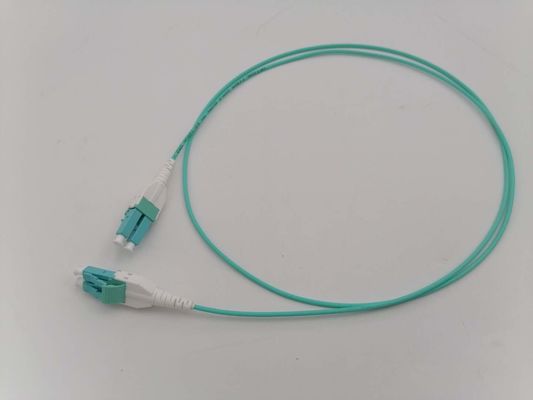

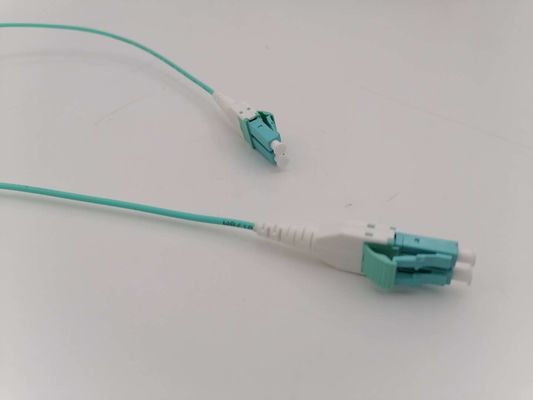

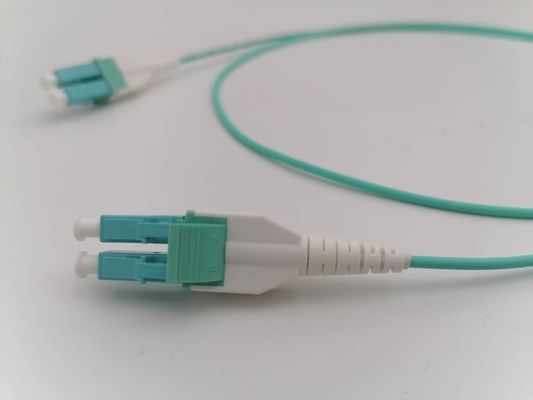

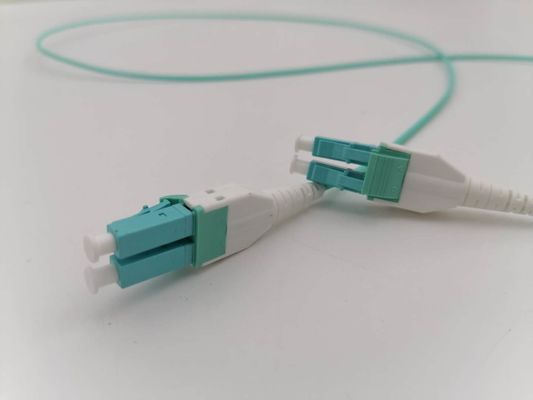

Switchable Uniboot OS2 2.0mm BIF Fiber Optic Patch Cable Duplex LC

Large Image : Switchable Uniboot OS2 2.0mm BIF Fiber Optic Patch Cable Duplex LC

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	LC Switchable Uniboot

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	LC Switchable Uniboot	Fiber Type:	Multimode OM3
Connector:	LC To LC	Cable Jacket:	Switchable Uniboot LC
Color:	Green	Length:	1/3/5/7M Or Others
Fiber Counts:	Duplex
High Light:	BIF Fiber Optic Patch Cable , 2.0mm Fiber Optic Patch Cable , Switchable Uniboot Optic Patch Cord

The LC-LC Uniboot connector allows two fibers to be carried through a 2.0mm single jacket, used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Features
Easily switch polarity without tools or damage to fiber

Available in OM3, OM4 and OS2

Optional push/pull tab
Flexible plenum rated jacket
Bend insensitive fiber on all Multimode fibers, optional for Single Mode fibers
Custom lengths, jacket colors and labeling optionsUniboot (one boot) design

Application
Data center ultra high-density cabling

Fiber optic communication networks
Optical access network
Telecommunication networks

Connector	LC to LC Uniboot Polarity Reversible	Jacket OD	2.0mm
Fiber Mode	SM/MM/OM3/OM4	Jacket Color	Yellow/Aqua / Violet / Purple
Polish	UPC to UPC	Wavelength	1310/1550nm or 850/1300nm
Fiber Type	Duplex	Jacket Material	LSZH / PVC / OFNP
Insertion loss	≤0.3dB	Attenuation at 850nm	3.0 dB/km
Return loss	≥30dB	Attenuation at 1300nm	1.0 dB/km
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Polarity	A(Tx) to B(Rx)	Minimum Bend Radius	30 mm
