Lc Uniboot Jumpers 2.0mm G657a1 Lszh 7m fiber optic cable

Lc Uniboot Jumpers 2.0mm G657a1 Lszh 7m fiber optic cable
Lc Uniboot Jumpers 2.0mm G657a1 Lszh 7m fiber optic cable Lc Uniboot Jumpers 2.0mm G657a1 Lszh 7m fiber optic cable Lc Uniboot Jumpers 2.0mm G657a1 Lszh 7m fiber optic cable

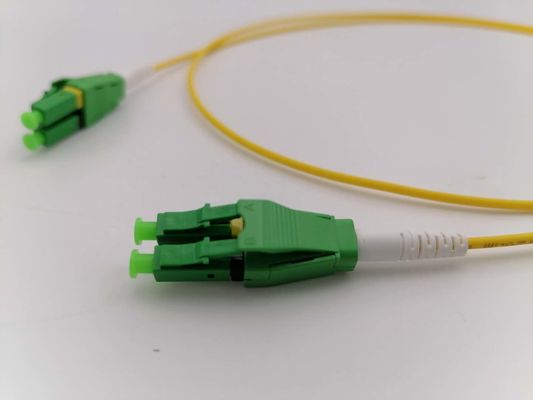

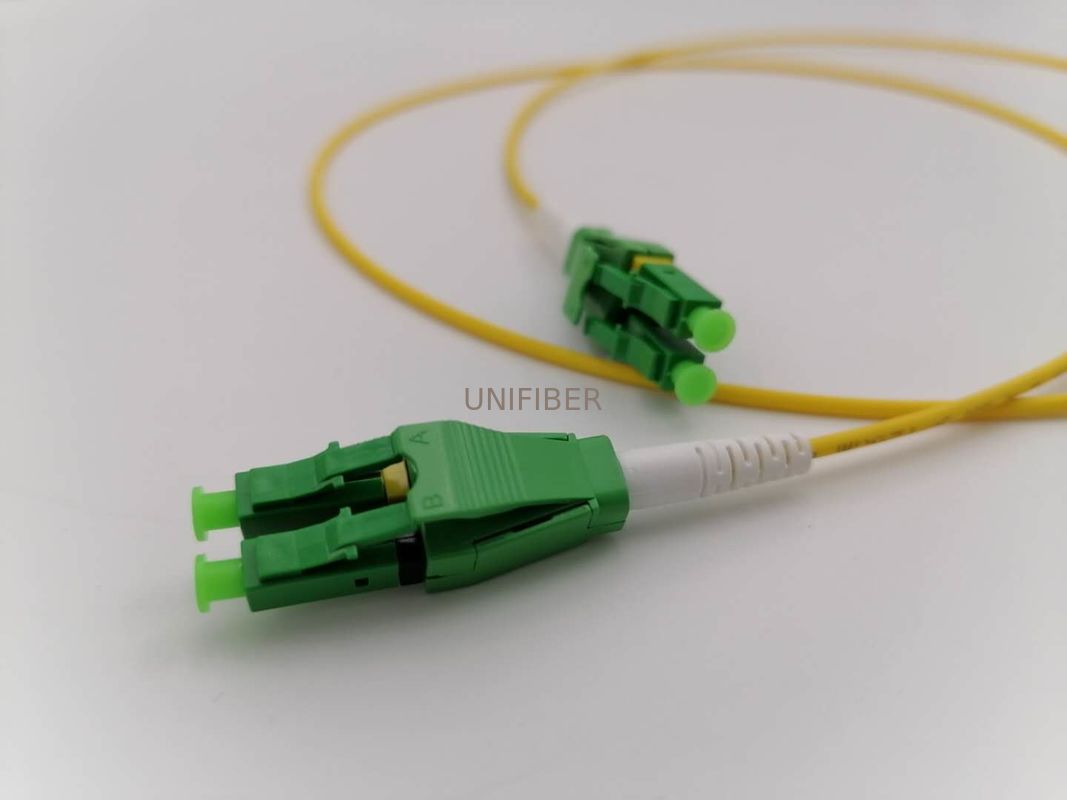

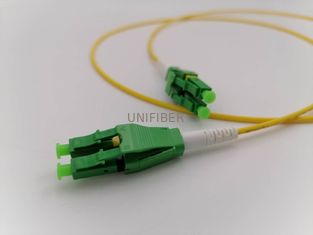

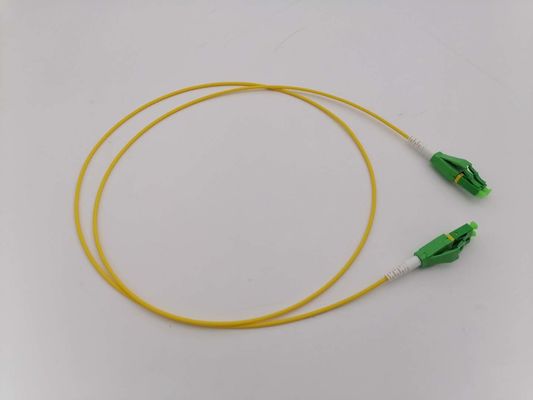

Large Image :  Lc Uniboot Jumpers 2.0mm G657a1 Lszh 7m fiber optic cable

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: reverse polarity lc uniboot jumpers
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/day
Detailed Product Description
Product: Reverse Polarity Lc Uniboot Jumpers Fiber Type: OS2 9/125um
Connector: Switchable Uniboot LC Cable Jacket: LSZH
Fiber: G657A1 Or G657A2 Color: Yellow
Fiber Counts: Duplex Length: 1/2/3/5/7M Or Others
High Light:

Lszh 7m Fiber Optic Cable

,

G657a1 Fiber Optic Cable

,

Lc Uniboot Jumpers Patch Cord

Single mode duplex reverse polarity lc uniboot jumpers allows two fibers to be carried through a 2.0mm single jacket, used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.



Features

Available in OM3, OM4 and OS2

Optional push/pull tab

Easily switch polarity without tools or damage to fiber

Flexible plenum rated jacket
Bend insensitive fiber on all Multimode fibers, optional for Single Mode fibers
Custom lengths, jacket colors and labeling optionsUniboot (one boot) design


Application
Data center ultra high-density cabling

Telecommunication networks

Optical access network

Fiber optic communication networks


Connector
LC to LC Uniboot Polarity Reversible
Jacket OD
2.0mm
Fiber Mode
SM/MM/OM3/OM4
Jacket Color
Yellow/Aqua / Violet / Purple
Polish
UPC to UPC
Wavelength
1310/1550nm or 850/1300nm
Fiber Type
Duplex
Jacket Material
LSZH / PVC / OFNP
Insertion loss
≤0.3dB
Attenuation at 850nm
3.0 dB/km
Return loss
≥30dB
Attenuation at 1300nm
1.0 dB/km
Operating temperature
-40~75°C
Storage temperature
-45~85°C
Polarity
A(Tx) to B(Rx)
Minimum Bend Radius
30 mm



Lc Uniboot Jumpers 2.0mm G657a1 Lszh 7m fiber optic cable 0
