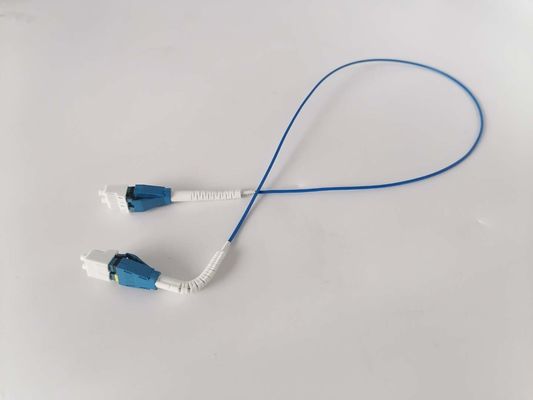

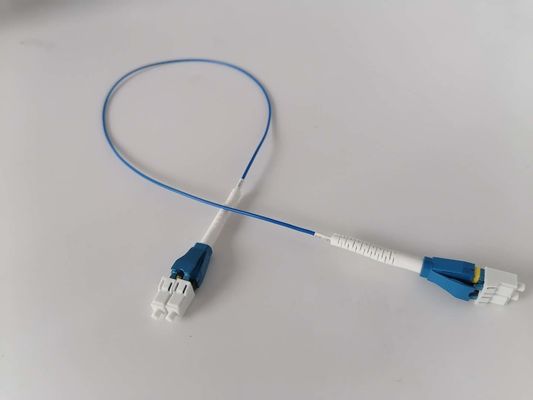

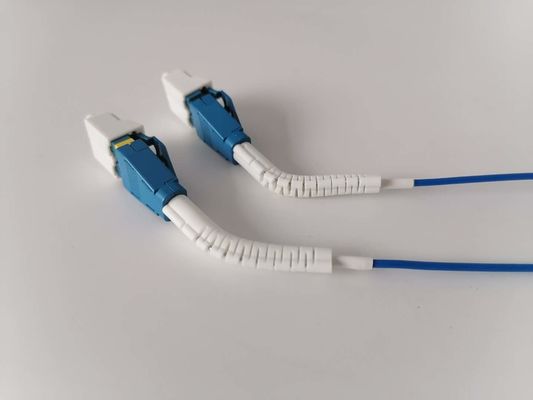

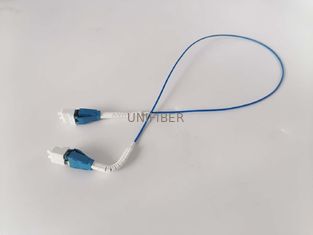

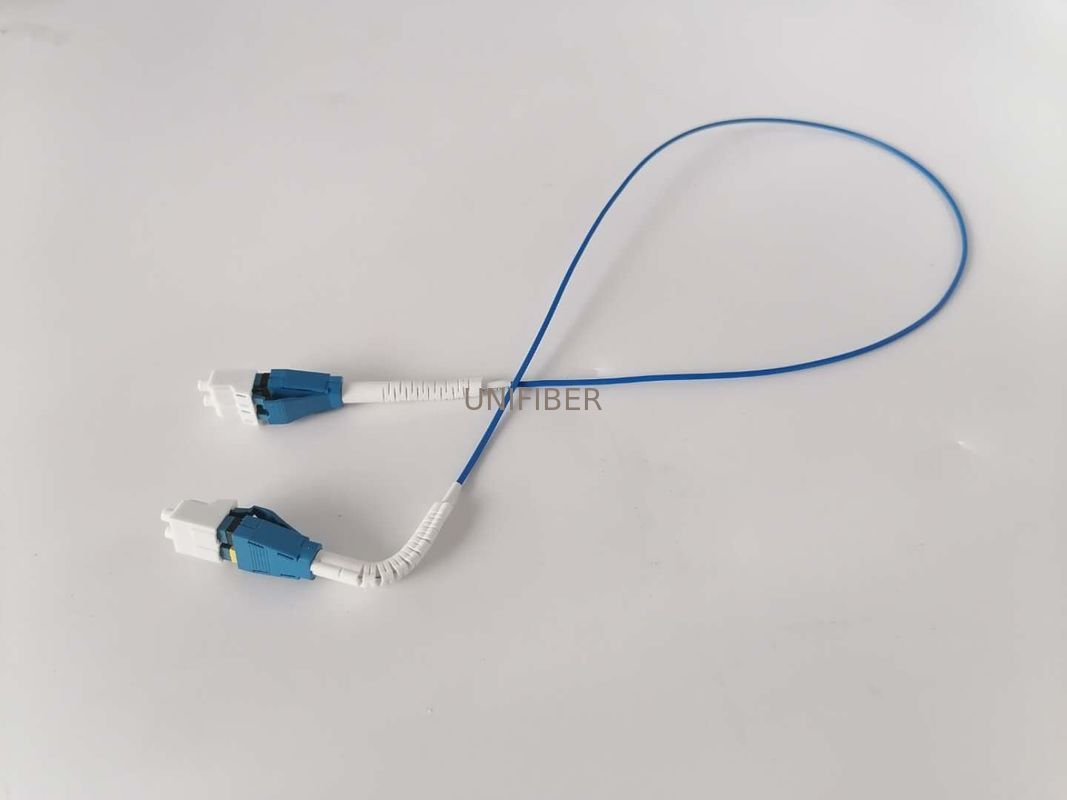

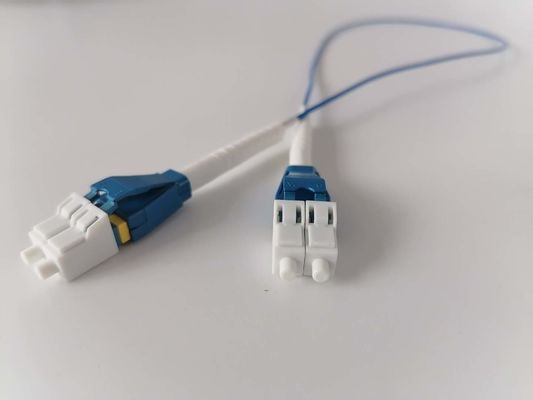

Flexible Angle LC Uniboot OS2 G567A1 Optical Patch Cord

Large Image : Flexible Angle LC Uniboot OS2 G567A1 Optical Patch Cord

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	Flexible Angle LC Uniboot Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	Flexible Angle LC Uniboot Patch Cord	Fiber Type:	Single Mode 9/125um
Connector:	Switchable Uniboot LC	Cable Jacket:	LSZH
Color:	Blue	Fiber Counts:	Duplex
Length:	1/2/3/5/7M Or Others
Highlight:	LC Uniboot Optical Patch Cord , G567A1 Optical Patch Cord , OS2 Single Mode Patch Cord

Flexible Angle LC Uniboot Patch Cord allows two fibers to be carried through a 2.0mm single jacket, used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Features

Polarity Switchable

OFNP Blue Jacket

With Flexible Angle For Any Direction

Corning Ultra SMF-28 G657A1 fiber

Optional push/pull tab

Available in OM3, OM4 and OS2

Application

Data center Solution

Telecommunication networks

Optical access network

Fiber optic communication networks

Connector	LC to LC Uniboot Polarity Reversible	Jacket OD	2.0mm
Fiber Mode	SM/MM/OM3/OM4	Jacket Color	Yellow/Aqua / Violet / Purple
Polish	UPC to UPC	Wavelength	1310/1550nm or 850/1300nm
Fiber Type	Duplex	Jacket Material	LSZH / PVC / OFNP
Insertion loss	≤0.3dB	Attenuation at 850nm	3.0 dB/km
Return loss	≥30dB	Attenuation at 1300nm	1.0 dB/km
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Polarity	A(Tx) to B(Rx)	Minimum Bend Radius	30 mm

Flexible Angle LC Uniboot OS2 G567A1 Optical Patch Cord 0
