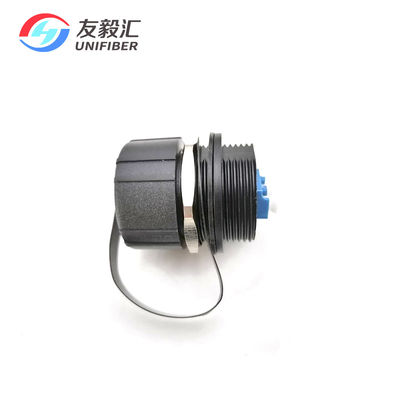

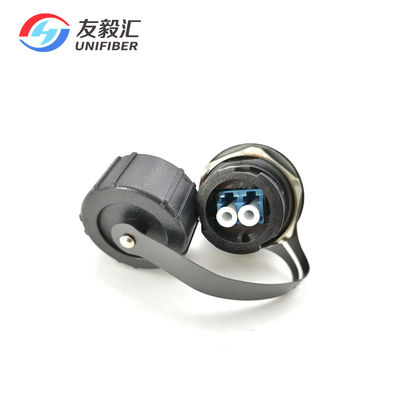

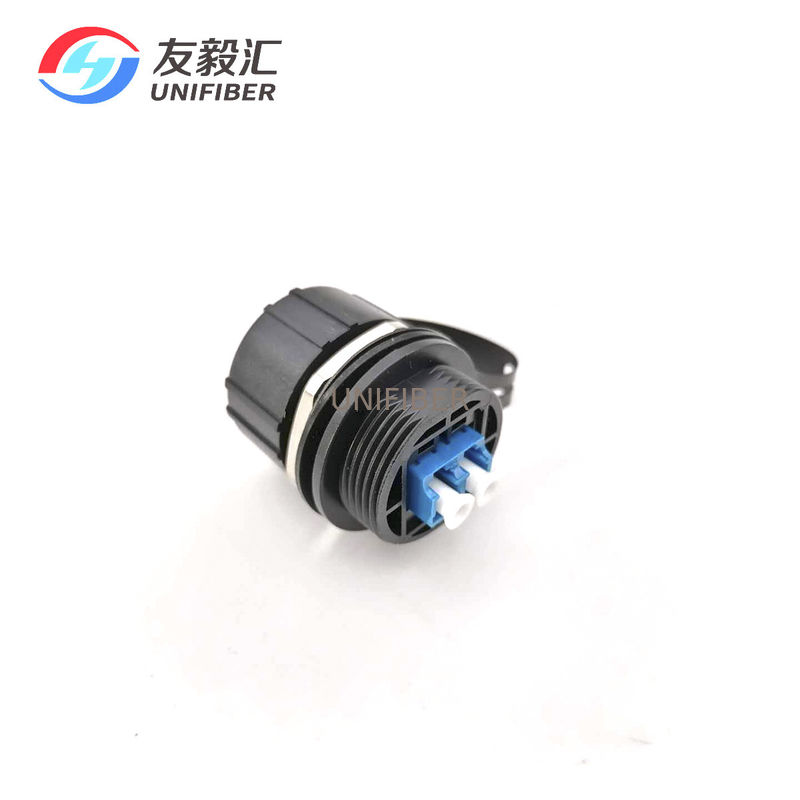

Fiberhub Enclosure FTTA ODVA LC Duplex Bulkhead Adapter

Name: Fiberhub Enclosure FTTA ODVA LC Duplex Bulkhead Adapter
Brand: UNIFIBER-OEM
SKU: ODVA LC Duplex bulkhead adapter
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (117 reviews)

Large Image : Fiberhub Enclosure FTTA ODVA LC Duplex Bulkhead Adapter

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	ODVA LC Duplex bulkhead adapter

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union
Supply Ability:	10000PCS/DAY

Contact Now

Detailed Product Description

Product:	ODVA LC Duplex Bulkhead Adapter	Connector:	ODVA LC Duplex
Insertion Loss:	0.25dB	Return Loss:	APC>65dB
Waterproof Grade:	IP67	Installation:	Fiberhub Enclosure
Application:	FTTA
High Light:	LC Duplex Bulkhead Adapter , ODVA LC Duplex Bulkhead Adapter , FTTA Optical Fiber Bulkhead Adapter

FTTA Outdoor waterproof ODVA LC Duplex bulkhead adapter

The ODVA SC/LC/MPO adapter meets IP 67 environmental sealing ratings and is the ideal choice for a low cost and easy to use solution in Industrial, Fiber to the Antenna (FTTA), or any other harsh environmental applications. The dust cap is the ideal way to protect ruggedized patch cords from exposure to elements or accidental damage when not mated to an outlet in your ruggedized cabling system.

Application

BBU, RRU, RRH, LTE

Fiber-to-the-Antenna (FTTA)

Automation and Industrial Cabling
Military Communications

Features:

Easy to operate and high current carrying capability.
Cable to cable and cable to receptacle connection.

Comply with ODVA SC/LC/MPO

Waterproof for outdoor harsh environments.

Operating Performance	ODVA LC Duplex bulkhead adapter
Operating Performance	PC	APC
Insertion Loss (dB)	< 0.3	< 0.3
Durability (500 Mating) (dB)	< 0.1	< 0.1
Operation Temperature (°C)	-40 to 80	-40 to 80
Retention Force (N)	200-600	200-600
Tensile Strength (kgf)	10	10
Housing Material	PC	PC
Mounting Style	Screw/Clip	Screw/Clip
Sleeve Alignment Material	Ceramic (Grade A)	Ceramic (Grade A)
Housing Color	Black	Black

Fiberhub Enclosure FTTA ODVA LC Duplex Bulkhead Adapter 0
