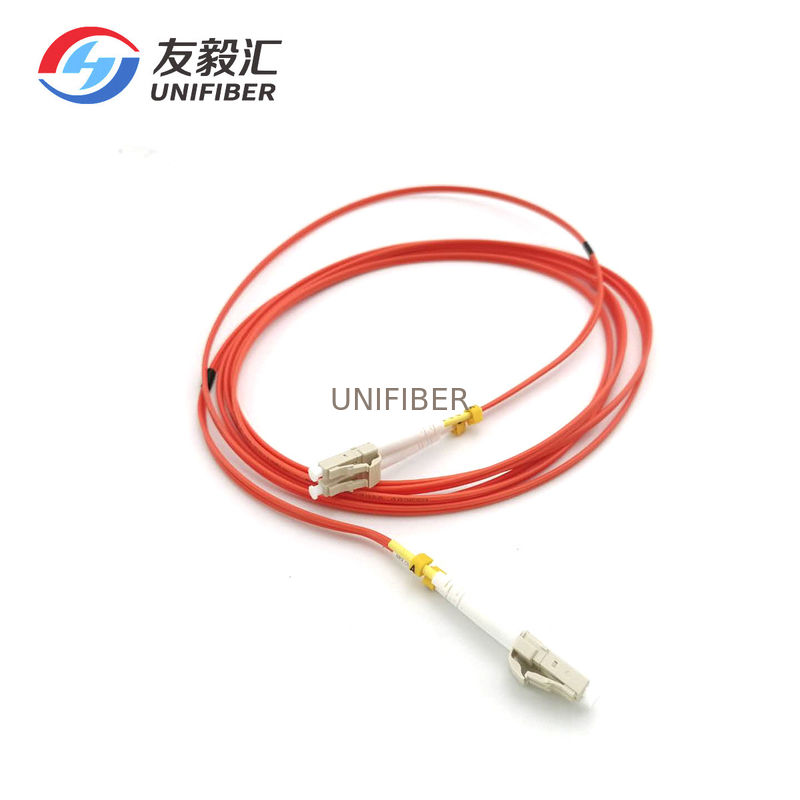

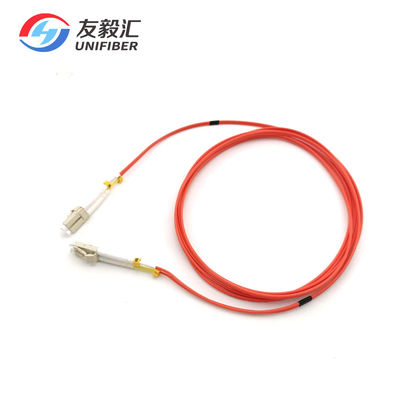

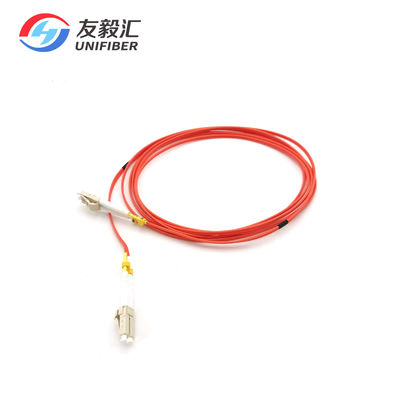

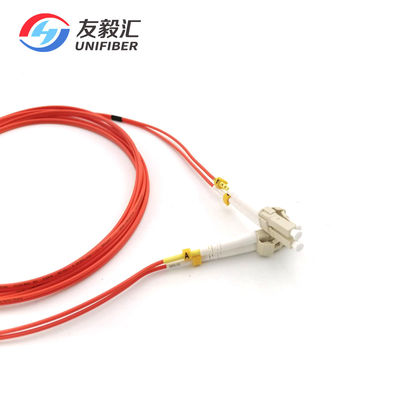

OM1 62.5/125um Duplex LSZH Fiber Optic Patch Leads LC LC

Name: OM1 62.5/125um Duplex LSZH Fiber Optic Patch Leads LC LC
Brand: UNIFIBER-OEM
SKU: Fiber optic patch cord LC LC Multimode
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (192 reviews)

Large Image : OM1 62.5/125um Duplex LSZH Fiber Optic Patch Leads LC LC

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	Fiber optic patch cord LC LC Multimode

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	Fiber Optic Patch Cord LC LC Multimode	Fiber Mode:	Multimode 62.5/125um
Connector:	LC Duplex	Length:	1m 2m 3m 4m 5m Or Others
Cable Jacket:	PVC/OFNR/LSZH	Package:	PE Bag
Brand OEM:	Support
High Light:	125um Fiber Optic Patch Leads , OM1 Fiber Optic Patch Leads , LSZH Fiber Optic Patch Cords

Fiber optic patch cord LC LC Multimode OM1 62.5/125um Duplex 1/2/3/5 meters fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

Features

PVC/OFNR/OFNP/LSZH Jacket avaliable

2.0/3.0mm diameter avaliable

Simplex or Duplex Avaliable

1/2/3/5m or any other length avaliable

Application
Data Centre
Telecommunication networks
CATV
LAN and WAN
FTTX
Broadband network

Parameters	Fiber optic patch cord LC LC Duplex Multimode OM1 62.5/125um
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.

OM1 62.5/125um Duplex LSZH Fiber Optic Patch Leads LC LC 0
