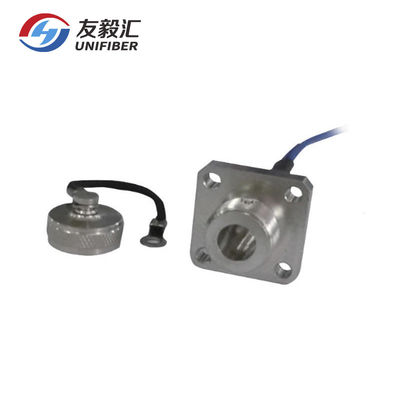

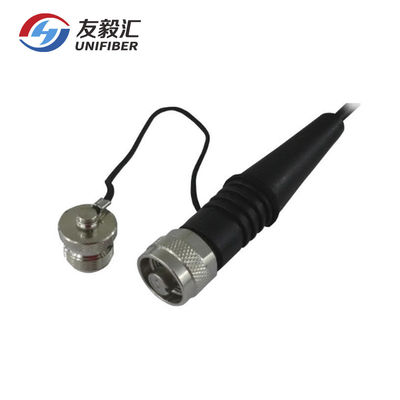

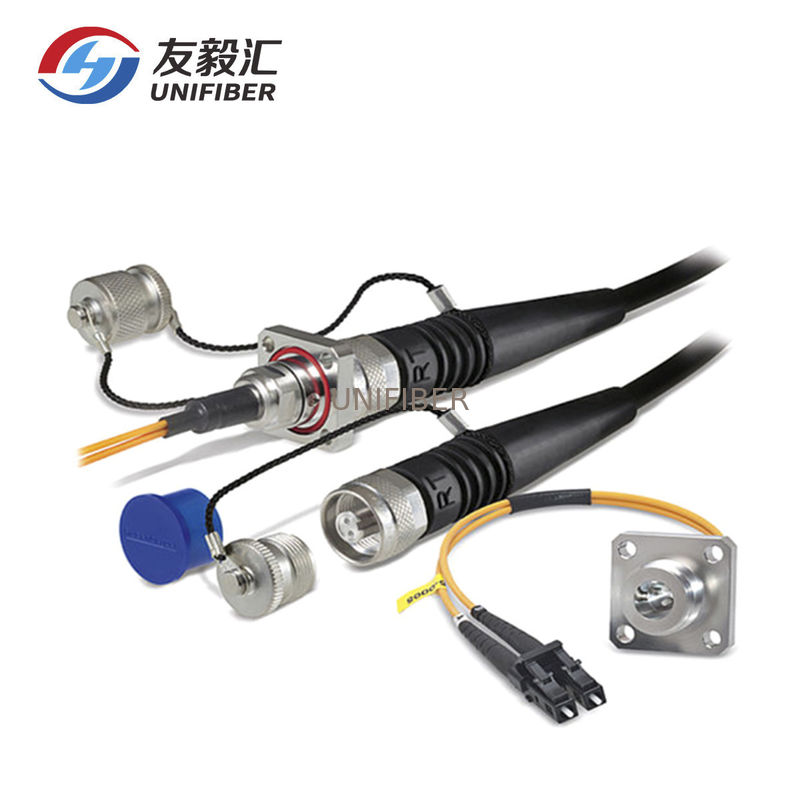

RDC 2F ODC FTTA CPRI Fiber Cable Assembly Rosenberger Duplex Connector

Rosenberger Duplex Connector RDC Outdoor Waterproof 2F ODC FTTA CPRI Cable Assemblie Using as flexible connection joint in fiber optic network, where there is device with a fiber optic interface installed in outdoor or harsh environment. Typical is for mobile communication (FTTA), broadcast, smart-grid cabling application.

Feature

•2 fibers connector
•Support singlemode and multimode
•Robust connector system with screwed locking mechanism
•Components of the N coaxial connector according to MILPRF-39012 enable a conversion
•With the standard panel cutout, the receptacle can easily replace a coaxial connector type
•Mated or with attached protection cap, plug and receptacle are sealed according to IEC 60529 IP67
•Captive protection cap, plastic dust cap and metal cap without rope are available
•PC and APC are available
•Cable connector (male/female) and flange connector (female) are available

Application
-Indoor and Outdoor applications;

-Outdoor & Military communication equipment connection;

-Oil field, mine communication connection;

-Far transmission wireless base station;

-Video Surveillance system;

-Optical fiber sensor.
