Product Details:
Payment & Shipping Terms:
|
| Product: | SC/APC To SC/APC G657A2 LSZH FTTH Drop Cable Patch Cord | Connector: | SC/APC |
|---|---|---|---|
| Cable Structure: | 2.0*5.0mm Flat Self-Support | Cable Jacket: | LSZH |
| Fiber Type: | G657A1 Or G657A2 | Length: | 1~150m |
| Application: | FTTH | OEM: | Support |
| Highlight: | G657A2 Drop Cable Patch Cord,30M Drop Cable Patch Cord,LSZH SC APC Patch Cable |
||

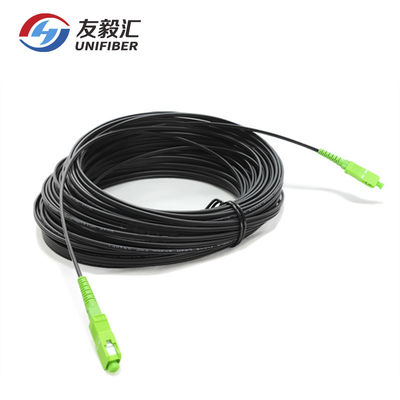

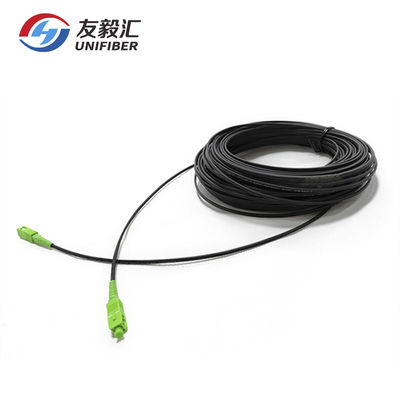

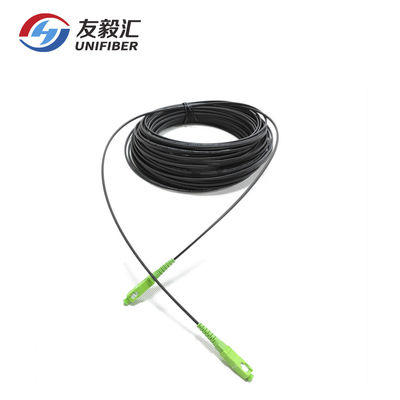

SC/APC to SC/APC G657A2 LSZH FTTH Drop Cable Patch Cord with two SC APC Connectors, easy to install, no need to splicing.The drop cable with 1.0mm steel wire messeger, 0.5mm FRP or 0.4mm steel wire strengthen member and LSZH outer sheath.it used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.
FEATURES
Low insertion loss and back reflection loss
Excellent mechanical endurance
Good in repeatability and exchange
Green Production, CE, RoHS Standard
Φ2.0*5.0mm; Φ2.0*3.0mm
Connector Types: LC, FC, SC,ST for option
Fiber Mode: G652D, G.657A1, G657A2, G657B3
APPLICATION
FTTH network for indoor and outdoor
terminal box and communication
Local Area Network and Building Cabling Network
Specification
| Fiber Type | G.657.A1, G657A2 or as request |
| Fiber Count | 1 CORE or as request |
| Outer Sheath | LSZH or or as request |
| Strengthen Member | FRP, or steel wire |
| Messenger | steel wire |
| Package | 15m/roll or as request |
| Weight | to be confirmed |
| Temperature | -20 to +60 Celcius |
| Package | in carton |
Contact Person: Kerry Sun
Tel: +86-135-9019-2305
Fax: 86-755-29239581
