Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable

Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable
Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable

Large Image :  Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable

Product Details:
Place of Origin: CHINA
Brand Name: UNIFIBER-OEM
Certification: ROHS
Model Number: MPO to LC duplex breakout cable
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: PE bag
Delivery Time: 3~5 business days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Detailed Product Description
Product: 8 Fiber OM4 MPO To LC Duplex Breakout Cable 1M Connector A: MPO Female
Polarity: B Connector B: LC Duplex
Fiber Type: OM4 Cable Jacket: Violet
Length: 1m 2m 3m 4m 5m Or Others
High Light:

MPO To LC Duplex B reakout Cable

,

Polarity B Duplex Breakout Cable

,

1M 8 Fiber Patch Cord

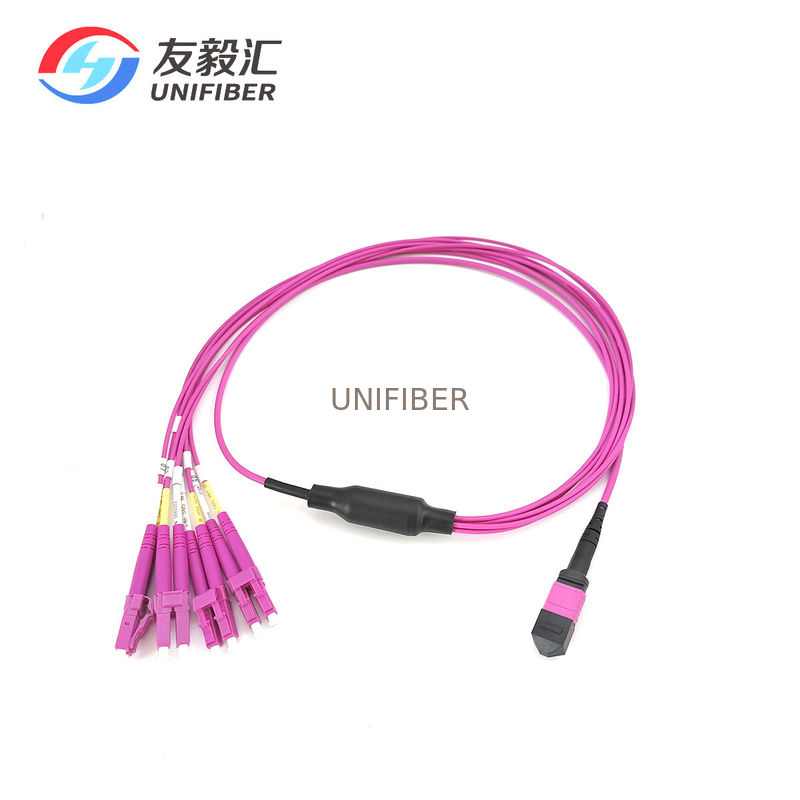

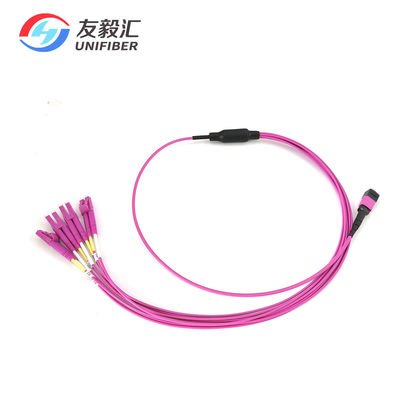

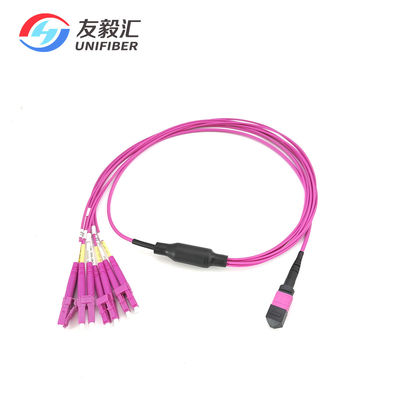

8 Fiber OM4 MPO to LC duplex breakout cable Polarity B 1M

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.



FEATURES
100% pre-terminated and tested in factory to ensure transfer performance

Rapid configuration and networking, reduce installation time

Supports 40G and 100G network applications

Jacket material: LSZH, OFNR, OFNP available

Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available



APPLICATION
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures



Type Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm

Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable 0Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable 1Polarity B 1M 8 Fiber OM4 MPO To LC Duplex Breakout Cable 2
