Product Details:
Payment & Shipping Terms:
|
| Product: | G657B3 SC APC-SC APC Drop Cable Patch Cord 3.0mm LSZH White 1M | Connector: | SC/APC |
|---|---|---|---|
| Fiber Type: | G657B3 | Cable Jacket: | LSZH |
| Cable Diameter: | 3.0mm | Length: | 1M |
| Application: | FTTH | ||
| High Light: | G657B3 Drop Cable Patch Cord,APC Drop Cable Patch Cord,3.0mm LSZH Patch Cord |
||

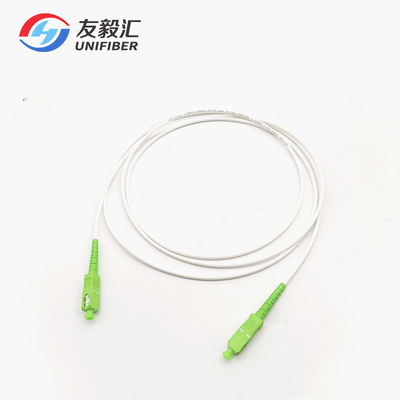

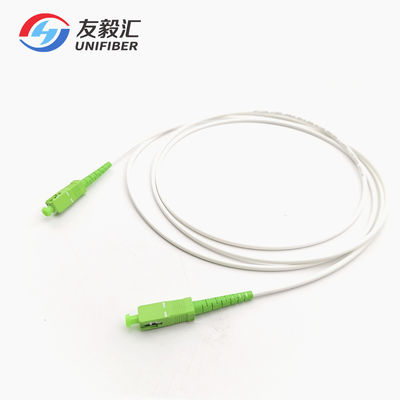

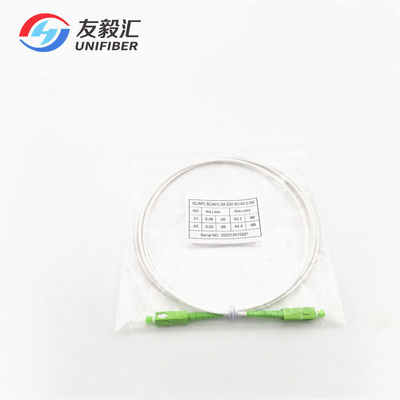

G657B3 SC APC-SC APC Drop Cable Patch Cord 3.0mm LSZH White 1M
FTTH Drop cable patch cord is a kind of patch cord but assembly with ftth drop cable. Used widely in Fact plate, terminal box, ONU tec. For ftth drop cable patch cords, normally use G657A1/G657A2 or G657B3 fiber with LSZH jacket, G657B3 fiber with the smallest minimum bending radius of 5mm, which become more and more popular for last 100m cable in FTTH project.
Features:
Low insertion loss and back reflection loss
Excellent mechanical endurance
Good in repeatability and exchange
Green Production, CE, RoHS Standard
Application:
FTTX Solution
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
| tem | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
