Product Details:
Payment & Shipping Terms:
|

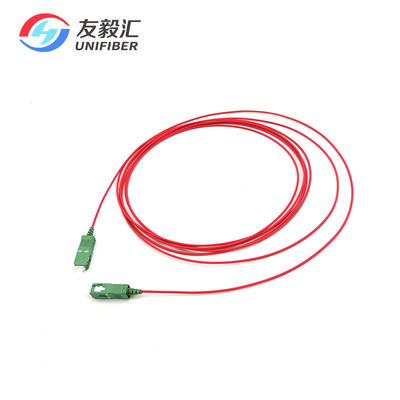

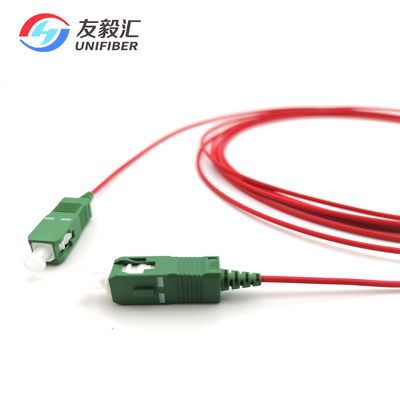

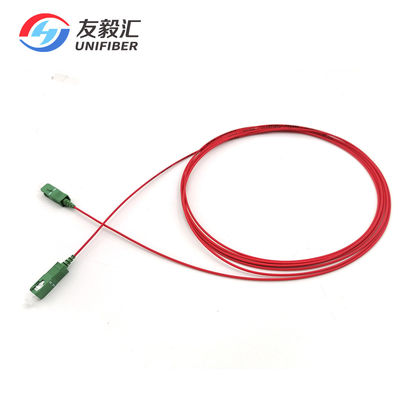

| Product: | SC APC To SC APC Patch Cord 1.6mm 3.5M | Fiber Type: | G657A2 |
|---|---|---|---|
| Fiber Mode: | Single Mode | Connector: | SC/APC |
| Cable Jacket: | LSZH | Jacket Color: | Red |
| Cable Diameter: | 1.6mm | Length: | 3.5m |
| High Light: | G657A2 Fiber Patch Cord,OS2 Fiber Patch Cord,1.6mm SC APC Patch Cord |
||
Compare with G657A1, G657A2 with smaller bending radius of 7.5mm, it offers flexible characteristics for easier deployment in streets, buildings and homes.It reduces the roll-out cost for operators and the total cost of ownership (TCO) of an FTTH network, There are with Singlemode, Multimode, OM3,OM4,OM5 for options, always come as 1.2/1.6/2.0/3.0mm with PVC or LSZH. UNIFIBER can customized make patch cords with different color jacket per customer's requirement.
Features:
Low insertion loss.
High return loss.
High stability and reliability.
Applications:
FTTH, LAN, PON & Optical CATV
Local ring net
Optical fiber communication system
Optical fiber test equipment
Optical fiber sensor
| Optical Specification | ||||
| Test Condition | Performance | |||
| SC/APC | FC SC ST LC MU/UPC | FCSCSTLC/APC | ||
|
Insetion Loss IL |
SM:1310nm/1550nm LD Sourse | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| RL | SM:1310nm/1550nm LD Sourse | ≥60dB | ≥50dB | ≥60dB |
| Mechanical Specification | ||||
| Connect Randomly | ≤0.2dB | |||
| Vibration 5-50Hz 1.5mm Amplitude | ≤0.2dB | |||
| 0-15kg Tensile Force | ≤0.2dB | |||
| Environmental Specification | ||||
| Durability 1000Cycles | ≤0.2dB | |||
| 85℃,During 100 | ≤0.2dB | |||
| -40℃, During 100 | ≤0.2dB | |||
| -40℃-85℃, During 5 Cycles | ≤0.2dB | |||
| Humidity | ≤0.2dB | |||
