Sc Apc To Sc Apc G657A2 1.6mm LSZH Single Mode Patch Cords

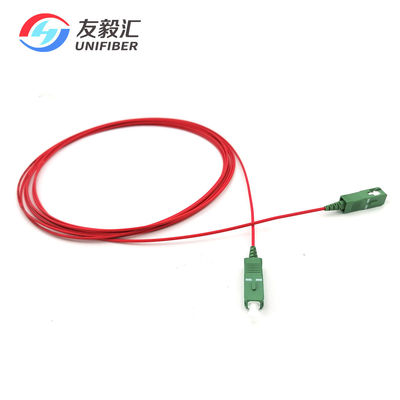

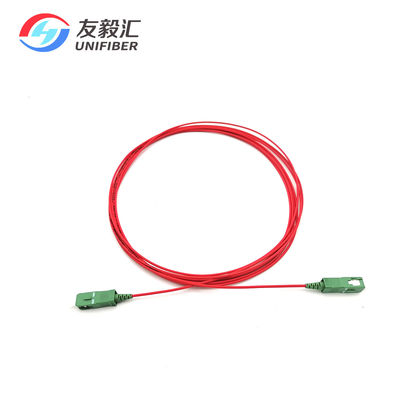

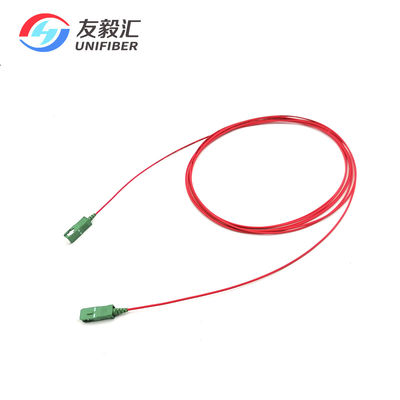

Large Image : Sc Apc To Sc Apc G657A2 1.6mm LSZH Single Mode Patch Cords

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIFIBER-OEM
Certification:	ROHS
Model Number:	3.5m red sc apc to sc apc patch cords

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiable
Packaging Details:	PE bag
Delivery Time:	3~5 business days
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/day

Contact Now

Detailed Product Description

Product:	3.5m Red Sc Apc To Sc Apc Patch Cords	Fiber Type:	G657A2
Fiber Mode:	Single Mode	Connector:	SC/APC
Cable Jacket:	LSZH	Jacket Color:	Red
Cable Diameter:	1.6mm	Length:	3.5m
High Light:	1.6mm Single Mode Patch Cords , LSZH Single Mode Patch Cords , G657A2 Sc Apc To Sc Apc Cable

Compare with G657A1, G657A2 with smaller bending radius of 7.5mm, it offers flexible characteristics for easier deployment in streets, buildings and homes.It reduces the roll-out cost for operators and the total cost of ownership (TCO) of an FTTH network, it always come as 1.2/1.6/2.0/3.0mm with PVC or LSZH. UNIFIBER can customized make patch cords with different color jacket per customer's requirement.

Features:

Endface type: PC, APC,UPC

Cable number:duplex,simplex

Cable diameter:0.9mm,1.2mm,1.6mm,2.0mm,3.0mm......

Cable length: customized

Cable material: PVC,LSZH,OFNR,OFNP

Jacket Color:Aqua,Red or any others avaliable

Applications:
Telecommunication networks

Gigabit Ethernet
CATV, Video, Multimedia
Active device termination,

Premise installations
Industrial, Military

Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.
