Product Details:
Payment & Shipping Terms:
|
| Product: | Patch Cord SC/APC To SC/APC 3.0mm G657B3 | Connector: | SC/APC |
|---|---|---|---|
| Fiber Type: | G657B3 | Cable Jacket: | LSZH |
| Cable Diameter: | 3.0mm | Length: | 2M |
| Application: | FTTH | ||
| High Light: | G657B3 FTTH Optical Patch Cord,3.0mm FTTH Optical Patch Cord,2M SC/APC To SC/APC Patch Cable |
||

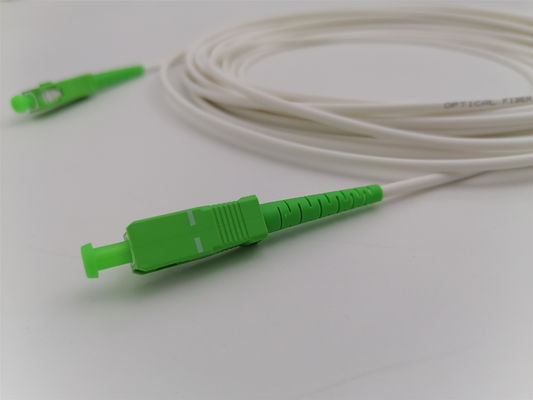

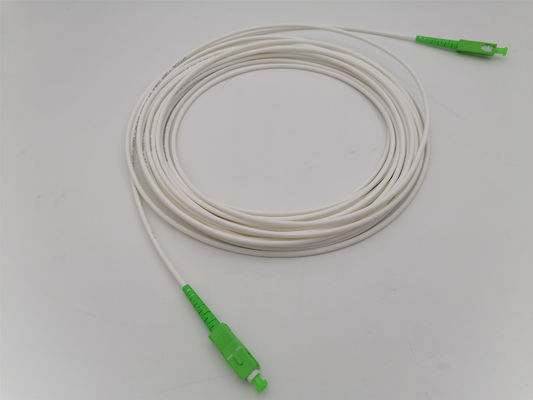

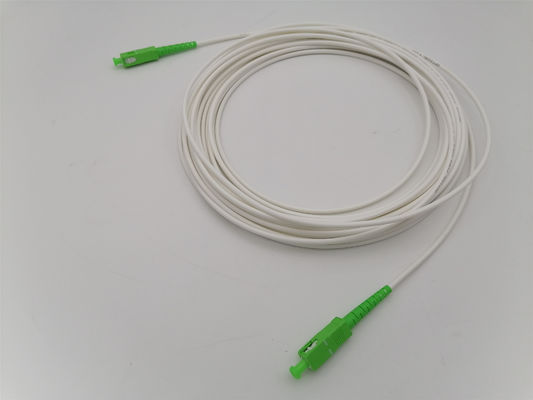

Patch Cord SC/APC to SC/APC 3.0mm G657B3 white LSZH 2M For FTTH
ITU-T G.657 optical fibre cable offers flexible characteristics for easier deployment in streets, buildings and homes.It reduces the roll-out cost for operators and the total cost of ownership (TCO) of an FTTH network. There are with G657A1,G657A2,G657B3, the minimum bending radius are 10mm,7.5mm and 5mm separetly.
Features:
Low insertion loss, high return loss
Small, light, high dense connection
Standard exact plastic material
High credibility and stability
Good in repeatability and exchangeability
Application:
FTTX Solution
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
| tem | Single Mode | Multimode | ||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/12510Gb | |
| Insert Loss(Single fiber) | 0.2dB Max.(0.15dB Typical) | 0.3dB Max.(0.25dB Typical) | ||||
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | PC≥35dB | ||
| Insert Loss/MTRJ Connector | 0.5dB Max.(0.45dB Typical) | 0.5dB Max. (0.45dB typ.) | ||||
| Pull Strength | ≥98N | ≥98N | ||||
