Product Details:
Payment & Shipping Terms:
|
| Product: | SC To LC Duplex Patch Cord | Fiber Type: | Multimode OM3 |
|---|---|---|---|
| Connector: | SC/LC | Cable Jacket: | LSZH |
| Jacket Color: | Aqua | Length: | 3M |
| High Light: | SC To LC Duplex Patch Cord,125um Duplex Patch Cord,2.0mm Multimode Patch Cord |
||

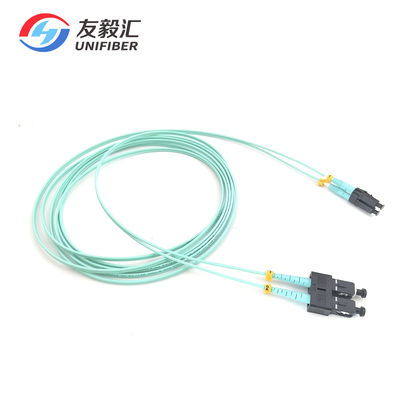

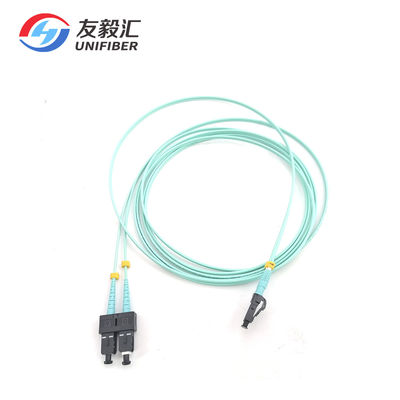

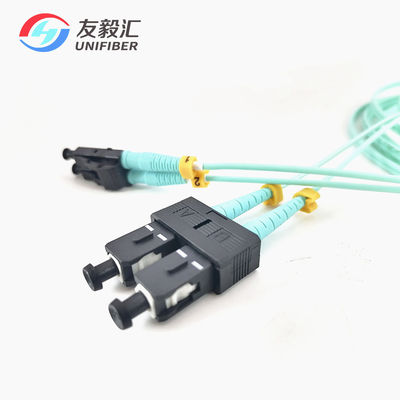

OM3 Multimode 50/125um SC to LC Duplex Patch Cord With Black Connector body 2.0mm 2M
Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.
Features:
100% tested on optical performance
Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request
Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
PC, UPC, APC connectors type available
High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
Available in G652D, G657A, OM1, OM2, OM3 and OM4
Position A/Position B markings
Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes
Application:
Telecom network
Ethernet network
Optical communication equipment
| Item | SM | MM | ||
| Link Type | FC/PC | FC/UPC | FC/APC | FC/PC |
| SC/PC | SC/UPC | SC/APC | SC/PC | |
| ST/PC | ST/UPC | ST/PC | ||
| LC/PC | LC/UPC | LC/PC | ||
| MU/PC | MU/UPC | MU/PC | ||
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB |
| Insertion Loss | ≤0.2dB | |||
| Operating Temperature | -40°C ~ +80°C | |||
| Repeatability | ≤0.1dB | |||
| Interchangeability | ≤0.2dB | |||
| Insertion and Pull Times | 1000 | |||
