Product Details:
Payment & Shipping Terms:
|
| Product: | Hinged Fiber Optic Splicing Closure 48 Core With 1*8/1*16 Mini PLC Splitters SC Adapters | Material: | PP+GF |
|---|---|---|---|
| Tray Capacity: | 48 | Sealing Type: | Mechanical Seal |
| Ports: | 2 Inlets, 2 Outlets, 16 Drop | Protection Grade: | IP55 |
| Installation: | Aerial | Application: | FTTH |
| Highlight: | 48core Fiber Optic Splice Closure,Hinged Fiber Optic Splice Closure,IP55 PLC Splitters Optical Closure |
||

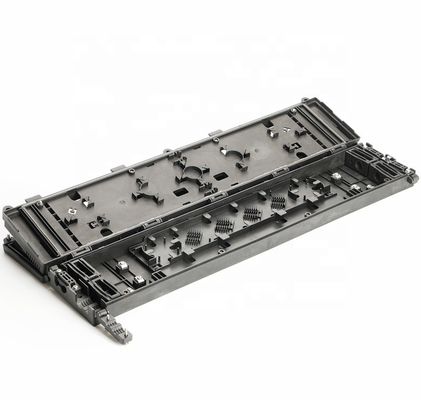

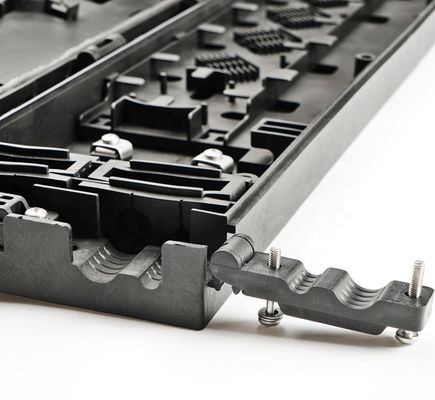

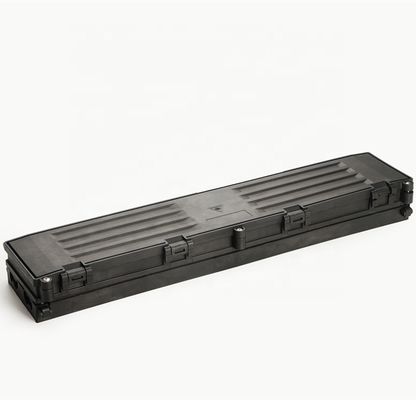

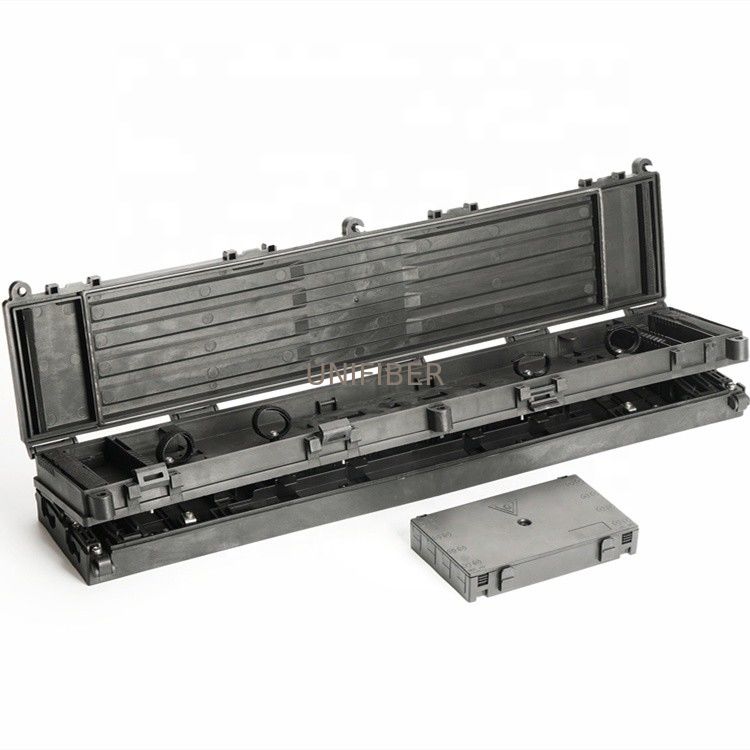

Hinged Fiber Optic Splicing Closure 48 Core features a vented structure of 2-layer function division. The upper layer is designed for fiber distribution, and the bottom layer for splice fusion. The cables are fixed by hinged buckles which ensures good fixing performance. The well structured fiber closure is of 2 inlets and 2 outlets, together with 16 drop ports. It is applicable to SC adapters and removable PLC splitters. The protection grade of this enclosure reaches IP55.
Features:
Ports: 2 inlets (Φ10 - Φ16 mm), 2 outlets (Φ10 - Φ16 mm), 16 drop ports (Φ2 * Φ3 mm)
Capacity: 48
Seal: Mechanical
Waterproof: IP55
Material: PP+GF
PLC splitter: 1*1:8/ 1*1:16, mini type
Adapters: SC, 18 PCS
Application:
aerial
Specification:
