Product Details:
Payment & Shipping Terms:
|
| Product: | 24 Fiber MPO LGX Cassette Module | Fiber Counts: | 24 Fiber |
|---|---|---|---|
| Connector B: | LC Duplex | Fiber Mode: | Multimode OM3 |
| Cassette Material: | Metal | Color: | Black |
| High Light: | 24fiber MPO LGX Cassette Module,OM3 MPO LGX Cassette Module,10G Duplex LC MPO Cassette |
||

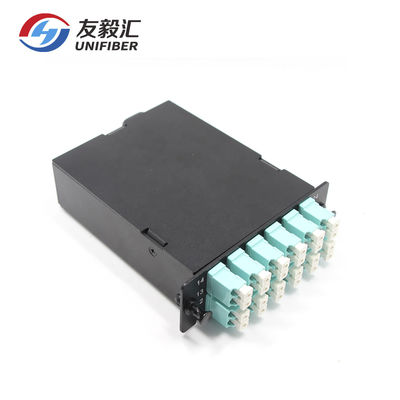

Fully Loaded 24 Fiber MPO LGX Cassette Module 10G OM3 Duplex LC
MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 4U 19” multislot chassis.MPO Cassettes contain factory controlled and tested MPO-LC fan-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
Features
High-density and small desing, Easy and fast installation
Available in 12/24/48 fiber versions.
Field connections with guaranteed quality and simplifies fiber routing.
Modular system management, easy reconfiguration for moves, adds and changes.
Customized fiber polarity in the module.
Application
Machine rooms of data center and internet
Data communication network
Optical system access network
Storage area networking fiber channel
High density architectures
| Fiber Type | Single Mode | Multi-mode | |
| Standard Insertion Loss | Typical(dB) | ≤0.7 | ≤0.5 |
| Low Insertion Loss | Typical(dB) | ≤0.35 | ≤0.35 |
| Return Loss (dB) | ≥60(APC) | ≥30(PC) | |
| ≥50(PC) | |||
| Tensile Strength (kgf) | 10 | ||
| Durability(dB) | ≤0.2 500 matings | ||
| Working Temperature(ºC) | -40 ~+85 | ||
| Testing Wavelength (nm) | 1310/1550 | 850 | |
