| Product: | 1152 Core Outdoor Fiber Optic Joint Enclosure Box | Max Capacity: | 1152F |
|---|---|---|---|
| Max Splitting: | 1:8 (4 Pcs) / 1：16（4 P C S）+1：3 2（1pc) | Max Tray Number: | 16 |
| Tray Capacity: | 72F | Cable Diameter(mm): | Φ7-Φ27 |
| Size (mm): | Φ325×510 | Cable Inlet / Outlet: | 9 In / 9 Out |
| Sealing Type: | Heat Shrinkable Tube, Silicon Rubber | Mounting Type: | Wall/Pole Mounting |
| High Light: | 1152core Fiber Optic Joint Enclosure,72F Fiber Optic Joint Enclosure,FTTH Dome Fiber Distribution Box |
||

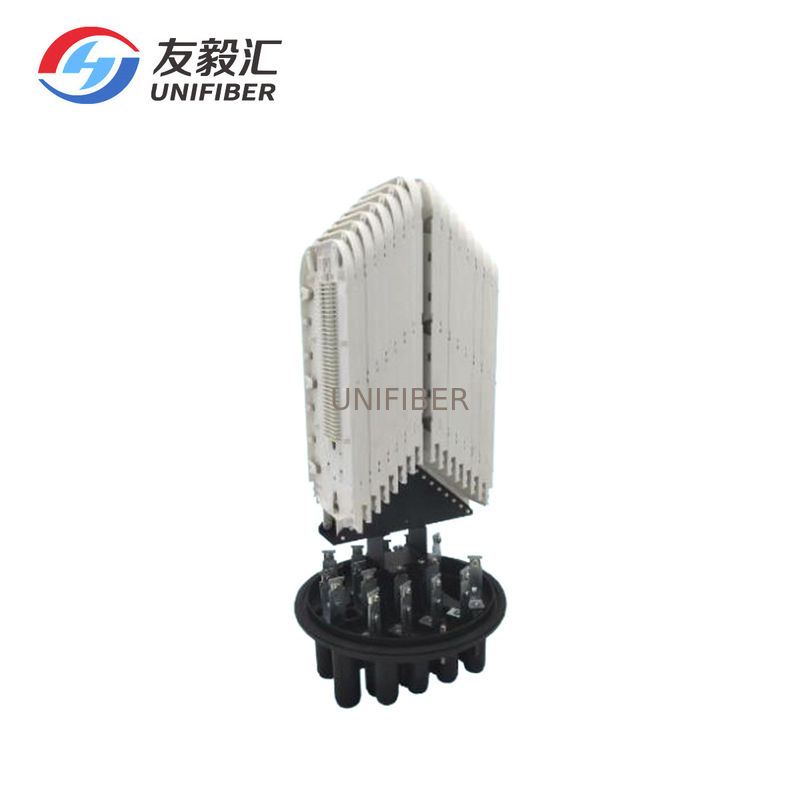

1152 core outdoor dome fiber optic joint enclosure box Heat shrink sealing has 16 circular cable entry hole and one oval hole, adopt the heat shrinkable seal,Can be used for aerial, pole and wall mounting; Good sealing performance, simple installation, it is the best option for the optical fiber connection.
Feature:
Adapter rack can be installed for optical splitting;

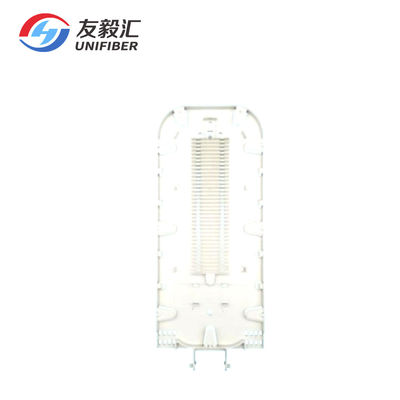

Special PLC slot in the splice tray provides flexible selection of splitting or direct splicing.

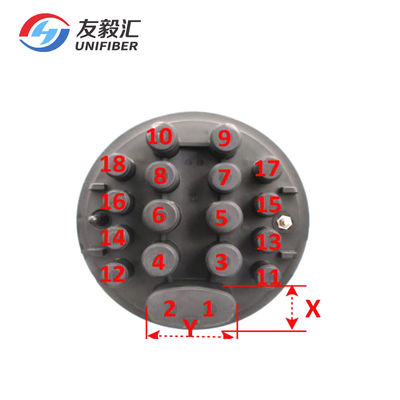

Meet the nine-in and nine-out cable connection, there are 17 cable holes (17 round & 1 oval), which suit for the access ofΦ7-Φ27 mm cables;
The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
Stacked structure splice tray and independent insulation grounding device make it flexible, convenient and safe for the optical fiber core configuration, expansion and the cable grounding;
Application
Local area networks
Wide area networks
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Specification:
| Dimensions (mm) | Φ325×510 | Packing dimension | 530×330×310mm |
| Weight(Kg) | 12.5 | QTY | 1 pcs |
| Cable inlet/outlet | 9/9 | CBM | 0.055(m³) |
| Cable diameter(mm) | Φ7-Φ27 | Gross weight | 12.5(Kg) |
| Tray capacity | 72(single core) | Other information | |
| Max tray number | 16 | Fiber storage unit | None |
| Max core capacity | 1152(single core) | Mounting type | Wall mounting(standard) |
| Max splitting | 1:8 (4 pcs) / 1:16(4 p c s)+1:3 2(1pc) | ||
| Sealing type | Heat shrink ＆ Silicone rubber | Pole mounting(optional) | |
